Sirius Lite High Bay (90°) 120W-200W 180lm/W Selectable Outputs

ELSL6
Sirius Lite High Bay (90°) 120W-200W 180lm/W Selectable Outputs
POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm

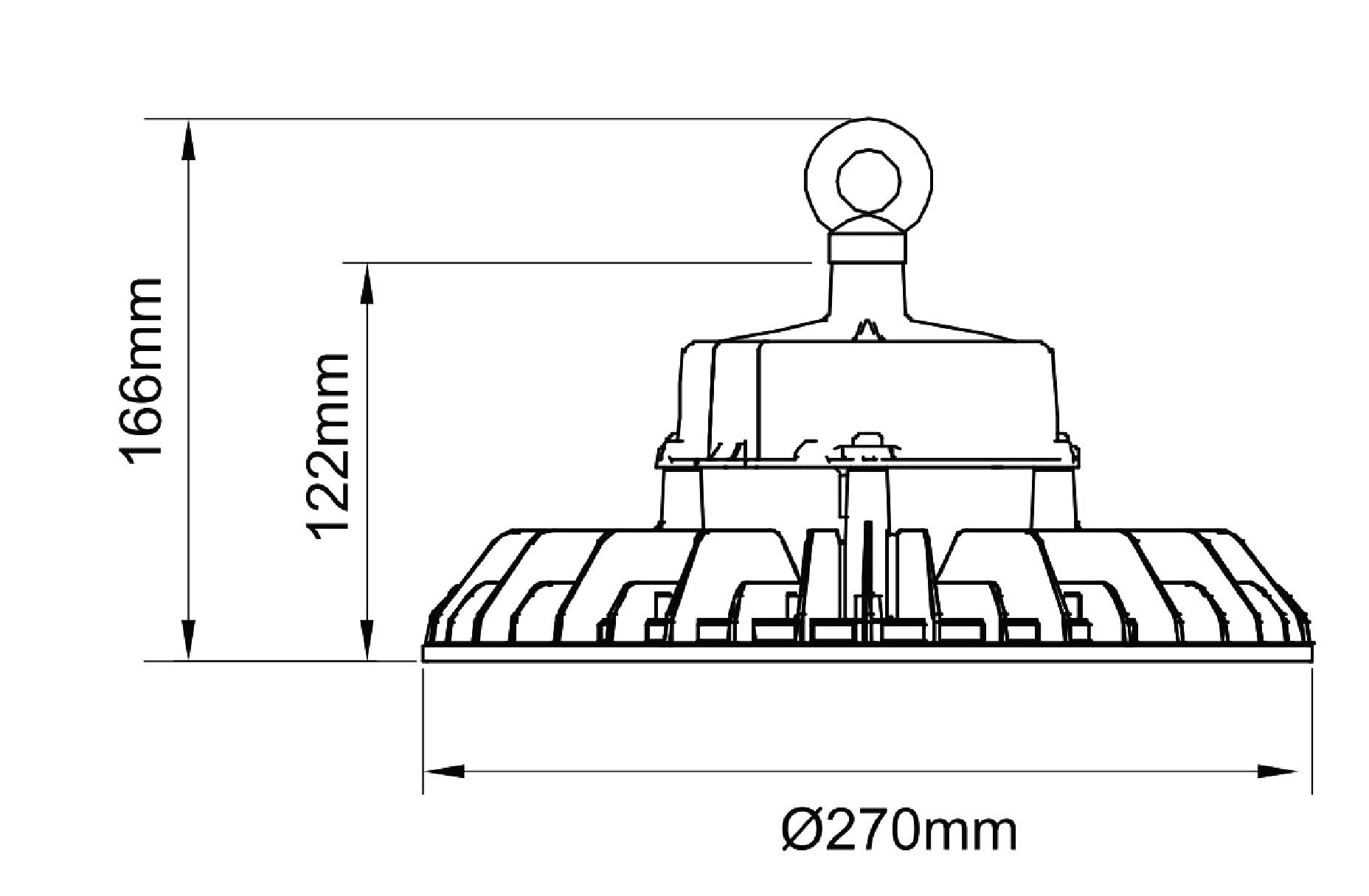

DIMENSIONS
KEY FEATURES

The Sirius Lite is incredibly efficient at 180lm/W, making it bright and cost-effective to operate. Its 3 selectable power outputs make the Sirius Lite a flexible offering. Comes with 300mm mains cable. Ideal for mounting heights ranging between 5-14 meters, the Sirius Lite suits a diverse array of industrial applications. It is also compatible with the optional use of a 3 hour maintained emergency kit.

• Astounding 180lm/W efficiency

• 3 Selectable power outputs

• Standard and Self Test emergency available

• Optional reflector available

The Sirius VI range of LED High Bays delivers powerful, high-efficiency lighting for demanding industrial and commercial environments. Featuring up to 200lm/W efficacy, selectable power outputs, emergency and sensor compatibility, plus multiple versions including Lite, DALI2, Pro and Pro CCT, the Sirius VI range offers a flexible solution for warehouses, factories and large-scale applications.

 • Upto 200lm/W efficiency

 • 3 Selectable power outputs

 • Standard and Self Test emergency available

 • Plug and Play PIR sensor technology available

 • Optional reflector available

Commercial applications

Warehouses, factories, sports arenas, sports halls, retail outlets

Warehouses, factories, sports arenas, sports halls, retail outlets

PRODUCT DATA
PRODUCT CODE
ELSL6
LUMENS (lm)
36000
lm
LUMEN RANGE (lm)
36000
lm
DIMMABLE
WATTAGE (W)
120-200W
COLOUR TEMPERATURE (K)
4000
EMERGENCY
WEIGHT (kg)
MICROWAVE
BEAM ANGLE
90°
CRI
>80
REPLACEMENT FOR
400W MH SON
DIMENSIONS (mm)
φ270×166mm
PRODUCT TYPE
EFFICIENCY (lm/w)
180lm/W
RATED LIFETIME (hrs)
60,000hrs
IP
65
IK
09
HOUSING COLOUR
RAL9017
WORKING ENVIRONMENT
-30°C to 40°C
WARRANTY
5yrs
L70 RATING (hrs)
100000
DAYLIGHT HARVESTING
ON/OFF SENSOR
PIR

Sirius Lite High Bay (90°) 120W-200W 180lm/W Selectable Outputs

ELSL6
Sirius Lite High Bay (90°) 120W-200W 180lm/W Selectable Outputs
Lumen output
Lumen output
Lumen Efficiency
Lumen Efficiency
Beam Angle
Beam Angle
Warranty
Warranty
KEy Features

The Sirius Lite is incredibly efficient at 180lm/W, making it bright and cost-effective to operate. Its 3 selectable power outputs make the Sirius Lite a flexible offering. Comes with 300mm mains cable. Ideal for mounting heights ranging between 5-14 meters, the Sirius Lite suits a diverse array of industrial applications. It is also compatible with the optional use of a 3 hour maintained emergency kit.

• Astounding 180lm/W efficiency

• 3 Selectable power outputs

• Standard and Self Test emergency available

• Optional reflector available

The Sirius VI range of LED High Bays delivers powerful, high-efficiency lighting for demanding industrial and commercial environments. Featuring up to 200lm/W efficacy, selectable power outputs, emergency and sensor compatibility, plus multiple versions including Lite, DALI2, Pro and Pro CCT, the Sirius VI range offers a flexible solution for warehouses, factories and large-scale applications.

 • Upto 200lm/W efficiency

 • 3 Selectable power outputs

 • Standard and Self Test emergency available

 • Plug and Play PIR sensor technology available

 • Optional reflector available

Commercial applications

Warehouses, factories, sports arenas, sports halls, retail outlets

Warehouses, factories, sports arenas, sports halls, retail outlets

PHOTOMETRIC (LDT) FILES
Spacing Guidance
info alert icon
Notice for Microsoft Edge users
Download PDF
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
Light source data
INSTALLATION instructions
INSTALLATION instructions
LUMEN OUTPUT (lm)
36000
LUMEN OUTPUT RANGE (lm)
36000
HIGHEST LUMEN OUTPUT (lm)
36000
DIMMABLE
PIR
WATTAGE (W)
120-200W
COLOUR TEMPERATURE (K)
4000
EMERGENCY
WEIGHT (kg)
MICROWAVE
BEAM ANGLE
90°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
φ270×166mm
PRODUCT TYPE
EFFICIENCY (lm/W)
180lm/W
RATED LIFETIME (hrs)
60,000hrs
IP-RATING
65
IK-RATING
09
INPUT VOLTAGE
220-240V
WORKING ENVIRONMENT
-30°C to 40°C
POWER FACTOR
0.9
L70 RATING (hrs)
100000
DAYLIGHT HARVESTING
WARRANTY
5yrs
ENERGY CLASS. OF LIGHT SOURCE
A
HOUSING COLOUR
RAL9017
ON/OFF SENSOR
LOW GLARE
YES
FLICKER FREE
YES
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
Sirius Lite High Bay (90°) 120W-200W 180lm/W Selectable Outputs
