Novah Ltd | Specialists in LED Lighting | Solray Select III 4ft LED Batten 20-34W 3CCT

Product code:

EL4SR3B

Solray Select III 4ft LED Batten 20-34W 3CCT

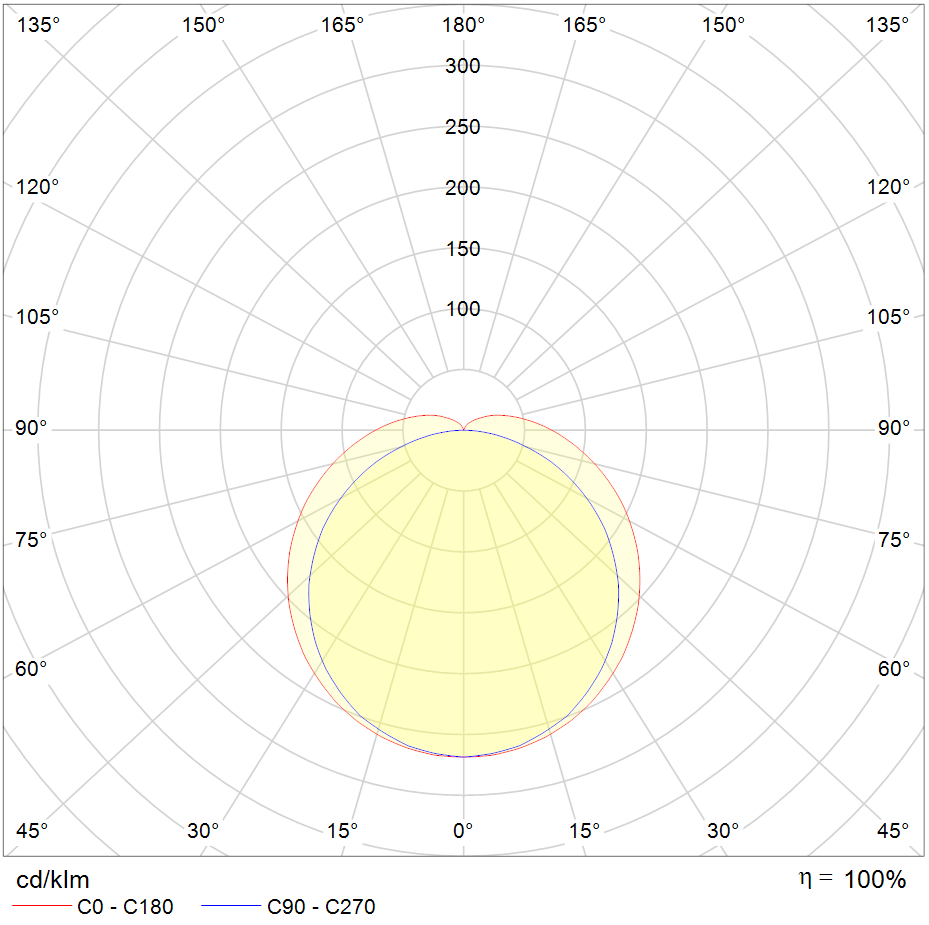

POLAR CURVE DIAGRAM

Polar Curve Image

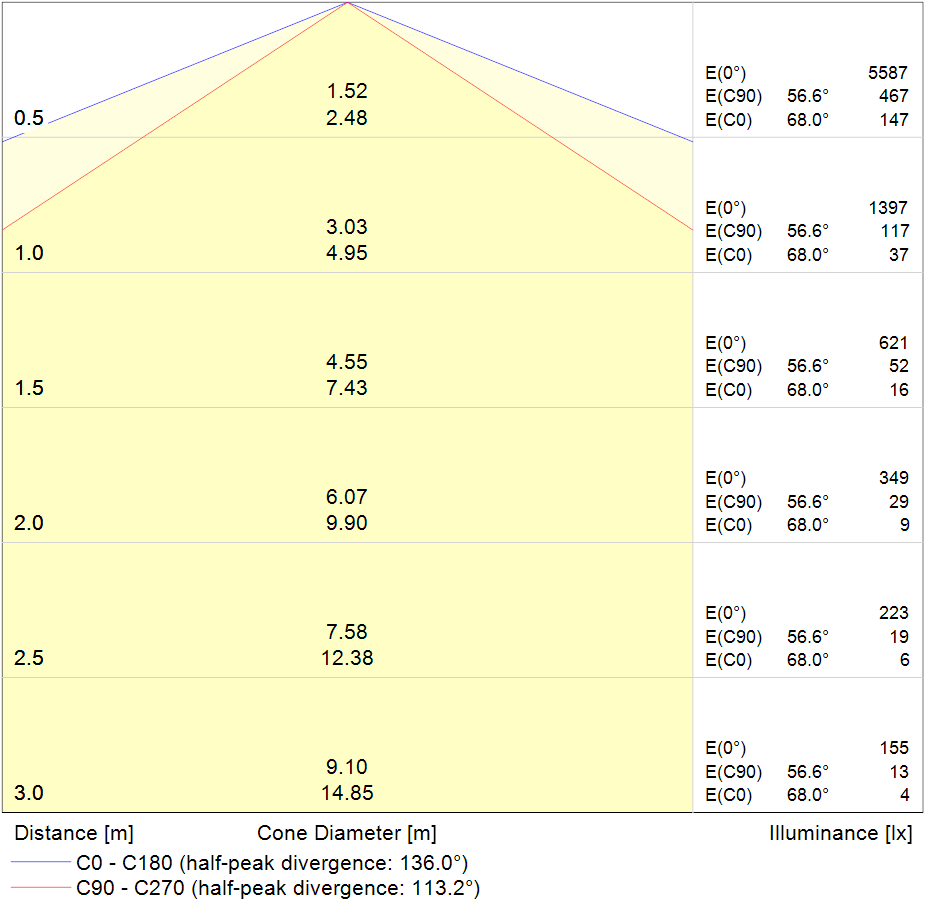

CONE DIAGRAM

Cone Diagram

SELECTABLE SETTINGS

WATTAGE

LUMENS

20

W

3200

lm

25

W

3900

lm

30

W

4600

lm

34

W

5200

lm

DIMENSIONS

KEY FEATURES

Perfect for new installations and like-for-like replacements, this batten allows power and colour selections. It also allows the client to choose the light level that they require during the installation process.

This exciting development means that the Solray Select is equivalent to both Single and Twin T5 Fluorescent Tubes with lumen range of 3200-5200 lumens. With flicker free operation, BESA mounting and M20 cable entry allow for multiple installation options.

The Solray Batten has been designed to replace traditional tubes AND their fittings. Versatile and easy to install via various surface mount or cable options, the Solray is ideal for a wide range of applications.

• 4 selectable output settings

• 3 selectable colour temperature options

• Self test quick ‘Plug ‘n’ Play’ emergency pack

• Microwave on/off and DALI-2 solutions available

• Up to 193lm/W efficiency

• 5 year warranty

Commercial applications

Offices, school classrooms, corridors, medical centres

Offices, schools, corridors, medical centres.

PRODUCT DATA

PRODUCT CODE

EL4SR3B

LUMENS (lm)

5200

LUMEN RANGE (lm)

3200lm - 5200lm

DIMMABLE

WATTAGE (W)

20-34W

COLOUR TEMPERATURE (K)

3CCT (3/4/5700K)

EMERGENCY

WEIGHT (kg)

1.3kg

MICROWAVE

BEAM ANGLE

110° x 130°

CRI

>85

REPLACEMENT FOR

Single or Twin T8 36W 4ft and Single or twin T5 54W 4ft

DIMENSIONS (mm)

1200 x 65 x 77mm

PRODUCT TYPE

EFFICIENCY (lm/w)

Up to 160lm/W

RATED LIFETIME (hrs)

50,000hrs

IP

20

IK

HOUSING COLOUR

RAL9003

WORKING ENVIRONMENT

-20°C to 35°C

WARRANTY

5 year

L70 RATING (hrs)

>80000hrs

DAYLIGHT HARVESTING

ON/OFF SENSOR

PIR

Back to overview

Product code:

EL4SR3B

Solray Select III 4ft LED Batten 20-34W 3CCT

Lumen Range

Wattage

Colour Temperature

Colour Temperature

Warranty

Switchable output

Switchable output

KEy Features

Perfect for new installations and like-for-like replacements, this batten allows power and colour selections. It also allows the client to choose the light level that they require during the installation process.

This exciting development means that the Solray Select is equivalent to both Single and Twin T5 Fluorescent Tubes with lumen range of 3200-5200 lumens. With flicker free operation, BESA mounting and M20 cable entry allow for multiple installation options.

The Solray Batten has been designed to replace traditional tubes AND their fittings. Versatile and easy to install via various surface mount or cable options, the Solray is ideal for a wide range of applications.

• 4 selectable output settings

• 3 selectable colour temperature options

• Self test quick ‘Plug ‘n’ Play’ emergency pack

• Microwave on/off and DALI-2 solutions available

• Up to 193lm/W efficiency

• 5 year warranty

Commercial applications

Offices, school classrooms, corridors, medical centres

Offices, schools, corridors, medical centres.

PHOTOMETRIC (LDT) FILES

Spacing Guidance

Notice for Microsoft Edge users

PRODUCT DATA SHEET PDF

Notice for Microsoft Edge users

Light source data

INSTALLATION instructions

INSTALLATION instructions

LUMEN OUTPUT (lm)

5200

LUMEN OUTPUT RANGE (lm)

3200lm - 5200lm

HIGHEST LUMEN OUTPUT (lm)

5200

DIMMABLE

PIR

WATTAGE (W)

20-34W

COLOUR TEMPERATURE (K)

3CCT (3/4/5700K)

EMERGENCY

WEIGHT (kg)

1.3kg

MICROWAVE

BEAM ANGLE

110° x 130°

WINDAGE

CRI

>85

REPLACEMENT FOR

Single or Twin T8 36W 4ft and Single or twin T5 54W 4ft

DIMENSIONS (mm)

1200 x 65 x 77mm

PRODUCT TYPE

EFFICIENCY (lm/W)

Up to 160lm/W

RATED LIFETIME (hrs)

50,000hrs

IP-RATING

20

IK-RATING

INPUT VOLTAGE

220-240Vac (50/60Hz)

WORKING ENVIRONMENT

-20°C to 35°C

POWER FACTOR

L70 RATING (hrs)

>80000hrs

DAYLIGHT HARVESTING

WARRANTY

5 year

ENERGY CLASS. OF LIGHT SOURCE

HOUSING COLOUR

RAL9003

ON/OFF SENSOR

LOW GLARE

YES

FLICKER FREE

YES

SWITCHABLE OUTPUT

YES

WATTAGE

LUMENS

20

W

3200

lm

25

W

3900

lm

30

W

4600

lm

34

W

5200

lm

W

lm

W

lm

W

lm

W

lm

Solray Select III 4ft LED Batten 20-34W 3CCT
