Onyx 200W flood

EL200X2F
PRODUCT DATA
LUMENS (lm)
24000
lm
DIMMABLE
WATTAGE (W)
200W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
4.77kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
500W MH/SON
DIMENSIONS (mm)
439x346x56mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
120lm/W
RATED LIFETIME (hrs)
25,000hrs
IP
65
IK
HOUSING COLOUR
WORKING ENVIRONMENT
-20°C - 40°C
WARRANTY
2
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

This is a powerful flood which is suitable for a wide range of industrial applications. With 24000 lumen output, it makes a perfect replacement for a 500W MH/SON

Commercial applications

For external use on: Warehouses, factories, sports facilities, retail outlets, car-parks, construction sites, footpaths, parks, loading bays. Not suitable for swimming pool areas or for use as a low bay or high bay - please contact us for information on our products which are suitable.

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

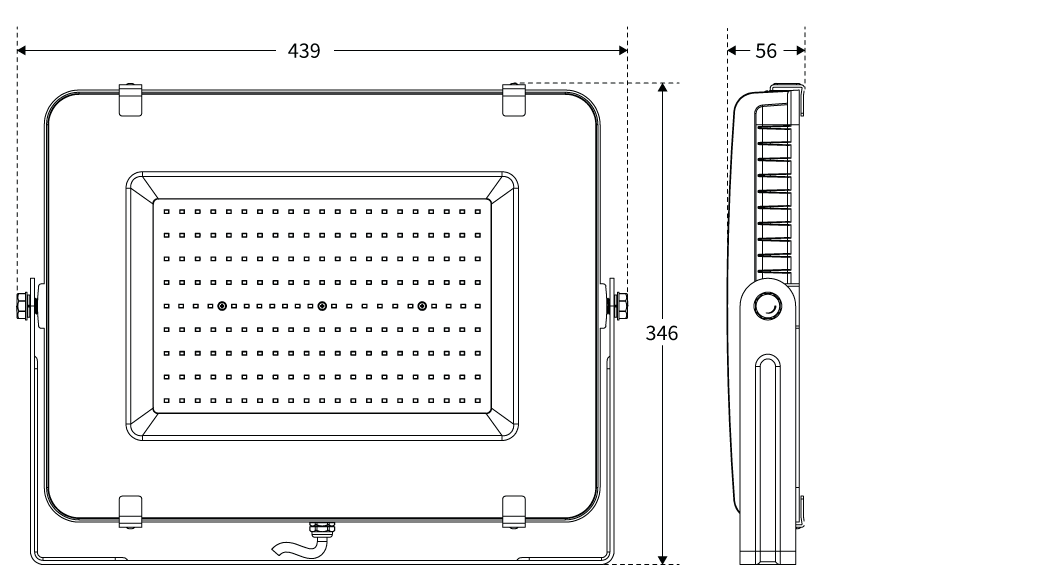

DIMENSIONS

Onyx 200W flood

Onyx Standard Flood
Lumen output
Lumen output
Colour Temperature
Colour Temperature
Wattage
Wattage
IP Rating
IP Rating
Warranty
Warranty
KEy Features

This is a powerful flood which is suitable for a wide range of industrial applications. With 24000 lumen output, it makes a perfect replacement for a 500W MH/SON

Commercial applications

For external use on: Warehouses, factories, sports facilities, retail outlets, car-parks, construction sites, footpaths, parks, loading bays. Not suitable for swimming pool areas or for use as a low bay or high bay - please contact us for information on our products which are suitable.

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
24000
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
200W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
4.77kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
DIMENSIONS (mm)
439x346x56mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
120lm/W
RATED LIFETIME (hrs)
25,000hrs
IP-RATING
65
IK-RATING
WORKING ENVIRONMENT
-20°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
2
HOUSING COLOUR
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
