Horizon Select UGR Tp(a) Panel + Power Selectable
POLAR CURVE DIAGRAM
CONE DIAGRAM
SELECTABLE SETTINGS

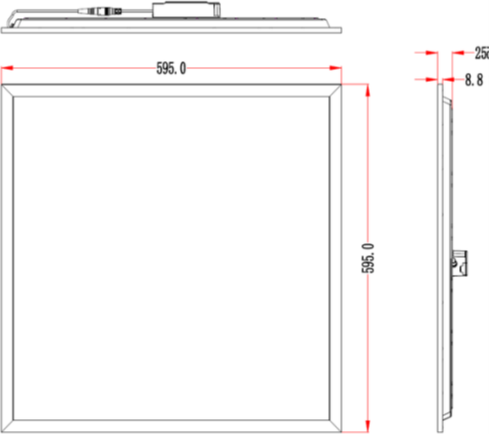

DIMENSIONS
KEY FEATURES
The Horizon Panel is a high-efficiency, long-life LED panel designed to provide consistent, even illumination across a wide range of commercial and public-sector environments.
Offering a high efficacy of 150lm/W and a UGR19 rating, it provides an efficient and comfortable lighting solution for applications where quality and performance are important. The 595 x 595mm backlit design makes it ideal for replacing traditional fluorescent luminaires and for retrofit installations.
The panel features a TP(a) diffuser, SDCM <3 colour consistency and IP54 protection, making it a versatile solution for offices, schools, healthcare environments, corridors, communal areas and other commercial applications.
With a 100,000-hour L80B10 rated lifetime and 5-year warranty, the Horizon Panel provides a reliable, long-term lighting solution for demanding projects.
Compatible with Horizon emergency packs (ELKEL3K), the panel can be specified with emergency functionality, providing an emergency mode output of 430lm.
Novah offer a full range of 5 year warranty and flicker-free panels incorporating UGR, TP(a) and TP(b). Our Horizon Select allows for a range of light outputs to give flexibility and versatility over the life of the panel and also ESOS targets to be easily met year after year. The Novah Horizon panels are designed to meet with technically rigorous specifications for every application.
• High efficiency up to 180lm/W
• Selectable output and colour temperature model available
• Self test / DALI emergency conversion kit available
• DALI / Switch Dim Options available
• 5 year warranty
Commercial applications
Offices, restaurants, service zones, medical centres, hospitals, corridors, communal areas, public transport buildings, schools and universities, government facilities.
Offices, restaurants, service zones, medical centres, corridors, communal areas, public transport buildings, schools and universities, government facilities
