Novah Ltd | Specialists in LED Lighting | Barracuda 6ft 65W Non-Corrosive with emergency function and DALI Dimmable

EL6BNCDE

PRODUCT DATA

LUMENS (lm)

8450

lm

DIMMABLE

DALI

WATTAGE (W)

65W

COLOUR TEMPERATURE (K)

4000K

EMERGENCY

Emergency

WEIGHT (kg)

2.95kg

MICROWAVE

BEAM ANGLE

160°

WINDAGE

CRI

>80

REPLACEMENT FOR

Single/Twin 6ft T8 Tube

DIMENSIONS (mm)

1800x100x82mm

PRODUCT TYPE

Non-corrosives

EFFICIENCY (lm/w)

up to 130lm/W

RATED LIFETIME (hrs)

50,000hrs

IP

66

WORKING ENVIRONMENT

-5°C - 30°C

L70 RATING (hrs)

DAYLIGHT HARVESTING

ON/OFF SENSOR

KEY FEATURES

The Barracuda 6ft 65W with emergency function and DALI Dimmable is lightweight and strong with anti-tamper, stainless steel clips and screws supplied. This product can be fitted in a wide range of industrial and commercial applications as its IP66 and IK08 ratings will ensure that it works in extreme environments.

Commercial applications

Public areas, workshops, warehouses, carparks and food preperation areas

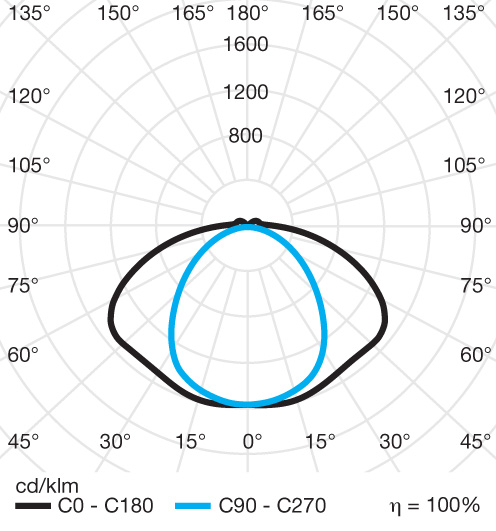

POLAR CURVE DIAGRAM

Polar Curve Image

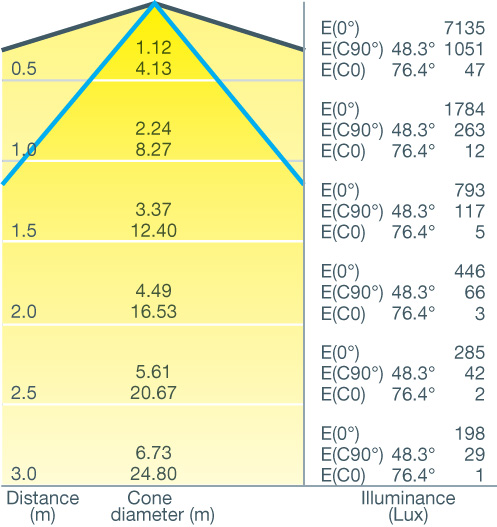

CONE DIAGRAM

Cone Diagram

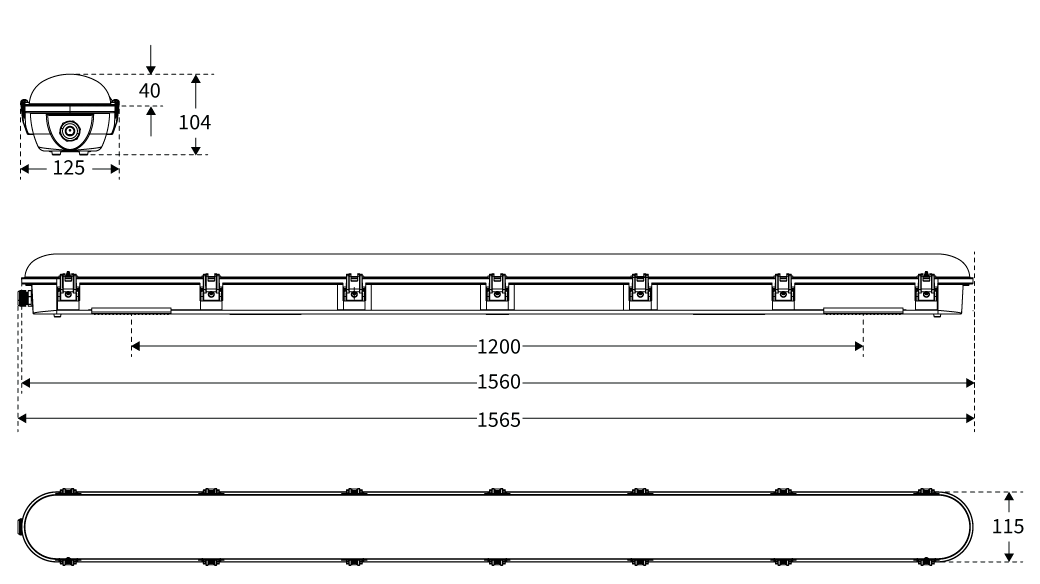

DIMENSIONS

Back to overview

Barracuda Select Non-Corrosive Linear Fitting

Lumen Range

Colour Temperature

Colour Temperature

IP Rating

Emergency

KEy Features

The Barracuda 6ft 65W with emergency function and DALI Dimmable is lightweight and strong with anti-tamper, stainless steel clips and screws supplied. This product can be fitted in a wide range of industrial and commercial applications as its IP66 and IK08 ratings will ensure that it works in extreme environments.

Commercial applications

Public areas, workshops, warehouses, carparks and food preperation areas

PHOTOMETRIC (LDT) FILES

PRODUCT DATA SHEET PDF

Notice for Microsoft Edge users

INSTALLATION instructions

LUMEN OUTPUT (lm)

8450

LUMEN OUTPUT RANGE (lm)

8450LM

DIMMABLE

DALI

WATTAGE (W)

65W

COLOUR TEMPERATURE (K)

4000K

EMERGENCY

Emergency

WEIGHT (kg)

2.95kg

MICROWAVE

BEAM ANGLE

160°

WINDAGE

CRI

>80

REPLACEMENT FOR

Single/Twin 6ft T8 Tube

DIMENSIONS (mm)

1800x100x82mm

PRODUCT TYPE

Non-corrosives

EFFICIENCY (lm/w)

up to 130lm/W

RATED LIFETIME (hrs)

50,000hrs

IP-RATING

66

WORKING ENVIRONMENT

-5°C - 30°C

L70 RATING (hrs)

DAYLIGHT HARVESTING

WARRANTY

5

ON/OFF SENSOR

Also available in this range

Product code

Product name

Wattage

Lumens

Colour temp.

Replacement for

Barracuda 2ft 20W

Twin 2ft T5/T8 2x18W Tube

Barracuda Select 4ft 20-35W

Single/Twin 4ft T8 Tube

Barracuda Select 4ft 20-35W with Emergency function

Single/Twin 4ft T8 Tube

Barracuda Select 4ft 20-35W with Microwave ON/OFF sensor

Single/Twin 4ft T8 Tube

Barracuda Select 4ft 20-35W with Emergency function and Microwave ON/OFF sensor

Single/Twin 4ft T8 Tube

Barracuda Select 4ft 35W DALI Dimmable

Single/Twin 4ft T8 Tube

Barracuda Select 4ft 35W DALI Dimmable with Emergency function

Single/Twin 4ft T8 Tube

Barracuda Select 4ft 35W DALI Dimmable with Emergency self test function

Single/Twin 4ft T8 Tube

Barracuda Select 5ft 28-50W

Single/Twin 5ft T8 Tube

Barracuda Select 5ft 28-50W with Emergency function

Single/Twin 5ft T8 Tube

Barracuda Select 5ft 28-50W with Microwave ON/OFF sensor

Single/Twin 5ft T8 Tube

Barracuda Select 5ft 28-50W with Emergency function and Microwave ON/OFF sensor

Single/Twin 5ft T8 Tube

Barracuda Select 5ft 50W DALI Dimmable

Single/Twin 5ft T8 Tube

Barracuda Select 5ft 28-50W DALI Dimmable with Emergency function

Single/Twin 5ft T8 Tube

Barracuda Select 5ft 28-50W DALI Dimmable with Emergency self test function

Single/Twin 5ft T8 Tube

Barracuda Select High Output 5ft 34-63W

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 34-63W with Emergency function

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 34-63W with Microwave ON/OFF sensor

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 34-63W with Emergency function and Microwave ON/OFF sensor

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 63W DALI Dimmable

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 63W DALI Dimmable with Emergency function

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 63W DALI Dimmable with Emergency self test function

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 34-63W (5000K)

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 34-63W (5000K) with Emergency function

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 34-63W (5000K) with microwave ON/OFF sensor

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 34-63W (5000K) with microwave ON/OFF sensor and emergency function

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 63W (5000K) DALI Dimmable

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 63W (5000K) DALI Dimmable with Emergency function

Single/Twin 6ft T8 Tube

Barracuda Select High Output 5ft 63W (5000K) DALI Dimmable with Emergency self test function

Single/Twin 6ft T8 Tube

Barracuda 6ft 65W Non-Corrosive

Single/Twin 6ft T8 Tube

Barracuda 6ft 65W Non-Corrosive with emergency function

Single/Twin 6ft T8 Tube

Barracuda 6ft 65W Non-Corrosive with microwave ON/OFF

Single/Twin 6ft T8 Tube

Barracuda 6ft 65W Non-Corrosive with emergency function and microwave ON/OFF

Single/Twin 6ft T8 Tube

Barracuda 6ft 65W Non-Corrosive DALI Dimmable

Single/Twin 6ft T8 Tube

Barracuda 6ft 65W Non-Corrosive with emergency function and DALI Dimmable

Single/Twin 6ft T8 Tube

Barracuda 6ft 65W Non-Corrosive with emergency self test function and DALI Dimmable

Single/Twin 6ft T8 Tube
