AVA Asymmetric LED 150W Flood Light

AVA Asymmetric LED 150W Flood Light
EL150AF
AVA Asymmetric LED 150W Flood Light
PRODUCT DATA
PRODUCT CODE
EL150AF
lm
LUMENS (lm)
22500
lm
DIMMABLE
WATTAGE (W)
150W
COLOUR TEMP. (K)
5000K
EMERGENCY
WEIGHT (kg)
3.7kg
MICROWAVE
BEAM ANGLE
120˚ x 60˚
WINDAGE
0.10m2
CRI
>70
REPLACEMENT FOR
400W MH/SON
DIMENSIONS (mm)
318x343x65mm
PRODUCT TYPE
EFFICIENCY (lm/w)
150lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
66
IK
08
HOUSING COLOUR
Grey ; RAL9006
WORKING ENVIRONMENT
-30˚C - 40˚C
WARRANTY
5yrs
L70 RATING (hrs)
120,000hrs
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

Our Ava range of asymmetric flood lights are both robust and efficient (150lm/W) and feature a 120˚ x 60˚ asymmetric beam angle to ensure the light spread is focused where needed, whilst minimising light pollution in the surrounding areas. All Ava floods come with a 5 year warranty, IP66 ingress protection featuring our heavy duty powder coated finish and are supplied with a mounting bracket enabling 270˚ rotation. The Ava floods are supplied with 1.5m of mains cable for easy installation and include our breathable gasket technology to further extend the life of the chips and driver. The floods also have a wide input voltage range of 220-240V AC making them suitable for commercial and industrial use.  Ava floods can also be upgraded to coastal marine grade using our upgrade kit (Code: LL006).

Commercial applications

For external use on: Warehouses, factories, sports grounds and facilities including swimming pools, retail outlets, carparks, residential estates, airports, rail and bus stations, construction sites, footpaths, parks, loading bays.

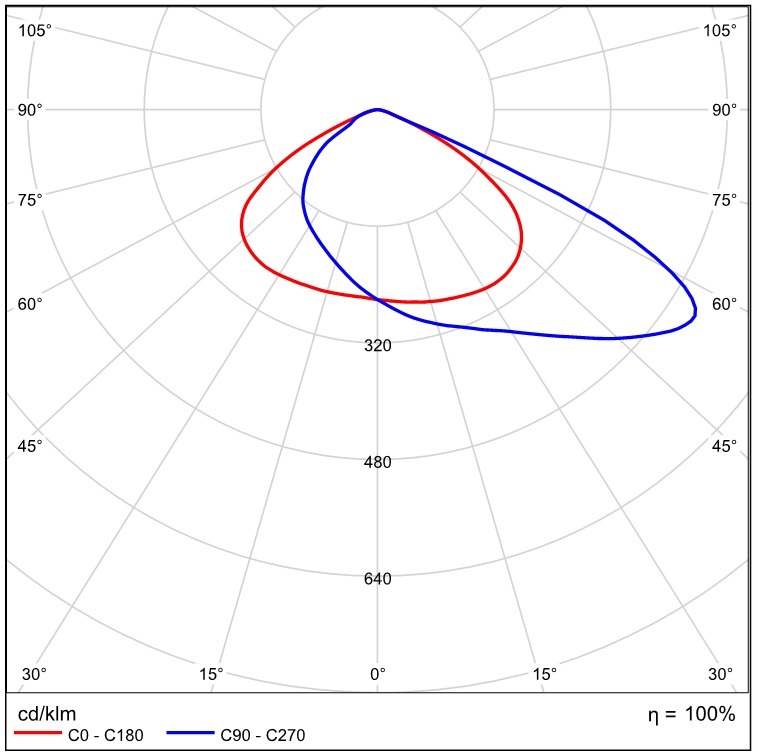

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

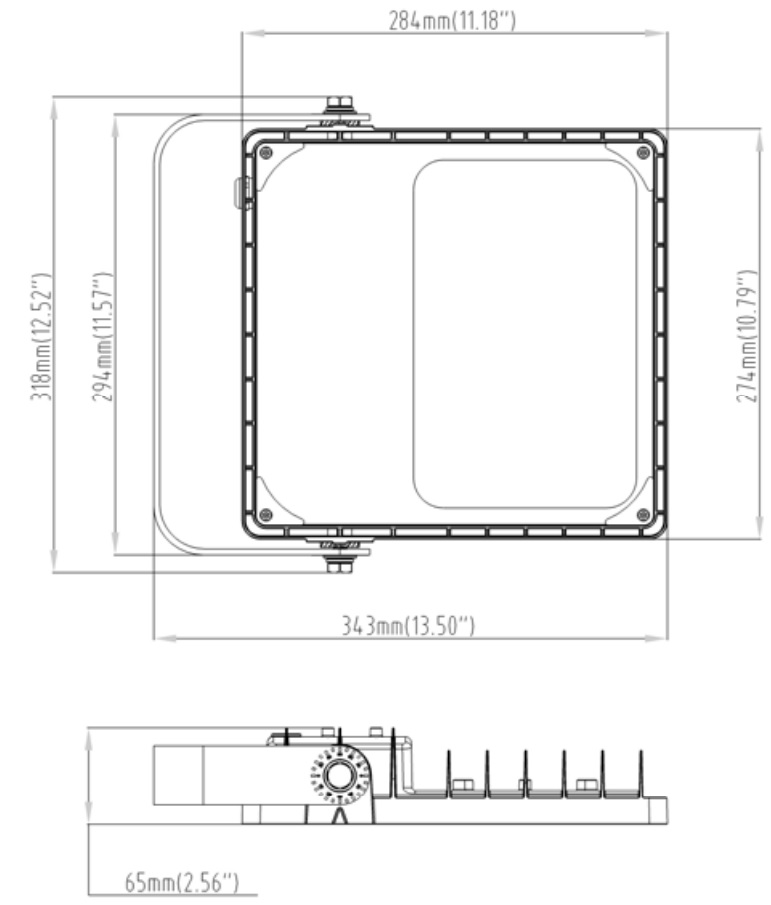

DIMENSIONS
EL150AF
AVA Asymmetric LED 150W Flood Light
Lumen output
Lumen output
Beam Angle
Beam Angle
Warranty
Warranty
KEy Features

Our Ava range of asymmetric flood lights are both robust and efficient (150lm/W) and feature a 120˚ x 60˚ asymmetric beam angle to ensure the light spread is focused where needed, whilst minimising light pollution in the surrounding areas. All Ava floods come with a 5 year warranty, IP66 ingress protection featuring our heavy duty powder coated finish and are supplied with a mounting bracket enabling 270˚ rotation. The Ava floods are supplied with 1.5m of mains cable for easy installation and include our breathable gasket technology to further extend the life of the chips and driver. The floods also have a wide input voltage range of 220-240V AC making them suitable for commercial and industrial use.  Ava floods can also be upgraded to coastal marine grade using our upgrade kit (Code: LL006).

Commercial applications

For external use on: Warehouses, factories, sports grounds and facilities including swimming pools, retail outlets, carparks, residential estates, airports, rail and bus stations, construction sites, footpaths, parks, loading bays.

PHOTOMETRIC (LDT) FILES
Download PDF
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
Light source data
INSTALLATION instructions
LUMEN OUTPUT (lm)
22500
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
150W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
3.7kg
MICROWAVE
BEAM ANGLE
120˚ x 60˚
WINDAGE
0.10m2
CRI
>70
REPLACEMENT FOR
DIMENSIONS (mm)
318x343x65mm
PRODUCT TYPE
EFFICIENCY (lm/W)
150lm/W
RATED LIFETIME (hrs)
50,000hrs
IP-RATING
66
IK-RATING
08
INPUT VOLTAGE
220-240V AC
WORKING ENVIRONMENT
-30˚C - 40˚C
POWER FACTOR
L70 RATING (hrs)
120,000hrs
DAYLIGHT HARVESTING
WARRANTY
5yrs
ENERGY CLASS. OF LIGHT SOURCE
HOUSING COLOUR
Grey ; RAL9006
ON/OFF SENSOR
LOW GLARE
YES
FLICKER FREE
YES
SWITCHABLE OUTPUT
YES
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
