Solray Select LED Batten 6ft 32-72W with emergency function

EL6SRBE
KEY FEATURES

The Solray Select LED batten is the next generation of LED lighting. High-quality, attractive and easy to install, the Solray Select allows the client to easily select the lumen output of each product at the point of installation with a simple switch on the driver. Available in a range of sizes and with emergency options, this is a versatile batten with a range of installtion options - surface mount, clip-on brackets or cable-mount. With an opaque polycarbonate diffuser and aluminium housing this product is designed to look good and last for 50,000 hours.

Commercial applications

Offices, schools, corridors, medical centres

PRODUCT DATA
Lumens (lm)
9500
Daylight HArvesting
No
Colour Temperature (K)
4000
Dimmable
No
WATTAGE (W)
32-72W
Emergency
Emergency
WEIGHT (KG)
1.95kg
Microwave
No
Beam Angle
110° x 130°
On-Off Sensor
No
CRI
>80
Input Voltage
240Vac (50Hz)
Dimensions (m
1798x64x46mm
Windage
Efficiency (LM/W)
132 - 146
REPLACEMENT FOR
Single or twin T8 70W 6ft
IP
20
Product Type
Linear battens
Working Environment
-10°C
Rated Lifetime (Hours)
50000
L70 Rating
>80000
OTHER

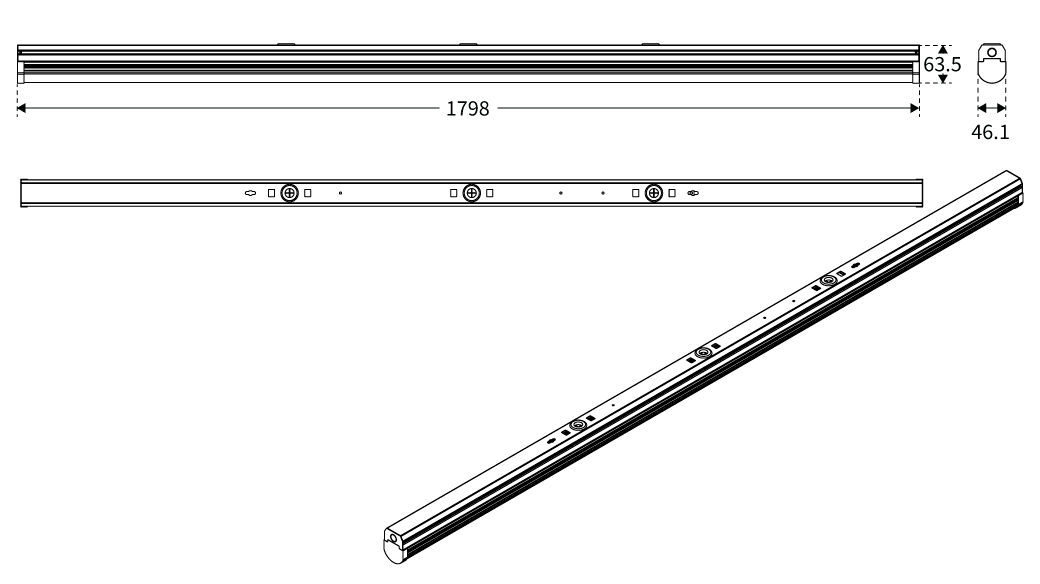

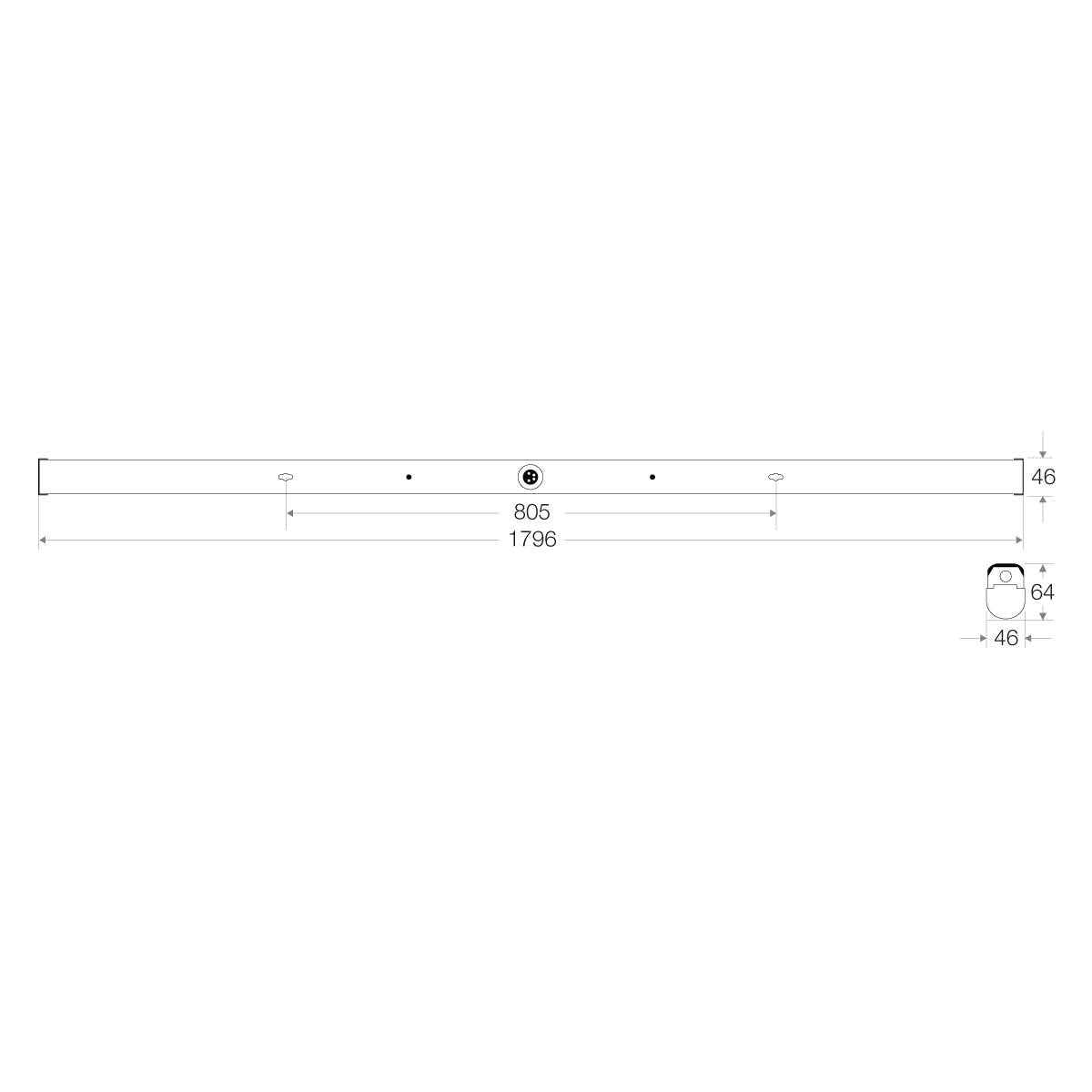

DIMENSIONS
POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

Solray Select LED Batten 6ft 32-72W with emergency function

warranty
5 years
lumen output range
4380 - 9500
emergency
tool-free installation
KEy Features

The Solray Select LED batten is the next generation of LED lighting. High-quality, attractive and easy to install, the Solray Select allows the client to easily select the lumen output of each product at the point of installation with a simple switch on the driver. Available in a range of sizes and with emergency options, this is a versatile batten with a range of installtion options - surface mount, clip-on brackets or cable-mount. With an opaque polycarbonate diffuser and aluminium housing this product is designed to look good and last for 50,000 hours.

Commercial applications

Offices, schools, corridors, medical centres

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET
INSTALLATION instructions
Lumens (lm)
9500
Daylight HArvesting
No
Colour Temperature (K)
4000
Dimmable
No
WATTAGE (W)
32-72W
Emergency
Emergency
WEIGHT (KG)
1.95kg
Microwave
No
Beam Angle
110° x 130°
On-Off Sensor
No
CRI
>80
Input Voltage
240Vac (50Hz)
Dimensions (m
1798x64x46mm
Windage
Efficiency (LM/W)
132 - 146
REPLACEMENT FOR
Single or twin T8 70W 6ft
IP
20
Product Type
Linear battens
Working Environment
-10°C
Rated Lifetime (Hours)
50000
L70 Rating
>80000
OTHER
