Solray LED Batten 5ft High Output 58W DALI with Self-Test Emergency

EL5HSR2BDF
PRODUCT DATA
LUMENS (lm)
9300
lm
DIMMABLE
DALI
WATTAGE (W)
58W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
Emergency
WEIGHT (kg)
2.0kg
MICROWAVE
BEAM ANGLE
110° x 130°
WINDAGE
CRI
>85
REPLACEMENT FOR
Single or twin T8 58W 5ft and Single or Twin T5 80W 5ft
DIMENSIONS (mm)
1530 x 60 x 74mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
160lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
20
IK
HOUSING COLOUR
RAL9003
WORKING ENVIRONMENT
-5°C to 35°C
WARRANTY
5 year
L70 RATING (hrs)
>80000hrs
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

Perfect for new installations and like-for-like replacements, this batten allows the client to choose the light level that they require during the installation process. This exciting development means that the Solray High Output is equivalent to both 5ft and 6ft Single and Twin T5 Fluorescent Tubes with an output of 9300 lumens. The flicker free operation, BESA mounting and M20 cable entry allow the unit to easily replace older fluorescent models.

Dimmable using DALI technology with Self-Test Emergency as standard (300lm).

Commercial applications

Offices, schools, corridors, medical centres

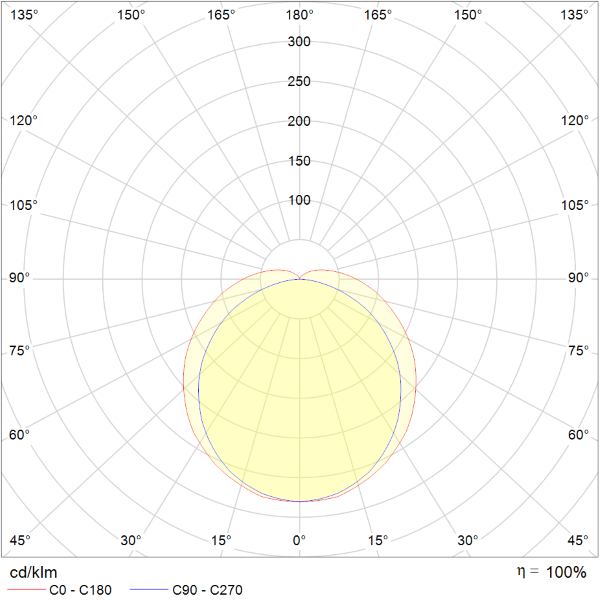

POLAR CURVE DIAGRAM
Polar Curve Image

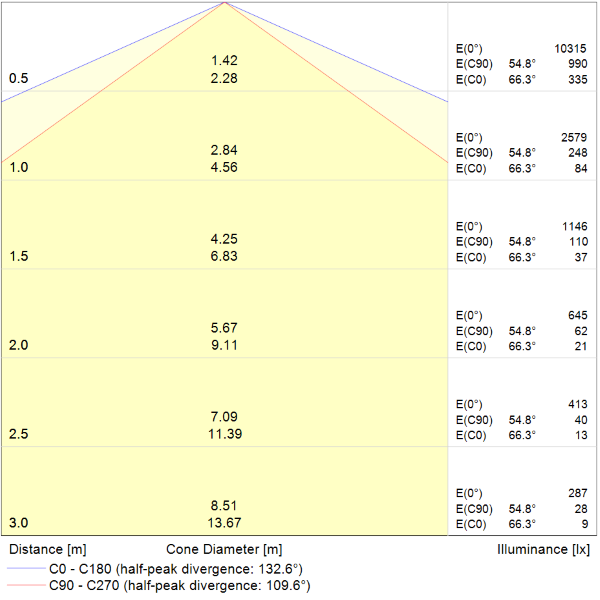

CONE DIAGRAM
Cone Diagram
DIMENSIONS

Solray LED Batten 5ft High Output 58W DALI with Self-Test Emergency

Solray Select Linear Batten (Gen 2)
Lumen Range
Lumen Range
Colour Temperature
Colour Temperature
Dimmable
Dimmable
Emergency
Emergency
KEy Features

Perfect for new installations and like-for-like replacements, this batten allows the client to choose the light level that they require during the installation process. This exciting development means that the Solray High Output is equivalent to both 5ft and 6ft Single and Twin T5 Fluorescent Tubes with an output of 9300 lumens. The flicker free operation, BESA mounting and M20 cable entry allow the unit to easily replace older fluorescent models.

Dimmable using DALI technology with Self-Test Emergency as standard (300lm).

Commercial applications

Offices, schools, corridors, medical centres
