Solray Select LED Batten 5ft High Output 58W DALI
EL5HSR2BD
PRODUCT DATA
LUMENS (lm)
9300
lm
DIMMABLE
DALI
WATTAGE (W)
58W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
1.5kg
MICROWAVE
BEAM ANGLE
110° x 130°
WINDAGE
CRI
>85
REPLACEMENT FOR
Single or twin T8 58W 5ft and Single or Twin T5 80W 5ft
DIMENSIONS (mm)
1530 x 60 x 74mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
Up to 170lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
20
IK
HOUSING COLOUR
RAL9003
WORKING ENVIRONMENT
-20°C to 35°C
WARRANTY
5 year
L70 RATING (hrs)
>80000hrs
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
34
W
5800
lm
43
W
7200
lm
52
W
8500
lm
58
W
9300
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES
Perfect for new installations and like-for-like replacements, this batten allows the client to choose the light level that they require during the installation process. This exciting development means that the Solray Select High Output is equivalent to both 5ft and 6ft Single and Twin T5 Fluorescent Tubes with lumen range of 5500-9000 lumens. The flicker free operation, BESA mounting and M20 cable entry allow the unit to easily replace older fluorescent models.
Dimmable using DALI technology
Commercial applications
Offices, schools, corridors, medical centres

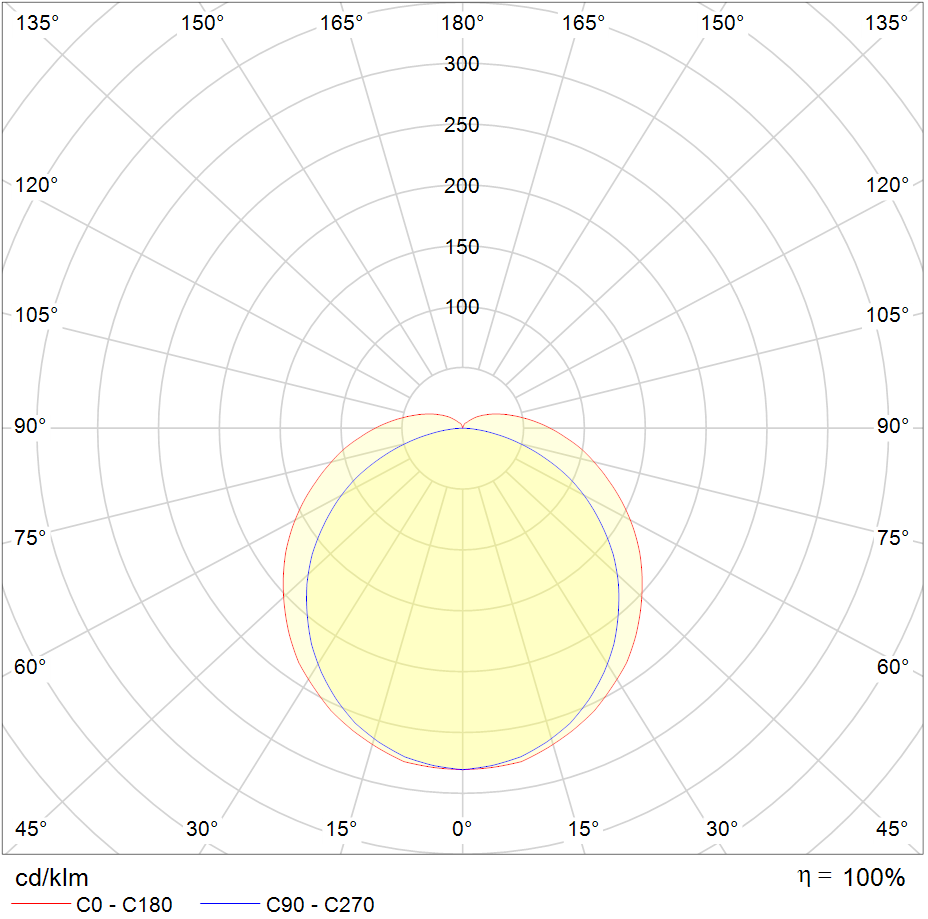

POLAR CURVE DIAGRAM

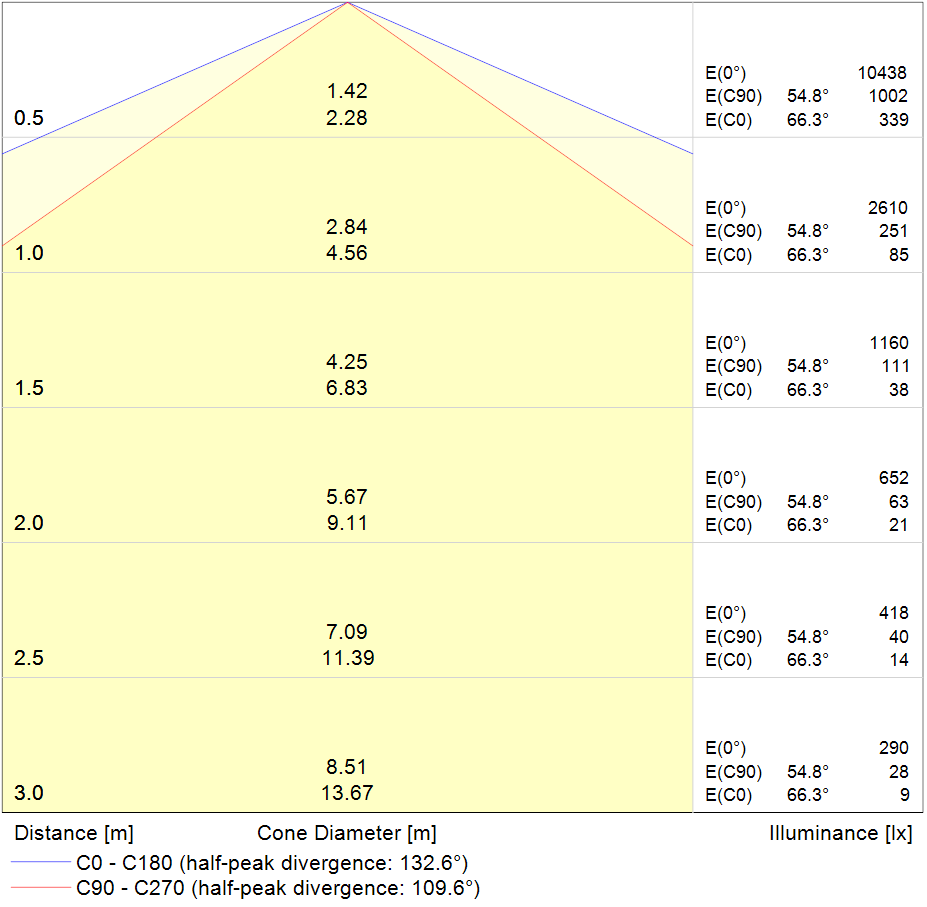

CONE DIAGRAM
DIMENSIONS
