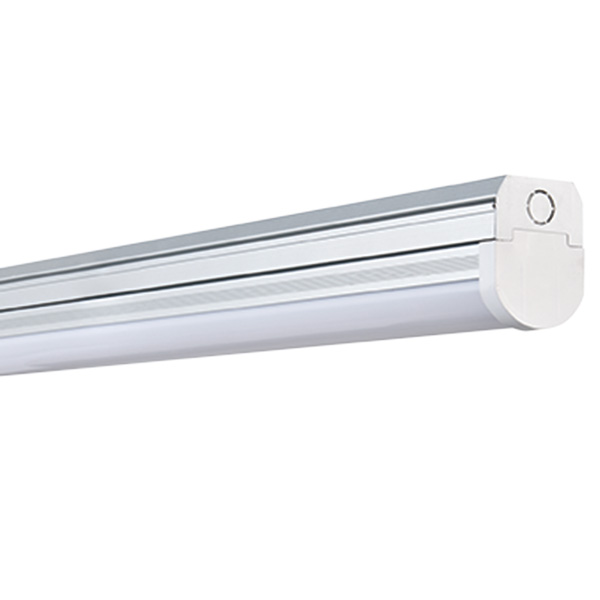

Solray Select LED Batten 5ft High Output 28W-70W

EL5HSRB
PRODUCT DATA
LUMENS (lm)
9240
lm
DIMMABLE
WATTAGE (W)
28-70W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
1.95kg
MICROWAVE
BEAM ANGLE
110° x 130°
WINDAGE
CRI
>80
REPLACEMENT FOR
Single or twin T8 70W 6ft
DIMENSIONS (mm)
1498 x 64 x 46mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
Up to 146lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
20
IK
HOUSING COLOUR
WORKING ENVIRONMENT
-10°C to 40°C
WARRANTY
5
L70 RATING (hrs)
>80000hrs
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
28
W
4088
lm
34
W
4896
lm
40
W
5680
lm
46
W
6440
lm
WATTAGE
LUMENS
52
W
7124
lm
58
W
7830
lm
64
W
8576
lm
70
W
9240
lm
KEY FEATURES

Perfect for new installations and like-for-like replacements, this batten allows the client to choose the light level that they require during the installation process. This exciting development means that the Solray Select is equivalent to both Single and Twin T5 Flourescent Tubes with lumen range of 4088-9240 lumens.

Commercial applications

Offices, schools, corridors, medical centres

POLAR CURVE DIAGRAM
Polar Curve Image

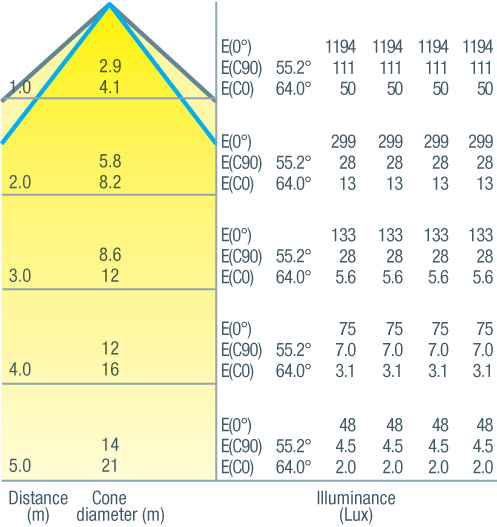

CONE DIAGRAM
Cone Diagram

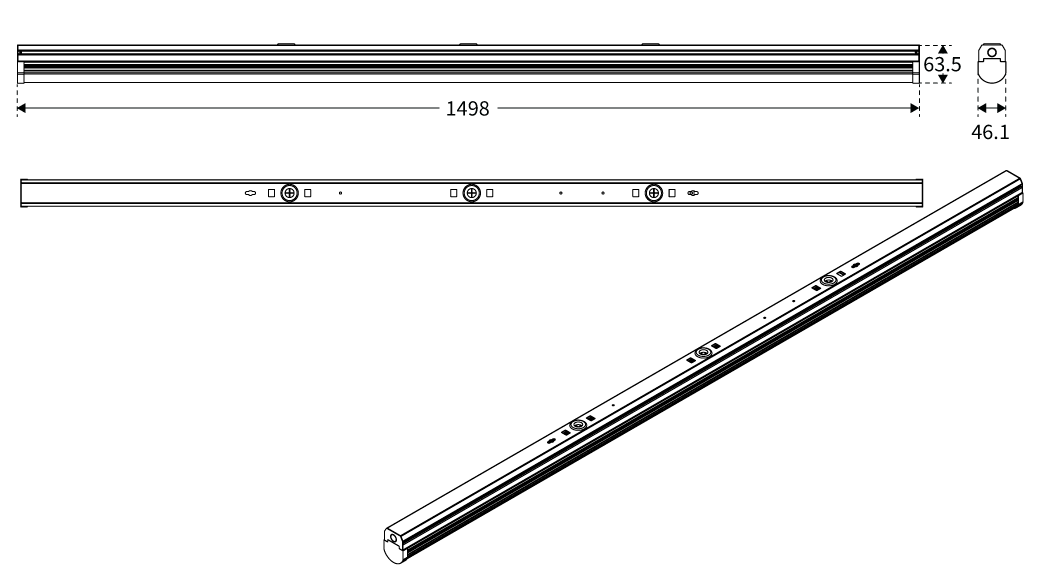

DIMENSIONS

Solray Select LED Batten 5ft High Output 28W-70W

Solray Select Linear Batten
Lumen Range
Lumen Range
Colour Temperature
Colour Temperature
Warranty
Warranty
KEy Features

Perfect for new installations and like-for-like replacements, this batten allows the client to choose the light level that they require during the installation process. This exciting development means that the Solray Select is equivalent to both Single and Twin T5 Flourescent Tubes with lumen range of 4088-9240 lumens.

Commercial applications

Offices, schools, corridors, medical centres

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
9240
LUMEN OUTPUT RANGE (lm)
4088lm-9240lm
DIMMABLE
WATTAGE (W)
28-70W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
1.95kg
MICROWAVE
BEAM ANGLE
110° x 130°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
1498 x 64 x 46mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
Up to 146lm/W
RATED LIFETIME (hrs)
50,000hrs
IP-RATING
20
IK-RATING
WORKING ENVIRONMENT
-10°C to 40°C
L70 RATING (hrs)
>80000hrs
DAYLIGHT HARVESTING
WARRANTY
5
HOUSING COLOUR
ON/OFF SENSOR
WATTAGE
LUMENS
28
W
4088
lm
34
W
4896
lm
40
W
5680
lm
46
W
6440
lm
52
W
7124
lm
58
W
7830
lm
64
W
8576
lm
70
W
9240
lm
