Novah Ltd | Specialists in LED Lighting | Solray LED Batten 5ft 48W DALI

EL5SR2BD

PRODUCT DATA

LUMENS (lm)

7200

lm

DIMMABLE

DALI

WATTAGE (W)

48W

COLOUR TEMPERATURE (K)

4000K

EMERGENCY

WEIGHT (kg)

1.5kg

MICROWAVE

BEAM ANGLE

110° x 130°

WINDAGE

CRI

>85

REPLACEMENT FOR

Single or twin T8 58W 5ft and Single or Twin T5 80W 5ft

DIMENSIONS (mm)

1530 x 60 x 74mm

PRODUCT TYPE

Linear battens

EFFICIENCY (lm/w)

160lm/W

RATED LIFETIME (hrs)

50,000hrs

IP

20

IK

HOUSING COLOUR

RAL9003

WORKING ENVIRONMENT

-20°C to 35°C

WARRANTY

5 year

L70 RATING (hrs)

>80000hrs

DAYLIGHT HARVESTING

ON/OFF SENSOR

SELECTABLE SETTINGS

WATTAGE

LUMENS

W

lm

W

lm

W

lm

W

lm

WATTAGE

LUMENS

W

lm

W

lm

W

lm

W

lm

KEY FEATURES

Perfect for new installations and like-for-like replacements, this batten allows the client to choose the light level that they require during the installation process. This exciting development means that the Solray is equivalent to Twin T5 Fluorescent Tubes with lumen output of 7200 lumens. The flicker free operation, BESA mounting and M20 cable entry allow the unit to easily replace older fluorescent models.

Dimmable using DALI technology

Commercial applications

Offices, schools, corridors, medical centres

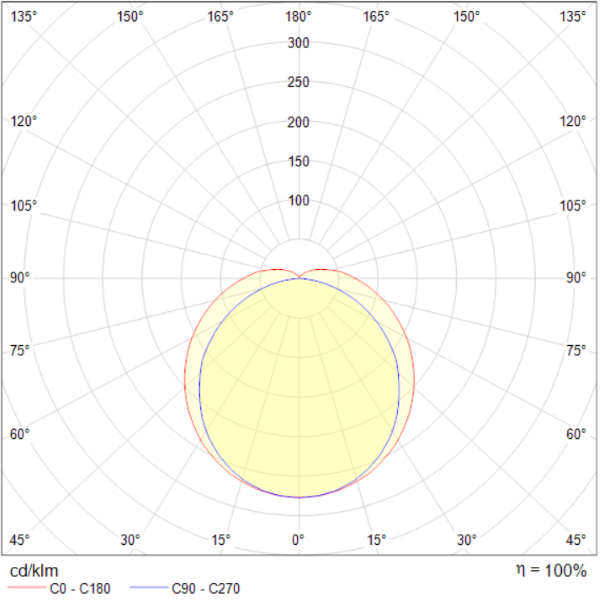

POLAR CURVE DIAGRAM

Polar Curve Image

CONE DIAGRAM

Cone Diagram

DIMENSIONS

Back to overview

Solray Select Linear Batten (Gen 2)

Lumen Range

Colour Temperature

Colour Temperature

Warranty

Dimmable

KEy Features

Perfect for new installations and like-for-like replacements, this batten allows the client to choose the light level that they require during the installation process. This exciting development means that the Solray is equivalent to Twin T5 Fluorescent Tubes with lumen output of 7200 lumens. The flicker free operation, BESA mounting and M20 cable entry allow the unit to easily replace older fluorescent models.

Dimmable using DALI technology

Commercial applications

Offices, schools, corridors, medical centres

PHOTOMETRIC (LDT) FILES

PRODUCT DATA SHEET PDF

Notice for Microsoft Edge users

INSTALLATION instructions

LUMEN OUTPUT (lm)

7200

LUMEN OUTPUT RANGE (lm)

7200lm

DIMMABLE

DALI

WATTAGE (W)

48W

COLOUR TEMPERATURE (K)

4000K

EMERGENCY

WEIGHT (kg)

1.5kg

MICROWAVE

BEAM ANGLE

110° x 130°

WINDAGE

CRI

>85

REPLACEMENT FOR

Single or twin T8 58W 5ft and Single or Twin T5 80W 5ft

DIMENSIONS (mm)

1530 x 60 x 74mm

PRODUCT TYPE

Linear battens

EFFICIENCY (lm/w)

160lm/W

RATED LIFETIME (hrs)

50,000hrs

IP-RATING

20

IK-RATING

WORKING ENVIRONMENT

-20°C to 35°C

L70 RATING (hrs)

>80000hrs

DAYLIGHT HARVESTING

WARRANTY

5 year

HOUSING COLOUR

RAL9003

ON/OFF SENSOR

WATTAGE

LUMENS

W

lm

W

lm

W

lm

W

lm

W

lm

W

lm

W

lm

W

lm
