Solray Select LED Batten 5ft 18-60W

EL5SRB
KEY FEATURES

The Solray Select LED batten is the next generation of LED lighting. High-quality, attractive and easy to install, the Solray Select allows the client to easily select the lumen output of each product at the point of installation with a simple switch on the driver. Available in a range of sizes and with emergency options, this is a versatile batten with a range of installtion options - surface mount, clip-on brackets or cable-mount. With an opaque polycarbonate diffuser and aluminium housing this product is designed to look good and last for 50,000 hours.

Commercial applications

Offices, schools, corridors, medical centres

PRODUCT DATA
Lumens (lm)
6780
Daylight HArvesting
No
Colour Temperature (K)
4000
Dimmable
No
WATTAGE (W)
18-60W
Emergency
No
WEIGHT (KG)
1.55kg
Microwave
No
Beam Angle
110° x 130°
On-Off Sensor
CRI
>80
Input Voltage
240Vac (50Hz)
Dimensions (m
1498x64x46mm
Windage
Efficiency (LM/W)
113 - 130
REPLACEMENT FOR
Single or twin T8 58W 5ft and Single or Twin T5 80W 5ft
IP
20
Product Type
Linear battens
Working Environment
-10°C
Rated Lifetime (Hours)
50000
L70 Rating
>80000
OTHER

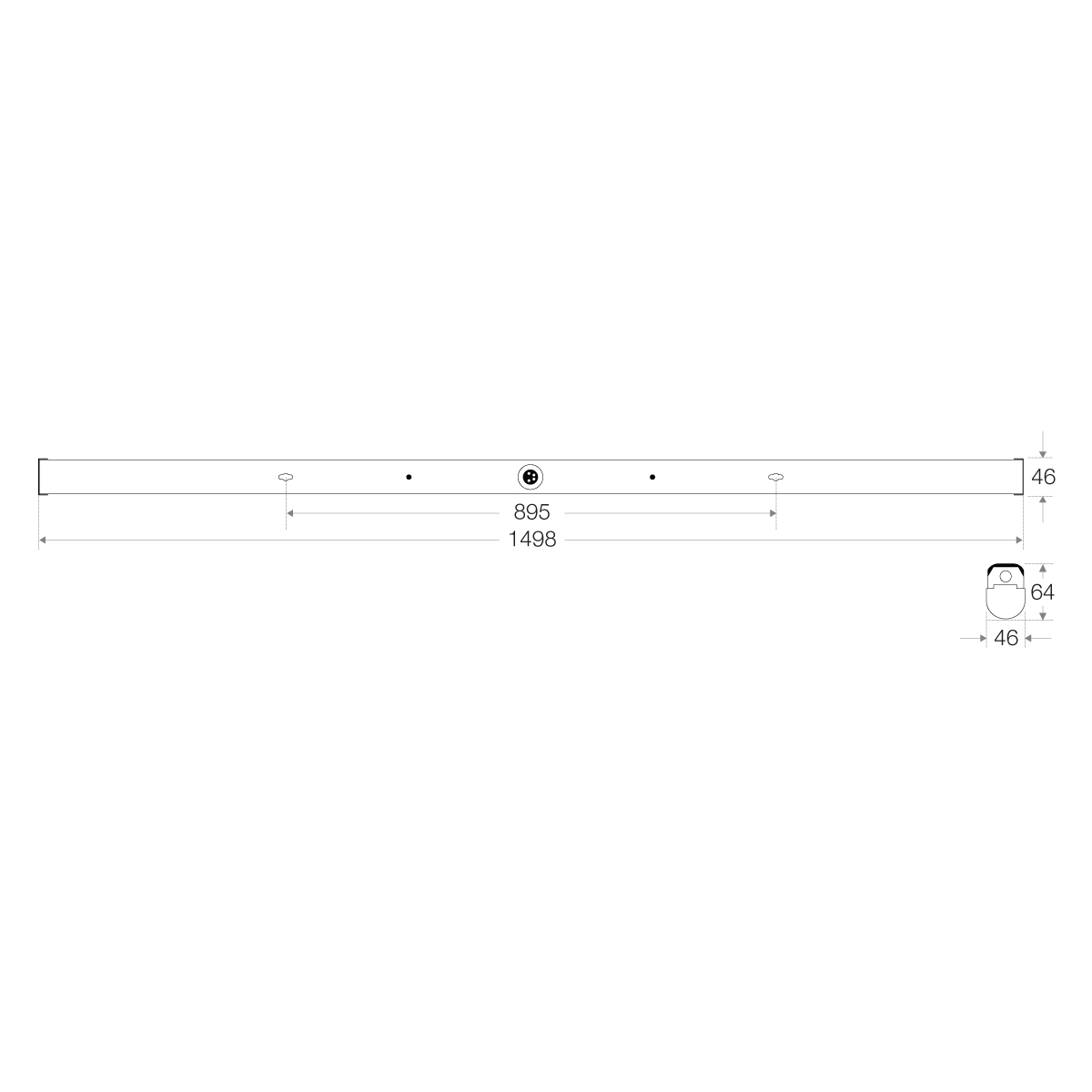

DIMENSIONS
POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

Solray Select LED Batten 5ft 18-60W

warranty
5 years
lumen output range
2340 - 6780
tool-free installation
KEy Features

The Solray Select LED batten is the next generation of LED lighting. High-quality, attractive and easy to install, the Solray Select allows the client to easily select the lumen output of each product at the point of installation with a simple switch on the driver. Available in a range of sizes and with emergency options, this is a versatile batten with a range of installtion options - surface mount, clip-on brackets or cable-mount. With an opaque polycarbonate diffuser and aluminium housing this product is designed to look good and last for 50,000 hours.

Commercial applications

Offices, schools, corridors, medical centres

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET
INSTALLATION instructions
Lumens (lm)
6780
Daylight HArvesting
No
Colour Temperature (K)
4000
Dimmable
No
WATTAGE (W)
18-60W
Emergency
No
WEIGHT (KG)
1.55kg
Microwave
No
Beam Angle
110° x 130°
On-Off Sensor
CRI
>80
Input Voltage
240Vac (50Hz)
Dimensions (m
1498x64x46mm
Windage
Efficiency (LM/W)
113 - 130
REPLACEMENT FOR
Single or twin T8 58W 5ft and Single or Twin T5 80W 5ft
IP
20
Product Type
Linear battens
Working Environment
-10°C
Rated Lifetime (Hours)
50000
L70 Rating
>80000
OTHER
