Solray LED Batten 4ft 34W DALI Self-Test Emergency

EL4SR2BDF
PRODUCT DATA
LUMENS (lm)
5200
lm
DIMMABLE
DALI
WATTAGE (W)
34W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
Emergency
WEIGHT (kg)
1.8kg
MICROWAVE
BEAM ANGLE
110° x 130°
WINDAGE
CRI
>80
REPLACEMENT FOR
Single or Twin T8 36W 4ft and Single or twin T5 54W 4ft
DIMENSIONS (mm)
1230 x 60 x 74mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
153lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
20
IK
08
HOUSING COLOUR
WORKING ENVIRONMENT
-5°C to 35°C
WARRANTY
5
L70 RATING (hrs)
>80000hrs
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

Perfect for new installations and like-for-like replacements, this batten allows the client to choose the light level that they require during the installation process. This exciting development means that the Solray is equivalent to both Single and Twin T5 Fluorescent Tubes with an output of of 5200 lumens. The flicker free operation, BESA mounting and M20 cable entry allow the unit to easily replace older fluorescent models. The self-test emergency function come as standard with this product (300lm).

Commercial applications

Offices, schools, corridors, medical centres

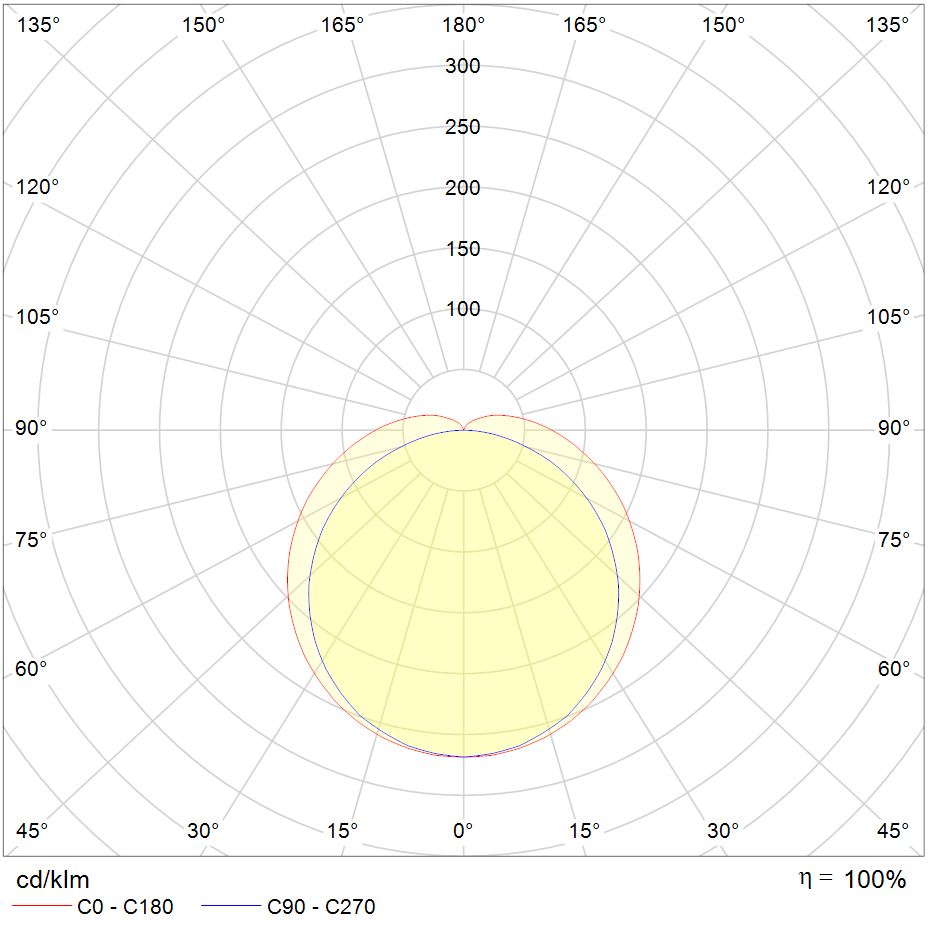

POLAR CURVE DIAGRAM
Polar Curve Image

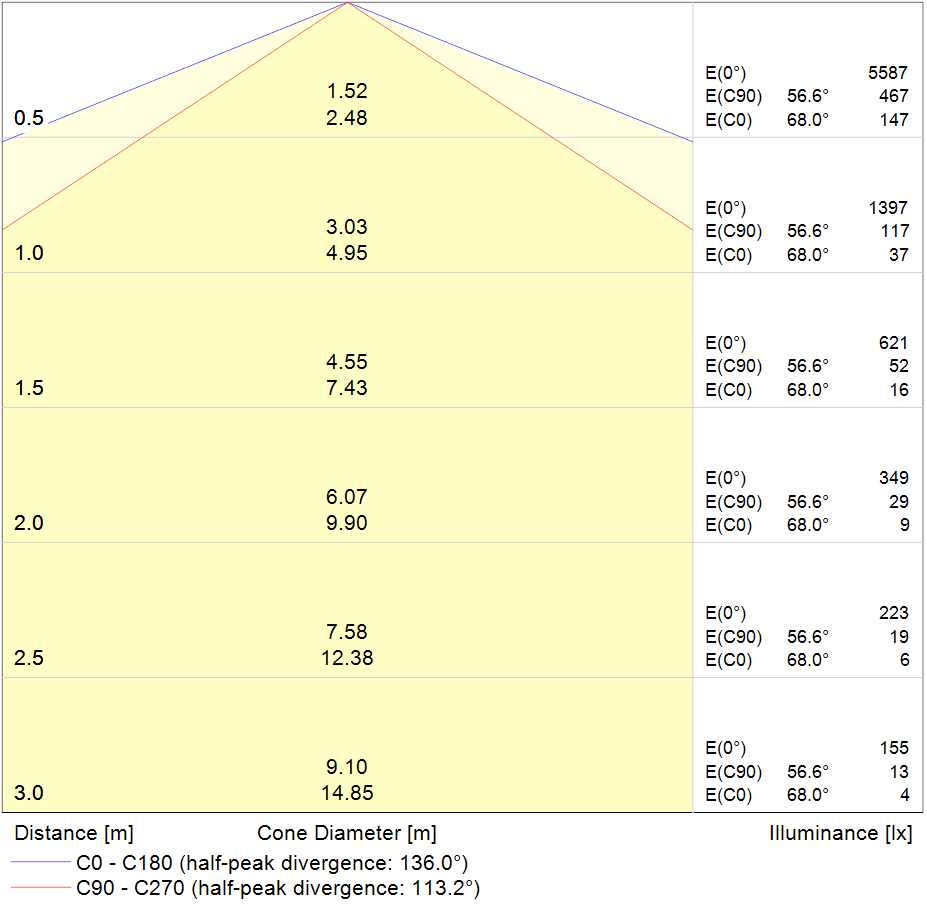

CONE DIAGRAM
Cone Diagram

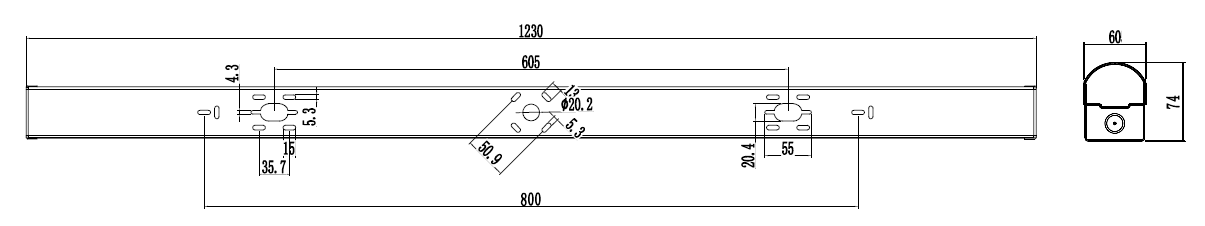

DIMENSIONS

Solray LED Batten 4ft 34W DALI Self-Test Emergency

Solray Select Linear Batten (Gen 2)
Lumen Range
Lumen Range
Colour Temperature
Colour Temperature
Dimmable
Dimmable
Emergency
Emergency
KEy Features

Perfect for new installations and like-for-like replacements, this batten allows the client to choose the light level that they require during the installation process. This exciting development means that the Solray is equivalent to both Single and Twin T5 Fluorescent Tubes with an output of of 5200 lumens. The flicker free operation, BESA mounting and M20 cable entry allow the unit to easily replace older fluorescent models. The self-test emergency function come as standard with this product (300lm).

Commercial applications

Offices, schools, corridors, medical centres

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
5200
LUMEN OUTPUT RANGE (lm)
4410lm
DIMMABLE
DALI
WATTAGE (W)
34W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
Emergency
WEIGHT (kg)
1.8kg
MICROWAVE
BEAM ANGLE
110° x 130°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
1230 x 60 x 74mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
153lm/W
RATED LIFETIME (hrs)
50,000hrs
IP-RATING
20
IK-RATING
08
WORKING ENVIRONMENT
-5°C to 35°C
L70 RATING (hrs)
>80000hrs
DAYLIGHT HARVESTING
WARRANTY
5
HOUSING COLOUR
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
