Solray Select LED Batten 4ft 24-42W with emergency function

EL4SRBE
KEY FEATURES

The Solray Select LED batten is the next generation of LED lighting. High-quality, attractive and easy to install, the Solray Select allows the client to easily select the lumen output of each product at the point of installation with a simple switch on the driver. Available in a range of sizes and with emergency options, this is a versatile batten with a range of installtion options - surface mount, clip-on brackets or cable-mount. With an opaque polycarbonate diffuser and aluminium housing this product is designed to look good and last for 50,000 hours.

Commercial applications

Offices, schools, corridors, medical centres

PRODUCT DATA
Lumens (lm)
4410
Daylight HArvesting
No
Colour Temperature (K)
4000
Dimmable
No
WATTAGE (W)
24-42W
Emergency
Emergency
WEIGHT (KG)
1.25kg
Microwave
No
Beam Angle
110° x 130°
On-Off Sensor
CRI
>80
Input Voltage
240Vac (50Hz)
Dimensions (m
1198x64x46mm
Windage
Efficiency (LM/W)
105 - 116
REPLACEMENT FOR
Single or Twin T8 36W 4ft and Single or twin T5 54W 4ft
IP
20
Product Type
Linear battens
Working Environment
-10°C
Rated Lifetime (Hours)
50000
L70 Rating
>80000
OTHER

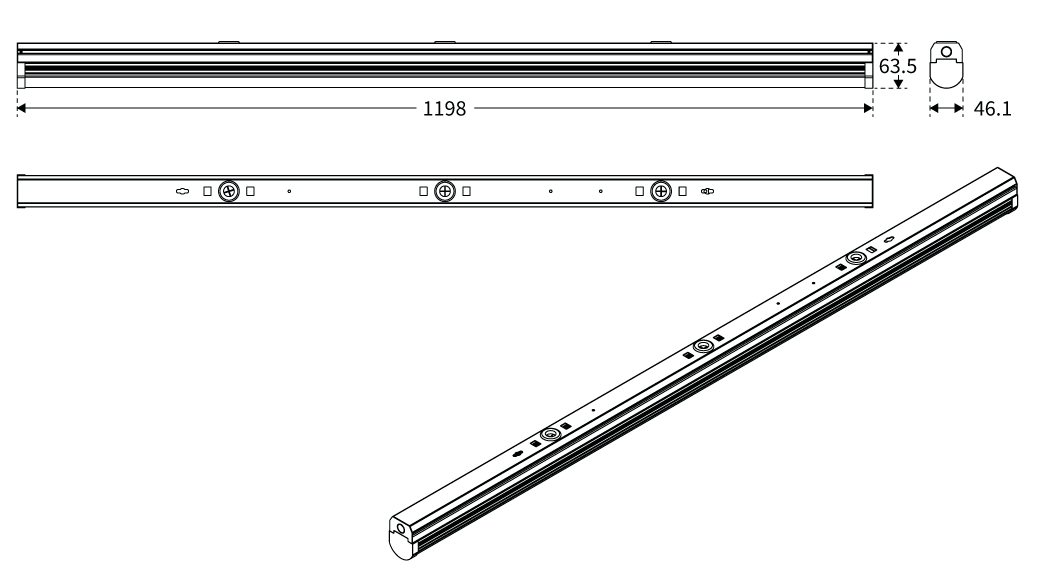

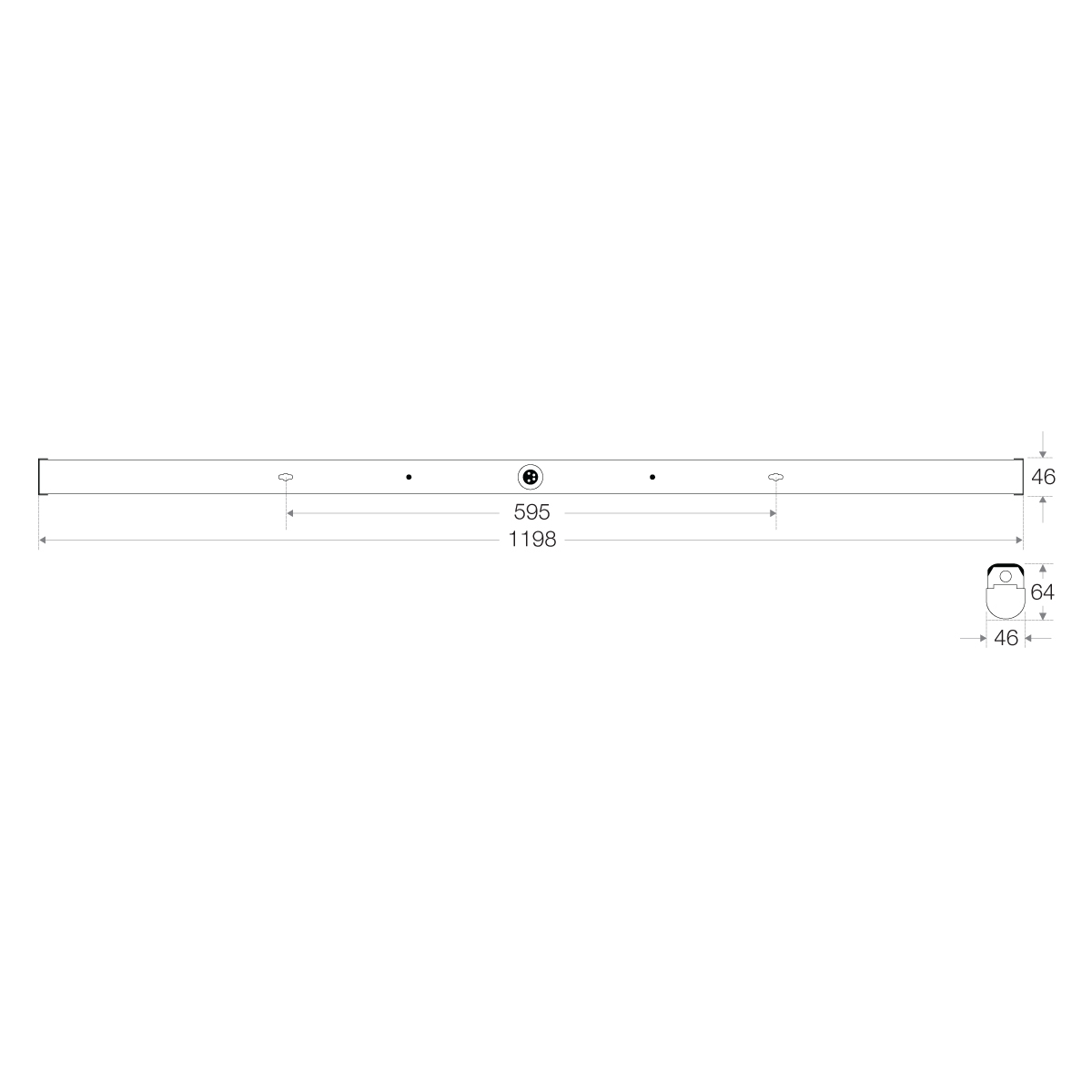

DIMENSIONS
POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

Solray Select LED Batten 4ft 24-42W with emergency function

KEy Features

The Solray Select LED batten is the next generation of LED lighting. High-quality, attractive and easy to install, the Solray Select allows the client to easily select the lumen output of each product at the point of installation with a simple switch on the driver. Available in a range of sizes and with emergency options, this is a versatile batten with a range of installtion options - surface mount, clip-on brackets or cable-mount. With an opaque polycarbonate diffuser and aluminium housing this product is designed to look good and last for 50,000 hours.

Commercial applications

Offices, schools, corridors, medical centres

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET
INSTALLATION instructions
Lumens (lm)
4410
Daylight HArvesting
No
Colour Temperature (K)
4000
Dimmable
No
WATTAGE (W)
24-42W
Emergency
Emergency
WEIGHT (KG)
1.25kg
Microwave
No
Beam Angle
110° x 130°
On-Off Sensor
CRI
>80
Input Voltage
240Vac (50Hz)
Dimensions (m
1198x64x46mm
Windage
Efficiency (LM/W)
105 - 116
REPLACEMENT FOR
Single or Twin T8 36W 4ft and Single or twin T5 54W 4ft
IP
20
Product Type
Linear battens
Working Environment
-10°C
Rated Lifetime (Hours)
50000
L70 Rating
>80000
OTHER
