Novah Ltd | Specialists in LED Lighting | Solray LED Batten 2ft 20W

EL620SRB

PRODUCT DATA

LUMENS (lm)

2100

lm

DIMMABLE

WATTAGE (W)

20

COLOUR TEMPERATURE (K)

4000K

EMERGENCY

WEIGHT (kg)

0.6kg

MICROWAVE

BEAM ANGLE

110° x 130°

WINDAGE

CRI

>80

REPLACEMENT FOR

Twin T5 2x14W

DIMENSIONS (mm)

596 x 64 x 46mm

PRODUCT TYPE

Linear battens

EFFICIENCY (lm/w)

105lm/W

RATED LIFETIME (hrs)

50,000hrs

IP

20

IK

HOUSING COLOUR

WORKING ENVIRONMENT

-10°C to 40°C

WARRANTY

5

L70 RATING (hrs)

>80000hrs

DAYLIGHT HARVESTING

ON/OFF SENSOR

SELECTABLE SETTINGS

WATTAGE

LUMENS

W

lm

W

lm

W

lm

W

lm

WATTAGE

LUMENS

W

lm

W

lm

W

lm

W

lm

KEY FEATURES

This small batten matches the Solray Select range and can be used to replace 2ft tubes and fittings or to fit into small areas such as alcoves and hard to reach places.

Commercial applications

Offices, schools, corridors, medical centres

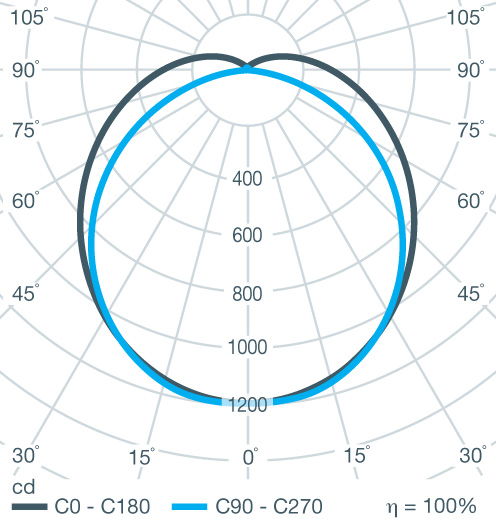

POLAR CURVE DIAGRAM

Polar Curve Image

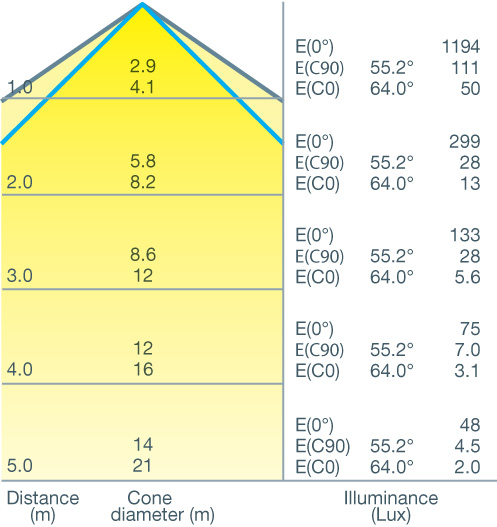

CONE DIAGRAM

Cone Diagram

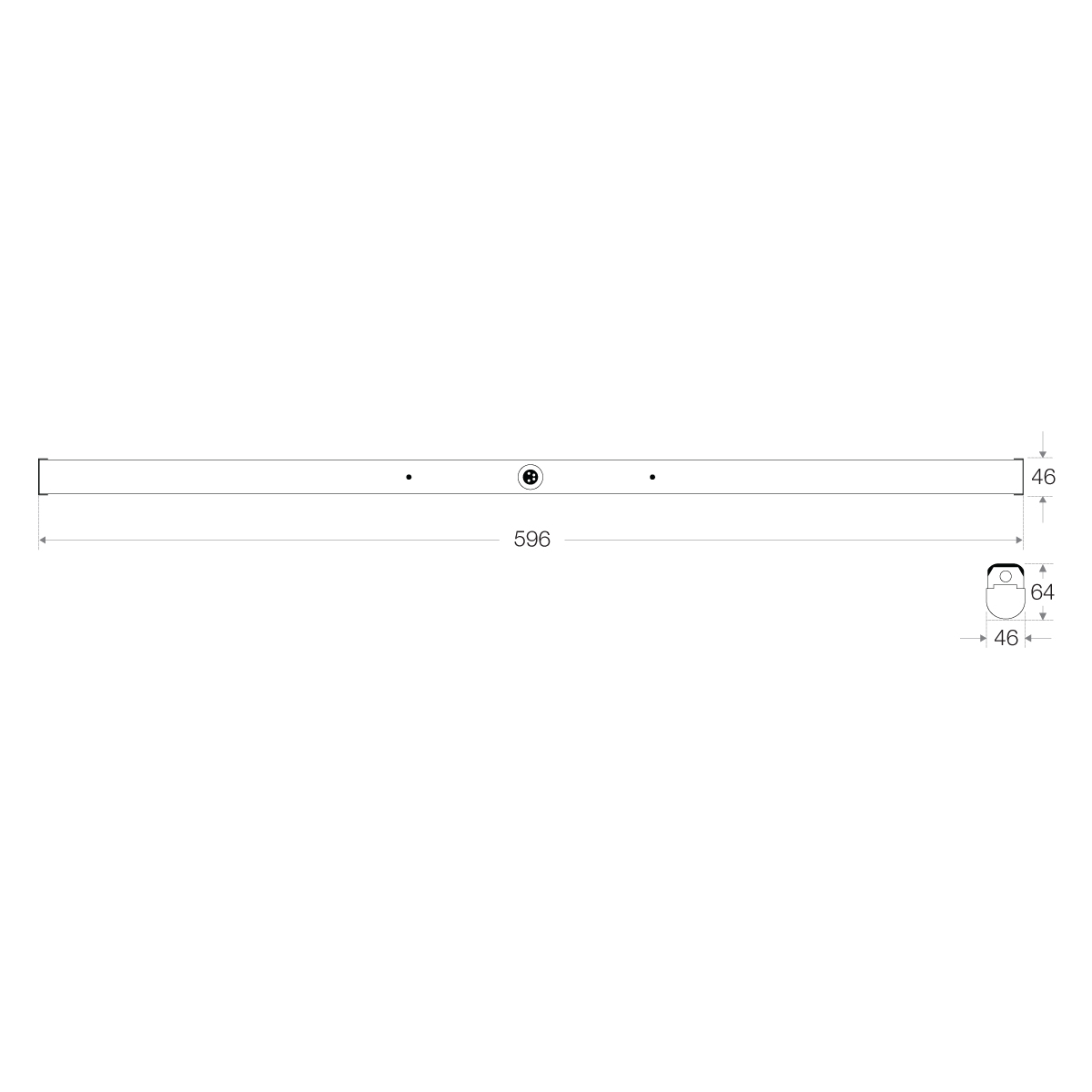

DIMENSIONS

Back to overview

Solray Select Linear Batten

Lumen Range

Colour Temperature

Colour Temperature

Warranty

KEy Features

This small batten matches the Solray Select range and can be used to replace 2ft tubes and fittings or to fit into small areas such as alcoves and hard to reach places.

Commercial applications

Offices, schools, corridors, medical centres

PHOTOMETRIC (LDT) FILES

PRODUCT DATA SHEET PDF

Notice for Microsoft Edge users

INSTALLATION instructions

LUMEN OUTPUT (lm)

2100

LUMEN OUTPUT RANGE (lm)

DIMMABLE

WATTAGE (W)

20

COLOUR TEMPERATURE (K)

4000K

EMERGENCY

WEIGHT (kg)

0.6kg

MICROWAVE

BEAM ANGLE

110° x 130°

WINDAGE

CRI

>80

REPLACEMENT FOR

Twin T5 2x14W

DIMENSIONS (mm)

596 x 64 x 46mm

PRODUCT TYPE

Linear battens

EFFICIENCY (lm/w)

105lm/W

RATED LIFETIME (hrs)

50,000hrs

IP-RATING

20

IK-RATING

WORKING ENVIRONMENT

-10°C to 40°C

L70 RATING (hrs)

>80000hrs

DAYLIGHT HARVESTING

WARRANTY

5

HOUSING COLOUR

ON/OFF SENSOR

WATTAGE

LUMENS

W

lm

W

lm

W

lm

W

lm

W

lm

W

lm

W

lm

W

lm

Also available in this range

Product code

Product name

Wattage

Lumens

Colour temp.

Replacement for

Solray LED Batten 2ft 20W

Solray Select LED Batten 4ft 24-42W

Single or Twin T8 36W 4ft and Single or twin T5 54W 4ft

Solray Select LED Batten 4ft 24-42W with emergency function

Single or Twin T8 36W 4ft and Single or twin T5 54W 4ft

Solray Select LED Batten 4ft DALI Dimmable

Single or Twin T8 36W 4ft and Single or twin T5 54W 4ft

Solray Select LED Batten 4ft DALI Dimmable Emergency

Single or Twin T8 36W 4ft and Single or twin T5 54W 4ft

Solray Select LED Batten 5ft 18-60W

Single or twin T8 58W 5ft and Single or Twin T5 80W 5ft

Solray Select LED Batten 5ft 18-60W with emergency function

Single or twin T8 58W 5ft and Single or Twin T5 80W 5ft

Solray Select LED Batten 5ft DALI Dimmable

Single or twin T8 58W 5ft and Single or Twin T5 80W 5ft

Solray Select LED Batten 5ft DALI Dimmable Emergency

Single or twin T8 58W 5ft and Single or Twin T5 80W 5ft

Solray Select LED Batten 5ft High Output 28W-70W

Single or twin T8 70W 6ft

Solray Select LED Batten 5ft High Output 28W-70W With Emergency Function

Single or twin T8 70W 6ft

Solray Select LED Batten 5ft High Output DALI Dimmable

Single or twin T8 70W 6ft

Solray Select LED Batten 5ft High Output DALI Dimmable Emergency

Single or twin T8 70W 6ft
