Solray LED Batten 2ft 18W

EL2SR2B
PRODUCT DATA
LUMENS (lm)
2160
lm
DIMMABLE
WATTAGE (W)
18W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
0.8kg
MICROWAVE
BEAM ANGLE
110° x 130°
WINDAGE
CRI
>80
REPLACEMENT FOR
Twin T5 18W 2ft
DIMENSIONS (mm)
630 x 60 x 74mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
Up to 120lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
20
IK
08
HOUSING COLOUR
RAL9003
WORKING ENVIRONMENT
-20°C to 35°C
WARRANTY
5 year
L70 RATING (hrs)
>80000hrs
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

This small batten matches the Solray Select range and can be used to replace 2ft tubes and fittings or to fit into small areas such as alcoves and hard to reach places. The flicker free operation, BESA mounting and M20 cable entry allow the unit to easily replace older fluorescent models

Commercial applications

Offices, schools, corridors, medical centres

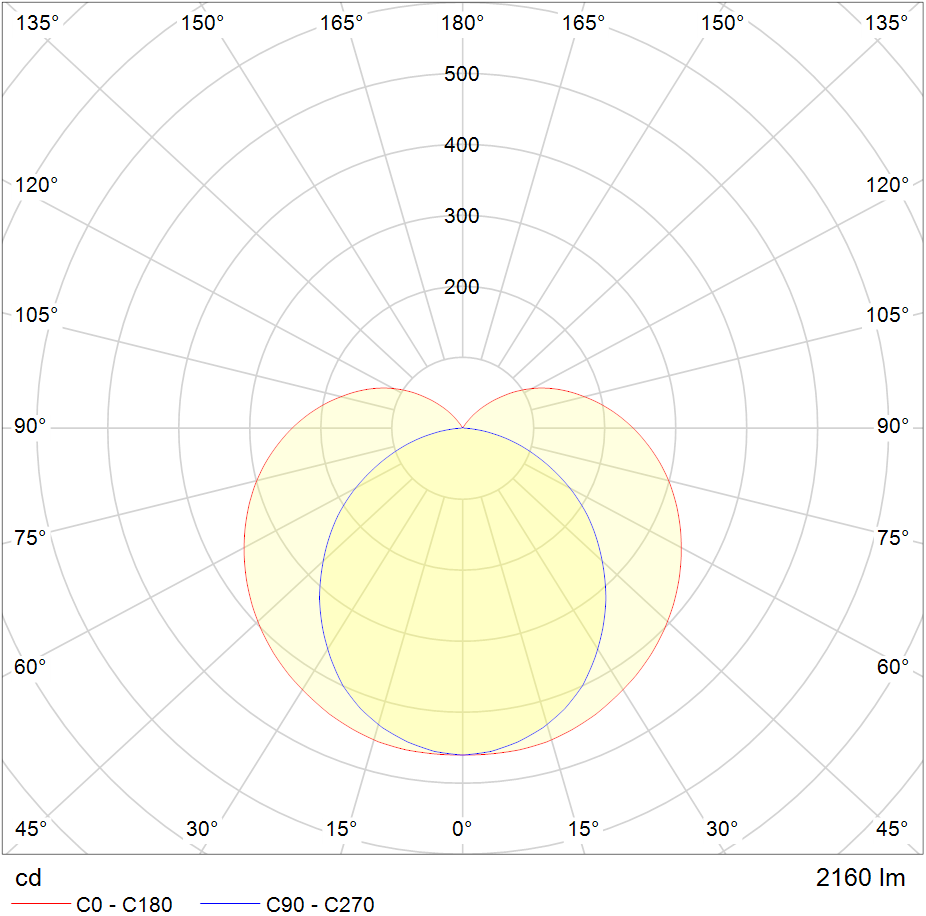

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

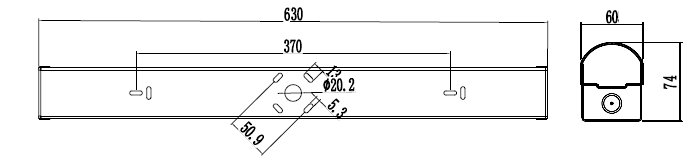

DIMENSIONS
Solray Select Linear Batten (Gen 2)
Lumen Range
Lumen Range
Colour Temperature
Colour Temperature
Warranty
Warranty
KEy Features

This small batten matches the Solray Select range and can be used to replace 2ft tubes and fittings or to fit into small areas such as alcoves and hard to reach places. The flicker free operation, BESA mounting and M20 cable entry allow the unit to easily replace older fluorescent models

Commercial applications

Offices, schools, corridors, medical centres

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
2160
LUMEN OUTPUT RANGE (lm)
2160
DIMMABLE
WATTAGE (W)
18W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
0.8kg
MICROWAVE
BEAM ANGLE
110° x 130°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
630 x 60 x 74mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
Up to 120lm/W
RATED LIFETIME (hrs)
50,000hrs
IP-RATING
20
IK-RATING
08
WORKING ENVIRONMENT
-20°C to 35°C
L70 RATING (hrs)
>80000hrs
DAYLIGHT HARVESTING
WARRANTY
5 year
HOUSING COLOUR
RAL9003
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
