Solbeam batten 5ft 40W 4800 lumens

EL1540SBB
PRODUCT DATA
LUMENS (lm)
4800
DIMMABLE
No
WATTAGE (W)
40W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
No
WEIGHT (kg)
0.9kg
MICROWAVE
No
BEAM ANGLE
200°
WINDAGE
CRI
>80
REPLACEMENT FOR
Twin T5 2x53W
DIMENSIONS (mm)
1500x71x42mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
120
RATED LIFETIME (hrs)
25000
IP
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
KEY FEATURES

The Solbeam 4ft has a sleek, low profile design and is intented to replace T5 and T8 tubes and their fittings. The low--glare diffuser and wide beam angle makes this a very versatile product. The Solbeam is pre-wired for a very quick installation. This batten can be surface mounted or suspended.

Commercial applications

Offices, schools, corridors, medical centres, garages

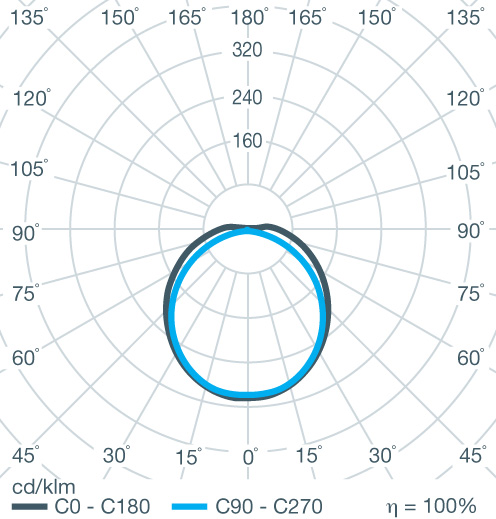

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

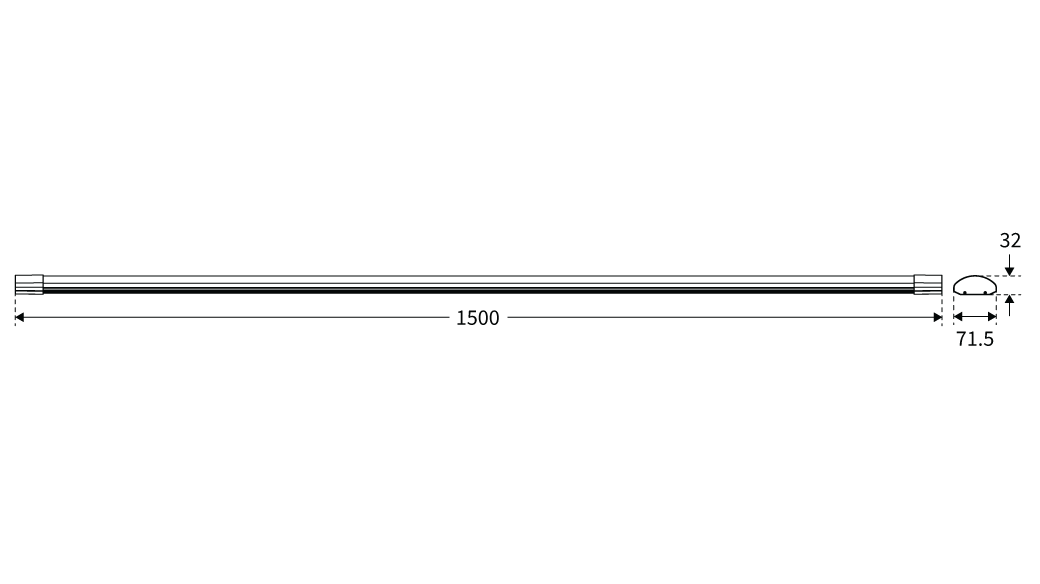

DIMENSIONS

Solbeam batten 5ft 40W 4800 lumens

warranty
warranty
2 years
lumen output
lumen output
4800
beam angle
beam angle
200°
KEy Features

The Solbeam 4ft has a sleek, low profile design and is intented to replace T5 and T8 tubes and their fittings. The low--glare diffuser and wide beam angle makes this a very versatile product. The Solbeam is pre-wired for a very quick installation. This batten can be surface mounted or suspended.

Commercial applications

Offices, schools, corridors, medical centres, garages

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
INSTALLATION instructions
LUMENS (lm)
4800
DIMMABLE
No
WATTAGE (W)
40W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
No
WEIGHT (kg)
0.9kg
MICROWAVE
No
BEAM ANGLE
200°
WINDAGE
CRI
>80
REPLACEMENT FOR
Twin T5 2x53W
DIMENSIONS (mm)
1500x71x42mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
120
RATED LIFETIME (hrs)
25000
IP
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
