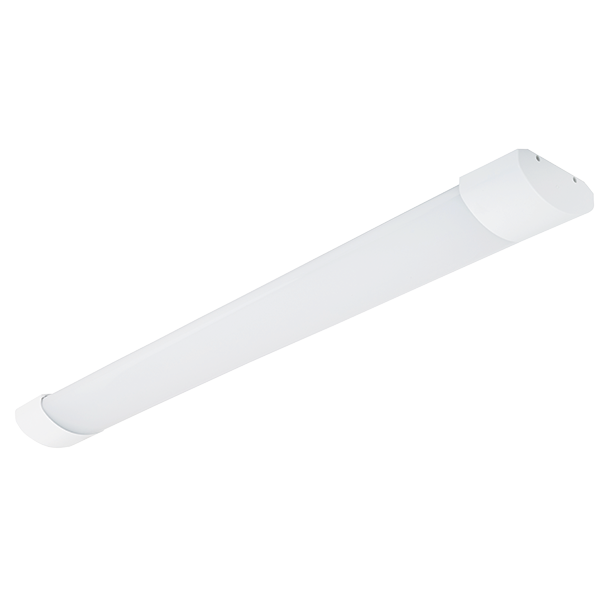

Solbeam batten 4ft 30W 3600 lumens

EL1230SBB
PRODUCT DATA
LUMENS (lm)
3600
lm
DIMMABLE
No
WATTAGE (W)
30W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
No
WEIGHT (kg)
0.75kg
MICROWAVE
No
BEAM ANGLE
200°
WINDAGE
CRI
>80
REPLACEMENT FOR
Twin T5 2x30W
DIMENSIONS (mm)
1200x71x42mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
120l/W
RATED LIFETIME (hrs)
25000
IP
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
ON/OFF SENSOR
KEY FEATURES

The Solbeam 4ft has a sleek, low profile design and is intented to replace T5 and T8 tubes and their fittings. The low--glare diffuser and wide beam angle makes this a very versatile product. The Solbeam is pre-wired for a very quick installation. This batten can be surface mounted or suspended.

Commercial applications

Offices, schools, corridors, medical centres, garages

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

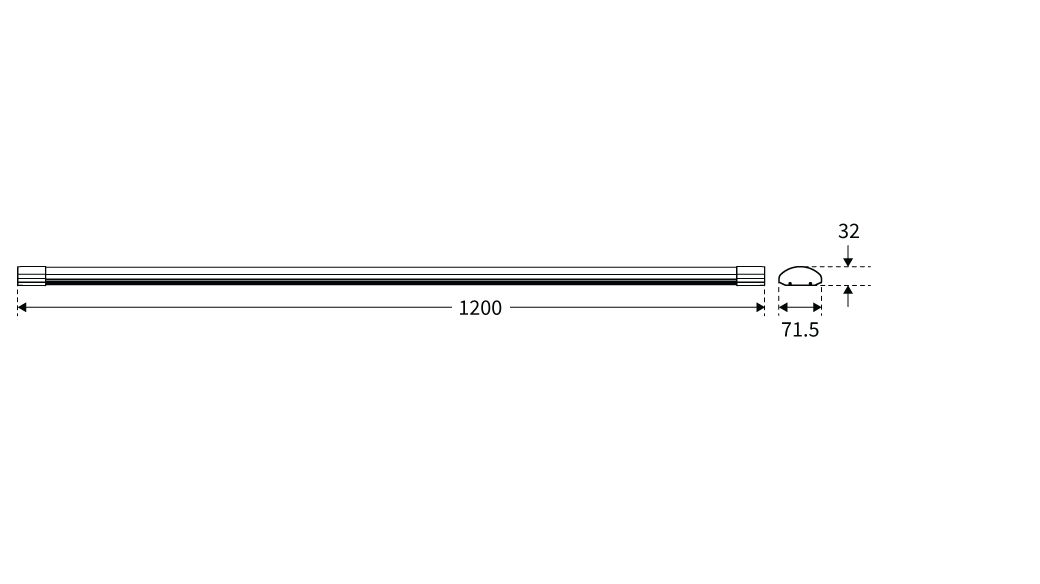

DIMENSIONS

Solbeam batten 4ft 30W 3600 lumens

Lumen output
Lumen output
Beam Angle
Beam Angle
Warranty
Warranty
KEy Features

The Solbeam 4ft has a sleek, low profile design and is intented to replace T5 and T8 tubes and their fittings. The low--glare diffuser and wide beam angle makes this a very versatile product. The Solbeam is pre-wired for a very quick installation. This batten can be surface mounted or suspended.

Commercial applications

Offices, schools, corridors, medical centres, garages

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
3600
LUMEN OUTPUT RANGE (lm)
DIMMABLE
No
WATTAGE (W)
30W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
No
WEIGHT (kg)
0.75kg
MICROWAVE
No
BEAM ANGLE
200°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
1200x71x42mm
PRODUCT TYPE
Linear battens
EFFICIENCY (lm/w)
120l/W
RATED LIFETIME (hrs)
25000
IP-RATING
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
WARRANTY
2
ON/OFF SENSOR

Also available in this range
