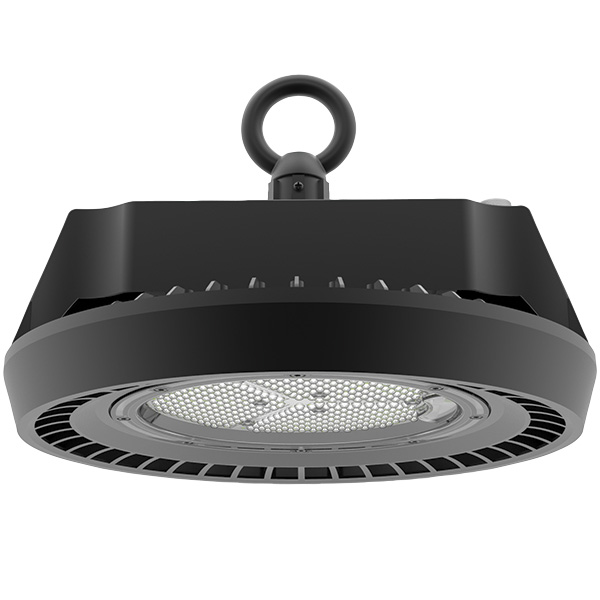

Sirius Low Bay 100W 14000 lumens with microwave ON/OFF sensor

EL100SFLB2M
PRODUCT DATA
LUMENS (lm)
14000
lm
DIMMABLE
WATTAGE (W)
100W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
3.2kg
MICROWAVE
Microwave
BEAM ANGLE
110°
WINDAGE
CRI
>80
REPLACEMENT FOR
250W MH/SON
DIMENSIONS (mm)
296x204mm
PRODUCT TYPE
Low bays
EFFICIENCY (lm/w)
140lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
65
WORKING ENVIRONMENT
-40°C - 50°C
L70 RATING (hrs)
>80000
DAYLIGHT HARVESTING
ON/OFF SENSOR
On-off sensor
KEY FEATURES

Ideal for installations at height of 5-8 metres, the Sirius Low Bay 14000lumen with Microwave ON/OFF sensor is easy to instal with flexible mounting options. The ON/OFF sensor ensures that the luminaire is only being used when it is needed, saving energy costs and the life of the product. It comes with Philips dimmable driver as standard and Philips Lumiled chips to ensure high efficiency and reliability. Perfect for projects and installations of all sizes.

Commercial applications

Warehouses, factories, sports arenas, sports halls, retail outlets

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram
DIMENSIONS

Sirius Low Bay 100W 14000 lumens with microwave ON/OFF sensor

Lumen output
Lumen output
Beam Angle
Beam Angle
Microwave
Microwave
Warranty
Warranty
KEy Features

Ideal for installations at height of 5-8 metres, the Sirius Low Bay 14000lumen with Microwave ON/OFF sensor is easy to instal with flexible mounting options. The ON/OFF sensor ensures that the luminaire is only being used when it is needed, saving energy costs and the life of the product. It comes with Philips dimmable driver as standard and Philips Lumiled chips to ensure high efficiency and reliability. Perfect for projects and installations of all sizes.

Commercial applications

Warehouses, factories, sports arenas, sports halls, retail outlets

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
14000
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
100W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
3.2kg
MICROWAVE
Microwave
BEAM ANGLE
110°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
296x204mm
PRODUCT TYPE
Low bays
EFFICIENCY (lm/w)
140lm/W
RATED LIFETIME (hrs)
50,000hrs
IP-RATING
65
WORKING ENVIRONMENT
-40°C - 50°C
L70 RATING (hrs)
>80000
DAYLIGHT HARVESTING
WARRANTY
5
ON/OFF SENSOR
On-off sensor
