Onyx 50W security flood

EL50XF4PIR
PRODUCT DATA
LUMENS (lm)
4000
DIMMABLE
WATTAGE (W)
50W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
1.06kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
500W Halogen flood
DIMENSIONS (mm)
251x237x62mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
80lm/w
RATED LIFETIME (hrs)
25,000hrs
IP
65
WORKING ENVIRONMENT
-20°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
Daylight harvesting
KEY FEATURES

Perfect for a wide range of applications, this warm light comes with a PIR sensor which is IP65 rated. The Onyx security flood comes with a 1m cable and a 360 degree bracket for easy mounting.

Commercial applications

Residential, retail, warehouses, gardens, parks & landscaping

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

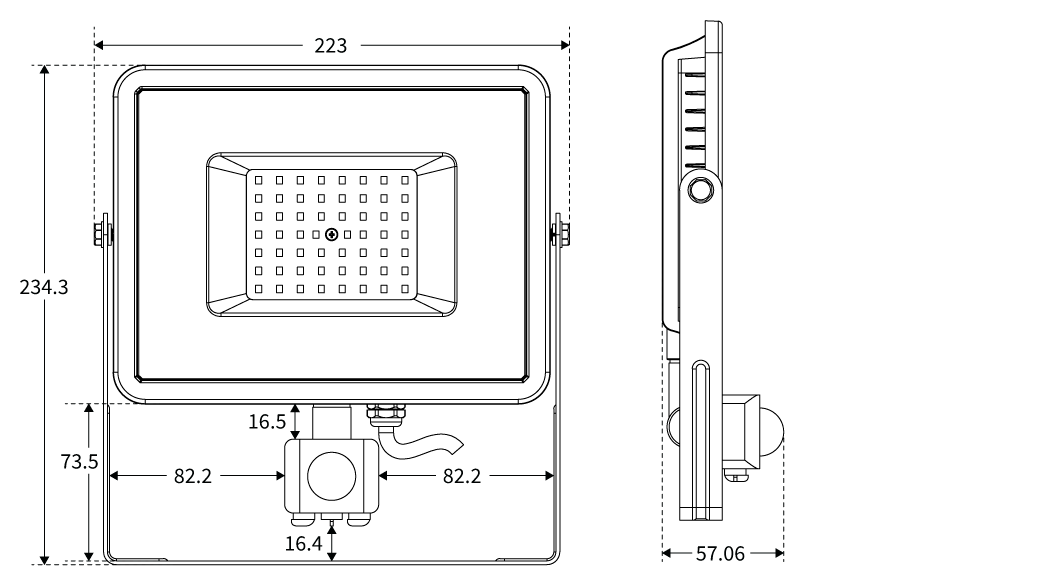

DIMENSIONS

Onyx 50W security flood

warranty
warranty
2 years
lumen output
lumen output
4000lm
wattage
wattage
50W
colour temperature
colour temperature
4000k
IP rating
IP rating
65
KEy Features

Perfect for a wide range of applications, this warm light comes with a PIR sensor which is IP65 rated. The Onyx security flood comes with a 1m cable and a 360 degree bracket for easy mounting.

Commercial applications

Residential, retail, warehouses, gardens, parks & landscaping

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
INSTALLATION instructions
LUMENS (lm)
4000
DIMMABLE
WATTAGE (W)
50W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
1.06kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
500W Halogen flood
DIMENSIONS (mm)
251x237x62mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
80lm/w
RATED LIFETIME (hrs)
25,000hrs
IP
65
WORKING ENVIRONMENT
-20°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
Daylight harvesting
