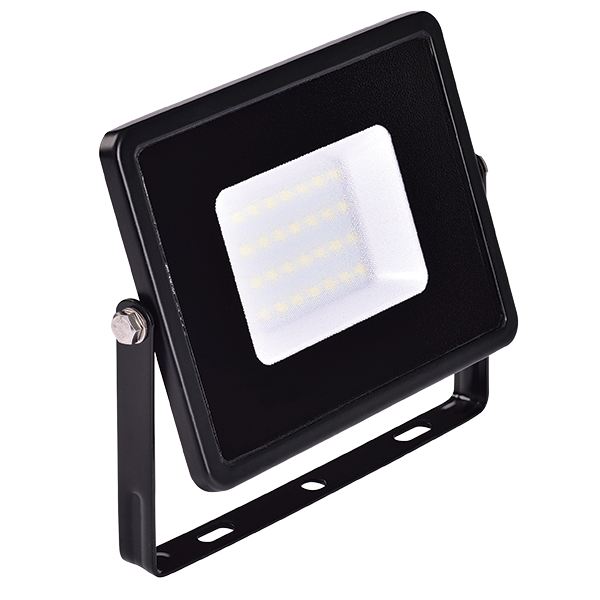

Onyx 50W Mini-flood

EL50XF4
KEY FEATURES

The Onyx Mini and Security floods are slimline, lightweight and offer a very attractive solution for powerful, energy-saving illumination. Available with or without PIR motion sensors, the Onyx Minis are easily installed and extremely reliable. The Onyx Minis are compatible with security cameras and all come with a 1m cable as standard.

Commercial applications

Residential, retail, warehouses, gardens, parks & landscaping

PRODUCT DATA
Lumens (lm)
4000
Daylight Harvesting
Colour Temperature (K)
4000K
Dimmable
WATTAGE (W)
50W
Emergency
WEIGHT (KG)
0.96kg
Microwave
Beam Angle
120°
On-Off Sensor
CRI
>70
Input Voltage
240Vac
Dimensions (m
194x237x36mm
Windage
Efficiency (LM/W)
80lm/W
Replacement for
500W Halogen flood
IP
65
Product Type
Floods
Working Environment
-20°C to 40°C
Rated Lifetime (Hours)
25000hrs
L70 Rating
OTHER
DIMENSIONS
POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

Onyx 50W Mini-flood

Wattage
50W
lumen output
4000LM
Colour Temperature
4000K
IP Rating
65
Warranty
2YRS
KEy Features

The Onyx Mini and Security floods are slimline, lightweight and offer a very attractive solution for powerful, energy-saving illumination. Available with or without PIR motion sensors, the Onyx Minis are easily installed and extremely reliable. The Onyx Minis are compatible with security cameras and all come with a 1m cable as standard.

Commercial applications

Residential, retail, warehouses, gardens, parks & landscaping

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
INSTALLATION instructions
LUMENS (lm)
4000
DIMMABLE
WATTAGE (W)
50W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
0.96kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
500W Halogen flood
DIMENSIONS (mm)
194x237x36mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
80lm/W
RATED LIFETIME (hrs)
25000hrs
IP
65
WORKING ENVIRONMENT
-20°C to 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING

Also available in this range
