Onyx 50W flood

EL50X3F
PRODUCT DATA
LUMENS (lm)
6500
lm
DIMMABLE
WATTAGE (W)
50W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
1.15kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
0.07m2
CRI
>70
REPLACEMENT FOR
75W HID Lamp
DIMENSIONS (mm)
230x191x45mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
130lm/W
RATED LIFETIME (hrs)
25,000hrs
IP
65
IK
HOUSING COLOUR
Black
WORKING ENVIRONMENT
-20°C to 40°C
WARRANTY
2 years
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The high output of the Onyx 50W flood (3rd generation) makes it a perfect replacement for a 75W HID Lamp and is ideal as a high powered floodlight. The input voltage range of 100-240Vac allows for use in both commercial, industrial and construction site lighting.

Commercial applications

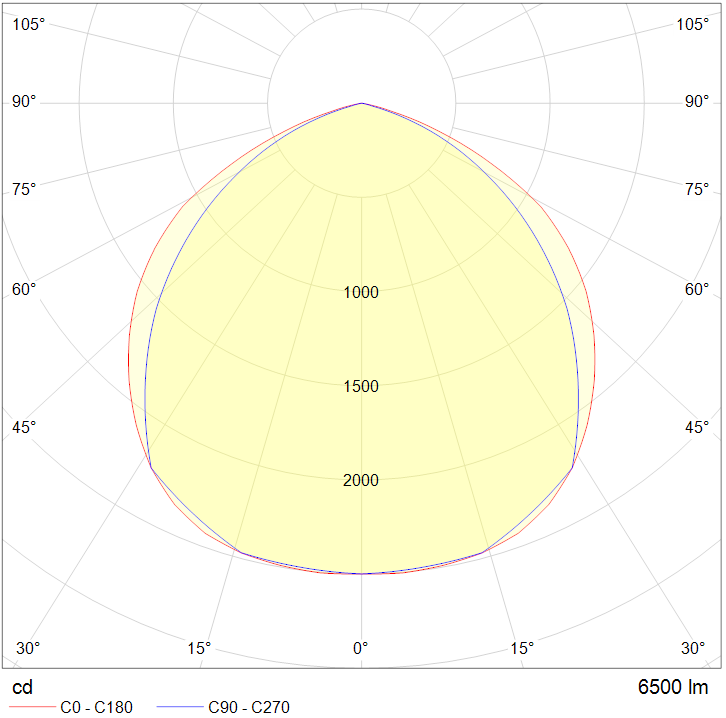

POLAR CURVE DIAGRAM
Polar Curve Image

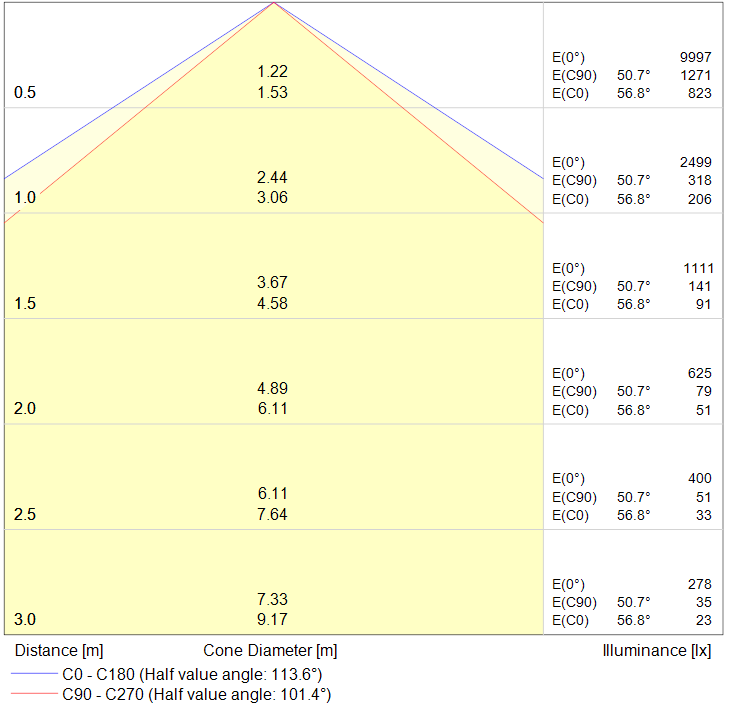

CONE DIAGRAM
Cone Diagram

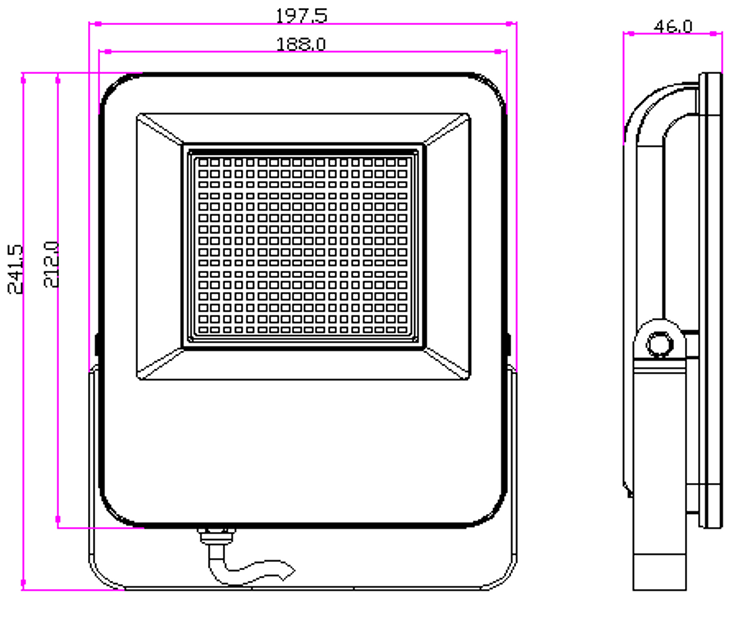

DIMENSIONS

Onyx 50W flood

Lumen output
Lumen output
Colour Temperature
Colour Temperature
Wattage
Wattage
IP Rating
IP Rating
Warranty
Warranty
KEy Features

The high output of the Onyx 50W flood (3rd generation) makes it a perfect replacement for a 75W HID Lamp and is ideal as a high powered floodlight. The input voltage range of 100-240Vac allows for use in both commercial, industrial and construction site lighting.

Commercial applications

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
6500
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
50W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
1.15kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
0.07m2
CRI
>70
REPLACEMENT FOR
DIMENSIONS (mm)
230x191x45mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
130lm/W
RATED LIFETIME (hrs)
25,000hrs
IP-RATING
65
IK-RATING
WORKING ENVIRONMENT
-20°C to 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
2 years
HOUSING COLOUR
Black
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
