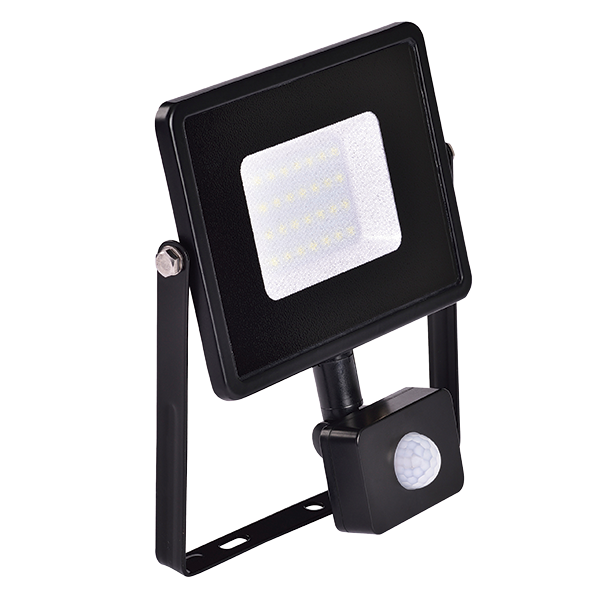

Onyx 30W security flood

EL30XF4PIR
PRODUCT DATA
LUMENS (lm)
2400
lm
DIMMABLE
WATTAGE (W)
30W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
1.05kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
300W Halogen flood
DIMENSIONS (mm)
231x217x57mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
80lm/W
RATED LIFETIME (hrs)
25,000hrs
IP
65
WORKING ENVIRONMENT
-20°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
Daylight harvesting
ON/OFF SENSOR
KEY FEATURES

Perfect for a wide range of applications, this warm light comes with a PIR sensor which is IP65 rated. The Onyx security flood comes with a 1m cable and a 360 degree bracket for easy mounting.

Commercial applications

Residential, retail, warehouses, gardens, parks & landscaping

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

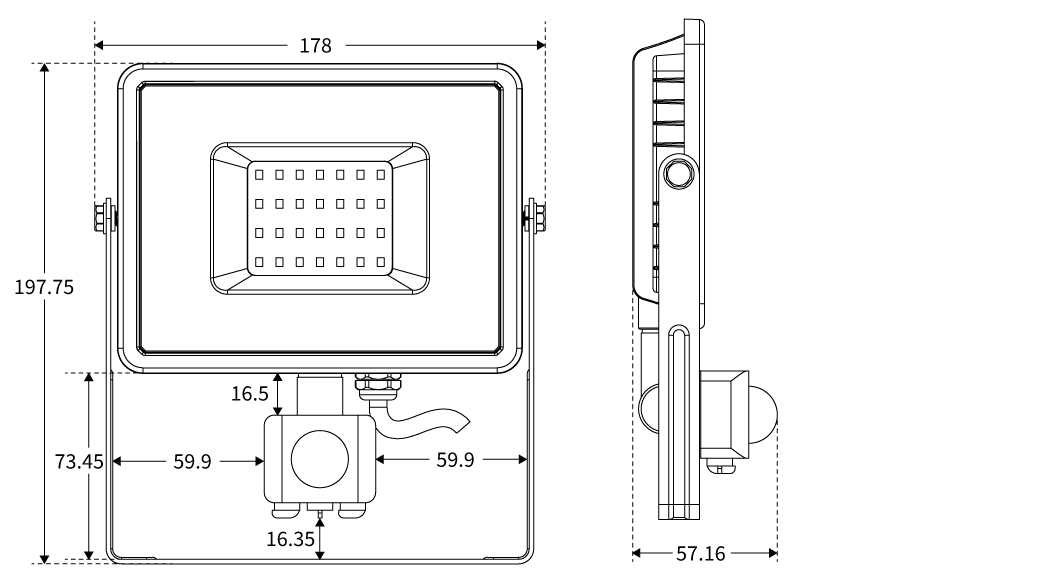

DIMENSIONS

Onyx 30W security flood

Onyx Security Flood
Lumen output
Lumen output
Colour Temperature
Colour Temperature
Wattage
Wattage
IP Rating
IP Rating
Warranty
Warranty
KEy Features

Perfect for a wide range of applications, this warm light comes with a PIR sensor which is IP65 rated. The Onyx security flood comes with a 1m cable and a 360 degree bracket for easy mounting.

Commercial applications

Residential, retail, warehouses, gardens, parks & landscaping

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
2400
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
30W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
1.05kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
DIMENSIONS (mm)
231x217x57mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
80lm/W
RATED LIFETIME (hrs)
25,000hrs
IP-RATING
65
WORKING ENVIRONMENT
-20°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
Daylight harvesting
WARRANTY
2
ON/OFF SENSOR
