Onyx 30W mini-flood

EL30XF4
KEY FEATURES

The Onyx Mini and Security floods are slimline, lightweight and offer a very attractive solution for powerful, energy-saving illumination. Available with or without PIR motion sensors, the Onyx Minis are easily installed and extremely reliable. The Onyx Minis are compatible with security cameras and all come with a 1m cable as standard.

Commercial applications

Residential, retail, warehouses, gardens, parks & landscaping

PRODUCT DATA
Lumens (lm)
2400
Daylight HArvesting
No
Colour Temperature (K)
4000
Dimmable
No
WATTAGE (W)
30
Emergency
No
WEIGHT (KG)
0.64kg
Microwave
No
Beam Angle
120°
On-Off Sensor
CRI
>70
Input Voltage
240Vac
Dimensions (m
174x217x35mm
Windage
Efficiency (LM/W)
80
REPLACEMENT FOR
300W Halogen flood
IP
65
Product Type
Floods
Working Environment
-20°C
Rated Lifetime (Hours)
25000
L70 Rating
OTHER

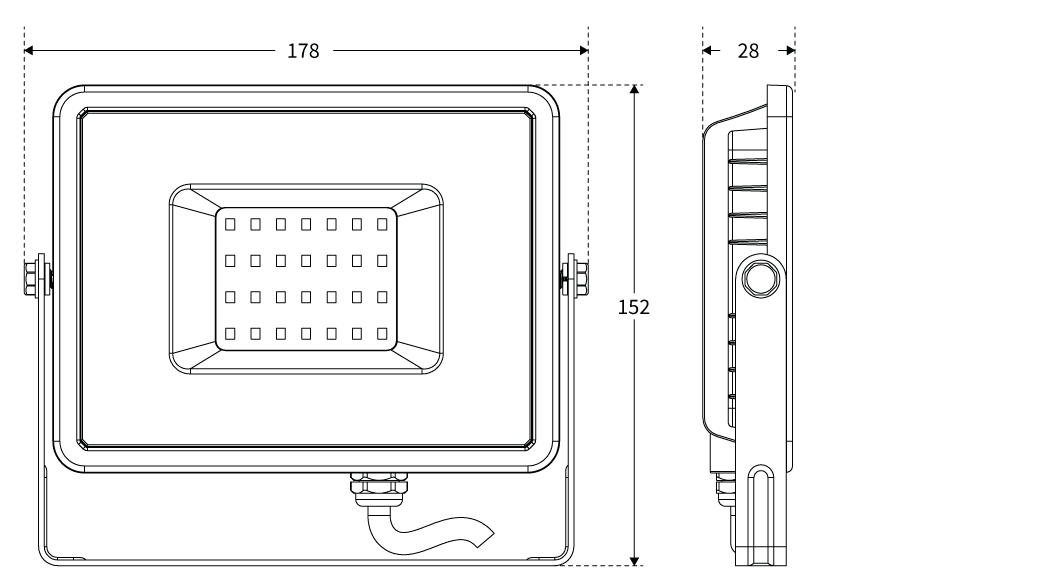

DIMENSIONS
POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

Onyx 30W mini-flood

warranty
2 years
lumen output
2400
wattage
30W
colour temperature
4000
IP rating
65
KEy Features

The Onyx Mini and Security floods are slimline, lightweight and offer a very attractive solution for powerful, energy-saving illumination. Available with or without PIR motion sensors, the Onyx Minis are easily installed and extremely reliable. The Onyx Minis are compatible with security cameras and all come with a 1m cable as standard.

Commercial applications

Residential, retail, warehouses, gardens, parks & landscaping

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
INSTALLATION instructions
Lumens (lm)
2400
Daylight HArvesting
No
Colour Temperature (K)
4000
Dimmable
No
WATTAGE (W)
30
Emergency
No
WEIGHT (KG)
0.64kg
Microwave
No
Beam Angle
120°
On-Off Sensor
CRI
>70
Input Voltage
240Vac
Dimensions (m
174x217x35mm
Windage
Efficiency (LM/W)
80
REPLACEMENT FOR
300W Halogen flood
IP
65
Product Type
Floods
Working Environment
-20°C
Rated Lifetime (Hrs)
25000
L70 Rating (hrs)
OTHER
