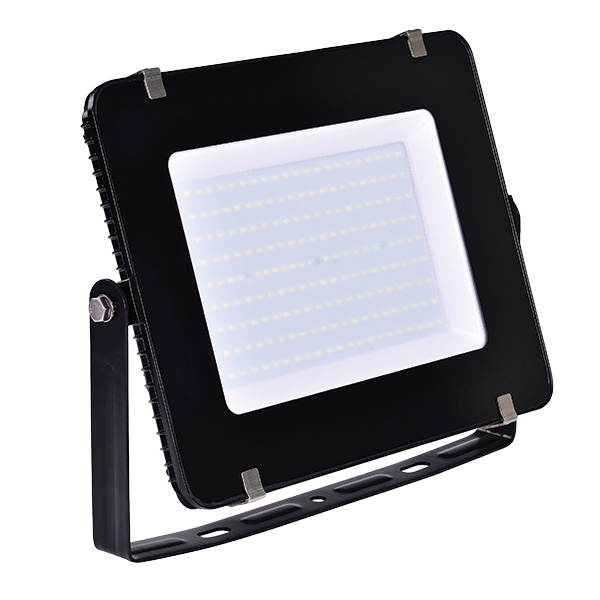

Onyx 300W flood

EL300X3F
PRODUCT DATA
LUMENS (lm)
36000
lm
DIMMABLE
WATTAGE (W)
300W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
4.77kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
0.25m2
CRI
>70
REPLACEMENT FOR
600W MH/SON
DIMENSIONS (mm)
529x415x55mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
120lm/W
RATED LIFETIME (hrs)
25,000hrs
IP
65
IK
HOUSING COLOUR
Black
WORKING ENVIRONMENT
-20°C to 40°C
WARRANTY
2 year
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The high output of the Onyx 300W flood (3rd generation) makes it a perfect replacement for a 500W MH/SON and is ideal as a high powered floodlight. The input voltage range of 100-240Vac allows for use in both commercial, industrial and construction site lighting.

Commercial applications

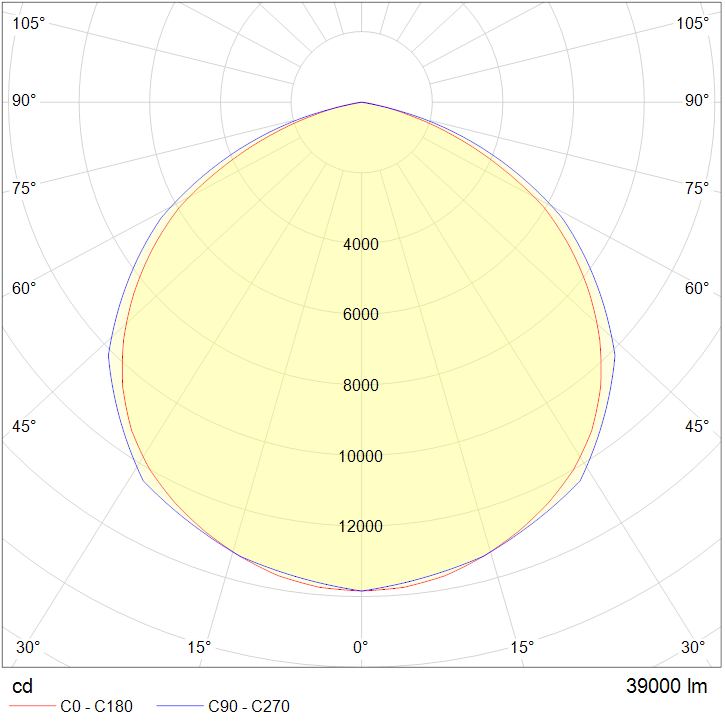

POLAR CURVE DIAGRAM
Polar Curve Image

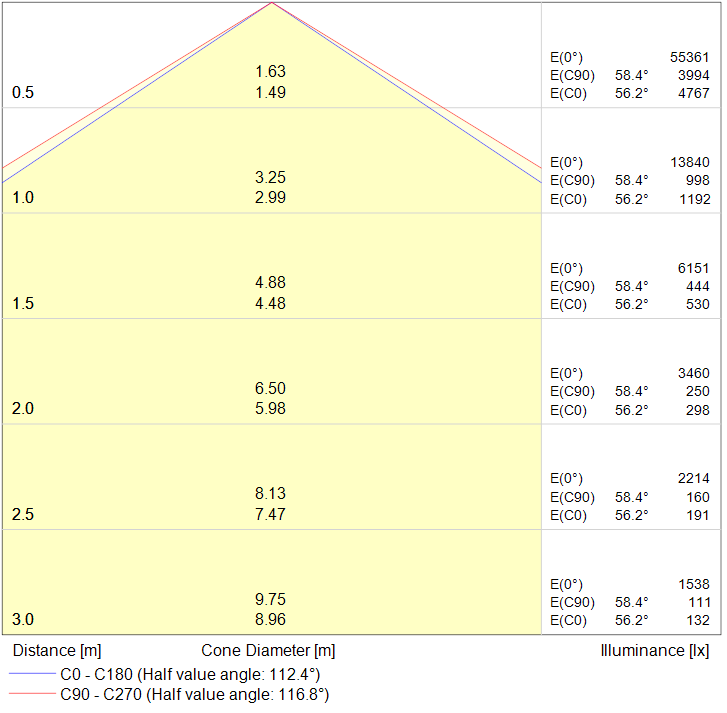

CONE DIAGRAM
Cone Diagram

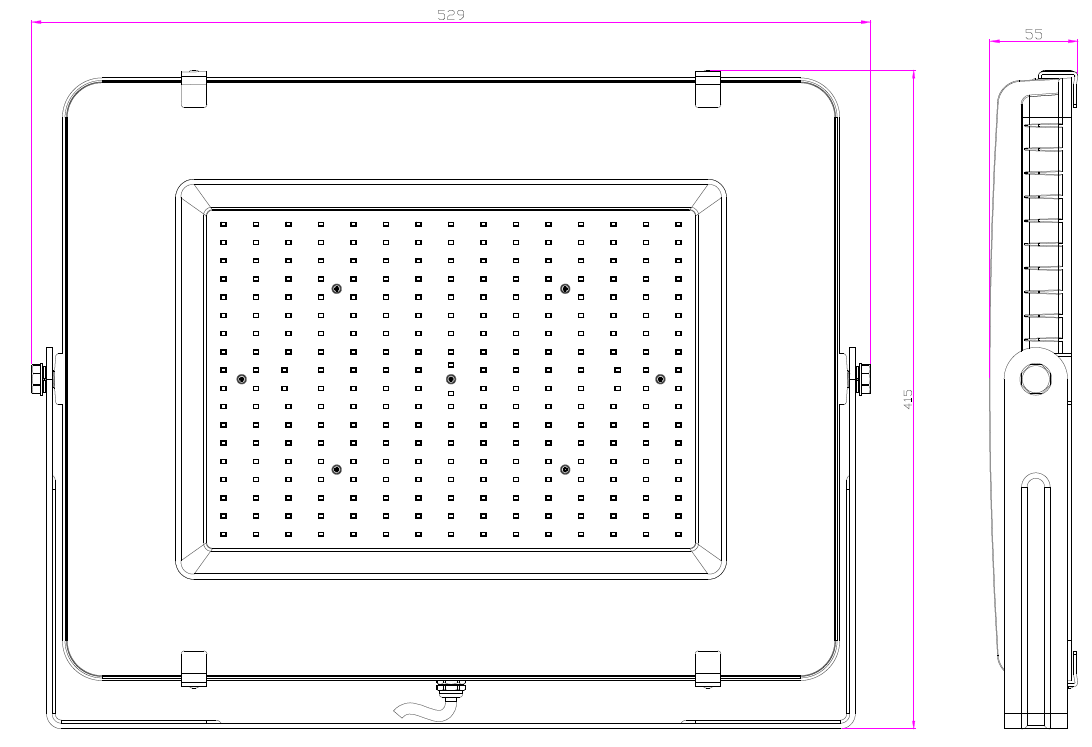

DIMENSIONS

Onyx 300W flood

Lumen output
Lumen output
Colour Temperature
Colour Temperature
Wattage
Wattage
IP Rating
IP Rating
Warranty
Warranty
KEy Features

The high output of the Onyx 300W flood (3rd generation) makes it a perfect replacement for a 500W MH/SON and is ideal as a high powered floodlight. The input voltage range of 100-240Vac allows for use in both commercial, industrial and construction site lighting.

Commercial applications

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
36000
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
300W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
4.77kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
0.25m2
CRI
>70
REPLACEMENT FOR
DIMENSIONS (mm)
529x415x55mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
120lm/W
RATED LIFETIME (hrs)
25,000hrs
IP-RATING
65
IK-RATING
WORKING ENVIRONMENT
-20°C to 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
2 year
HOUSING COLOUR
Black
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
