Onyx 300W flood

EL300X2F
PRODUCT DATA
LUMENS (lm)
36000
lm
DIMMABLE
WATTAGE (W)
300W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
4.77kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
600W MH/SON
DIMENSIONS (mm)
529x415x55mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
120lm/W
RATED LIFETIME (hrs)
25,000hrs
IP
65
WORKING ENVIRONMENT
-20°C to 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

This is a powerful flood which is suitable for a wide range of industrial applications. With 36000 lumen output, it makes a perfect replacement for a 500W MH/SON

Commercial applications

Warehouses, factories, sports facilities, museums, retail outlets, car-parks, footpaths, garden centres, parks, loading bays. Not suitable for swimming pool areas or for use as a low bay or high bay - please contact us for information on our products which are suitable for swimming pools and for low bay and high bay applications.

POLAR CURVE DIAGRAM
Polar Curve Image

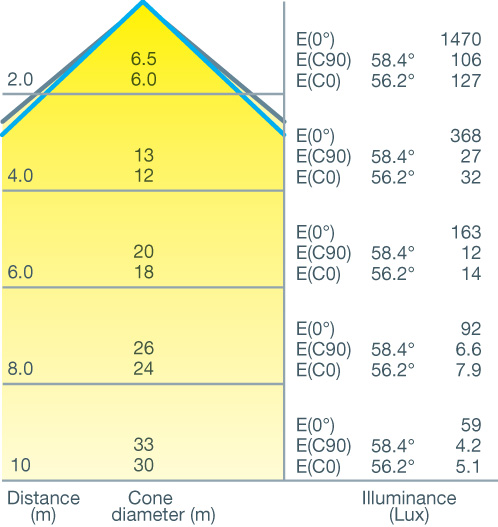

CONE DIAGRAM
Cone Diagram
DIMENSIONS

Onyx 300W flood

Onyx Standard Flood
Lumen output
Lumen output
Colour Temperature
Colour Temperature
Wattage
Wattage
IP Rating
IP Rating
Warranty
Warranty
KEy Features

This is a powerful flood which is suitable for a wide range of industrial applications. With 36000 lumen output, it makes a perfect replacement for a 500W MH/SON

Commercial applications

Warehouses, factories, sports facilities, museums, retail outlets, car-parks, footpaths, garden centres, parks, loading bays. Not suitable for swimming pool areas or for use as a low bay or high bay - please contact us for information on our products which are suitable for swimming pools and for low bay and high bay applications.

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
36000
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
300W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
4.77kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
DIMENSIONS (mm)
529x415x55mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
120lm/W
RATED LIFETIME (hrs)
25,000hrs
IP-RATING
65
WORKING ENVIRONMENT
-20°C to 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
2
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
