Onyx 20W security flood

EL20XF4PIR
PRODUCT DATA
LUMENS (lm)
1600
lm
DIMMABLE
WATTAGE (W)
20W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
0.55kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
250W halogen flood
DIMENSIONS (mm)
153x178x54mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
80lm/W
RATED LIFETIME (hrs)
25,000hrs
IP
65
WORKING ENVIRONMENT
-20°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
Daylight harvesting
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

Perfect for a wide range of applications, this warm light comes with a PIR sensor which is IP65 rated. The Onyx security flood comes with a 1m cable and a 360 degree bracket for easy mounting.

Commercial applications

Warehouses, factories, sports facilities, museums, retail outlets, car-parks, footpaths, garden centres, parks, loading bays. Not suitable for swimming pool areas or for use as a low bay or high bay - please contact us for information on our products which are suitable for swimming pools and for low bay and high bay applications.

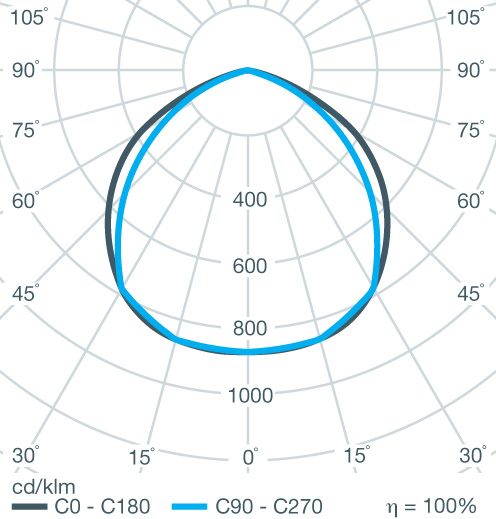

POLAR CURVE DIAGRAM
Polar Curve Image

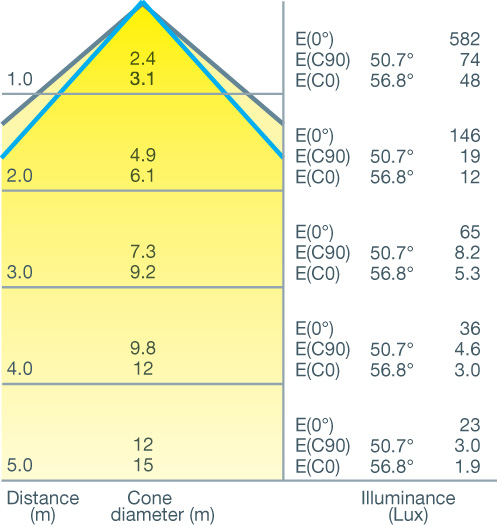

CONE DIAGRAM
Cone Diagram

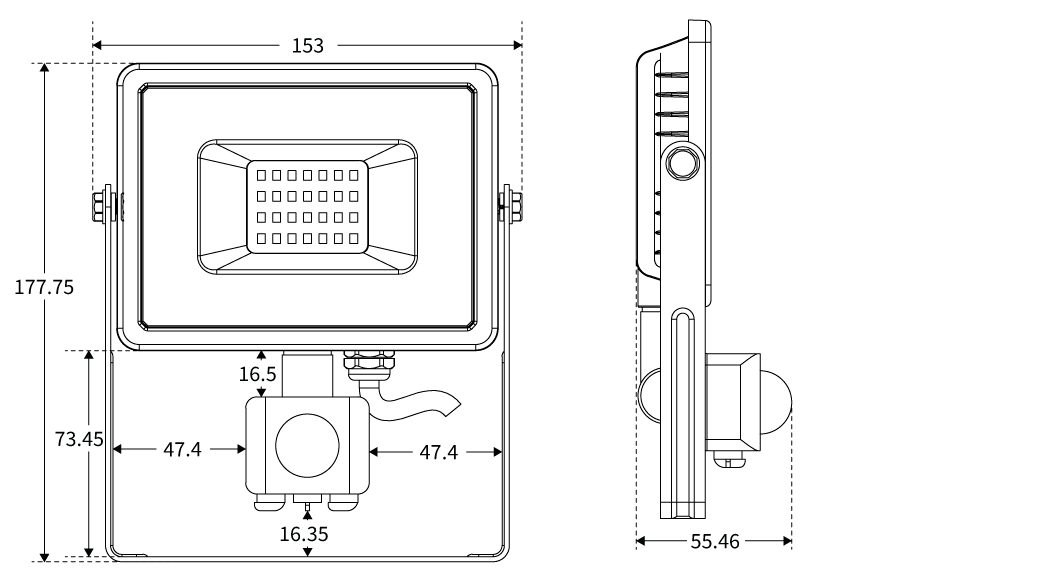

DIMENSIONS

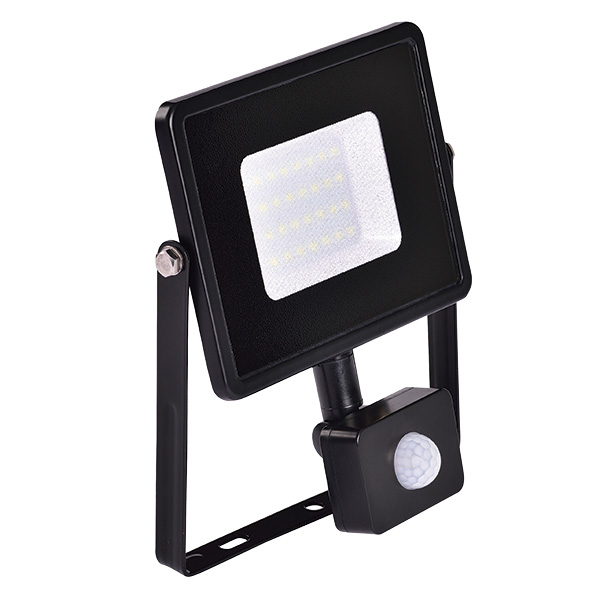

Onyx 20W security flood

Onyx Security Flood
Lumen output
Lumen output
Colour Temperature
Colour Temperature
Wattage
Wattage
IP Rating
IP Rating
Warranty
Warranty
KEy Features

Perfect for a wide range of applications, this warm light comes with a PIR sensor which is IP65 rated. The Onyx security flood comes with a 1m cable and a 360 degree bracket for easy mounting.

Commercial applications

Warehouses, factories, sports facilities, museums, retail outlets, car-parks, footpaths, garden centres, parks, loading bays. Not suitable for swimming pool areas or for use as a low bay or high bay - please contact us for information on our products which are suitable for swimming pools and for low bay and high bay applications.

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
1600
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
20W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
0.55kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>70
REPLACEMENT FOR
DIMENSIONS (mm)
153x178x54mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
80lm/W
RATED LIFETIME (hrs)
25,000hrs
IP-RATING
65
WORKING ENVIRONMENT
-20°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
Daylight harvesting
WARRANTY
2
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
