Onyx 200W flood

EL200X3F
PRODUCT DATA
LUMENS (lm)
26000
lm
DIMMABLE
WATTAGE (W)
200W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
4.6kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
0.18m2
CRI
>70
REPLACEMENT FOR
500W MH/SON
DIMENSIONS (mm)
418x368x56mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
130lm/W
RATED LIFETIME (hrs)
25,000hrs
IP
65
IK
HOUSING COLOUR
Black
WORKING ENVIRONMENT
-20°C to 40°C
WARRANTY
2 years
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The high output of the Onyx 200W flood (3rd generation) makes it a perfect replacement for a 500W MH/SON and is ideal as a high powered floodlight. The input voltage range of 110-240Vac allows for use in both commercial, industrial and construction site lighting. Additionally, by using our optional coastal marine upgrade version, users are able to install the Onyx in coastal marine areas.

Commercial applications

For external use on: Warehouses, factories, sports facilities, retail outlets, car-parks, construction sites, footpaths, parks, loading bays. Not suitable for swimming pool areas or for use as a low bay or high bay - please contact us for information on our products which are suitable.

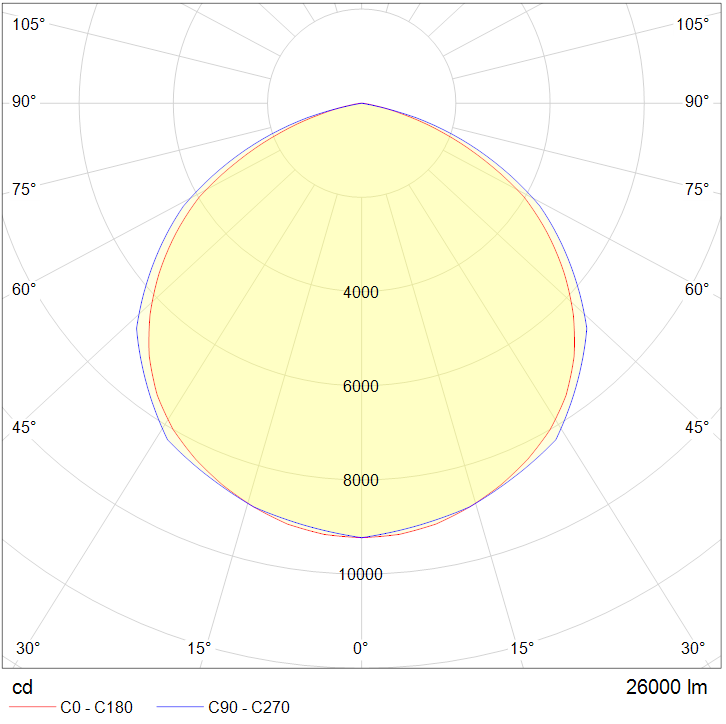

POLAR CURVE DIAGRAM
Polar Curve Image

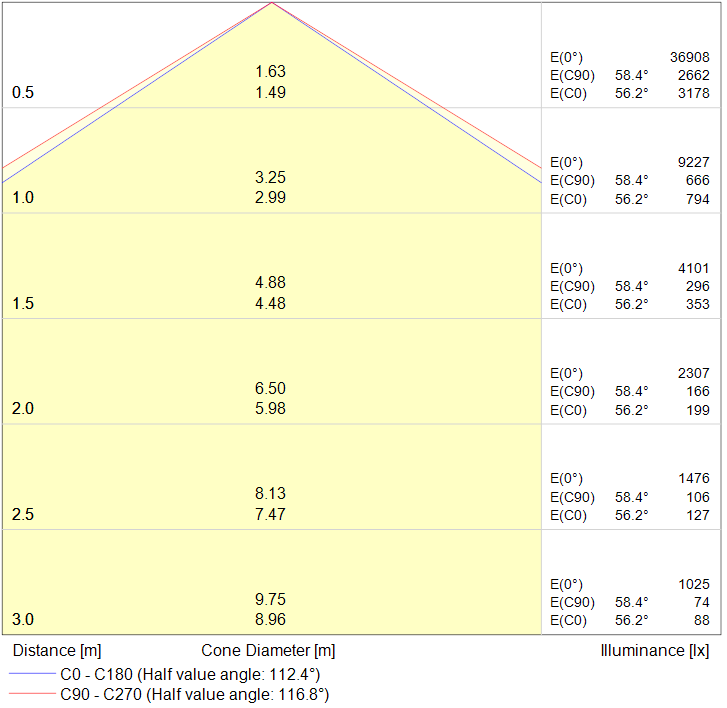

CONE DIAGRAM
Cone Diagram

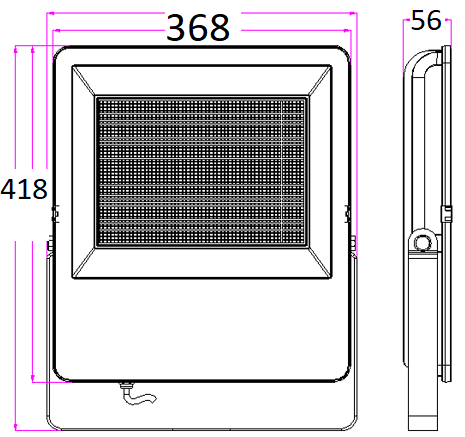

DIMENSIONS
Onyx Floods
Lumen output
Lumen output
Colour Temperature
Colour Temperature
Wattage
Wattage
IP Rating
IP Rating
Warranty
Warranty
KEy Features

The high output of the Onyx 200W flood (3rd generation) makes it a perfect replacement for a 500W MH/SON and is ideal as a high powered floodlight. The input voltage range of 110-240Vac allows for use in both commercial, industrial and construction site lighting. Additionally, by using our optional coastal marine upgrade version, users are able to install the Onyx in coastal marine areas.

Commercial applications

For external use on: Warehouses, factories, sports facilities, retail outlets, car-parks, construction sites, footpaths, parks, loading bays. Not suitable for swimming pool areas or for use as a low bay or high bay - please contact us for information on our products which are suitable.

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
26000
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
200W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
4.6kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
0.18m2
CRI
>70
REPLACEMENT FOR
DIMENSIONS (mm)
418x368x56mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
130lm/W
RATED LIFETIME (hrs)
25,000hrs
IP-RATING
65
IK-RATING
WORKING ENVIRONMENT
-20°C to 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
2 years
HOUSING COLOUR
Black
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
