Onyx 150W flood
EL150X3F
PRODUCT DATA
LUMENS (lm)
19500
lm
DIMMABLE
WATTAGE (W)
150W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
3.35kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
0.14m2
CRI
>70
REPLACEMENT FOR
400W MH/SON
DIMENSIONS (mm)
364x315x54mm
PRODUCT TYPE
Floods
EFFICIENCY (lm/w)
130lm/W
RATED LIFETIME (hrs)
25,000hrs
IP
65
IK
07
HOUSING COLOUR
WORKING ENVIRONMENT
-20°C to 40°C
WARRANTY
2 year
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES
The high output of the Onyx 150W flood (3rd generation) makes it a perfect replacement for a 400W MH/SON and is ideal as a high powered floodlight. The input voltage range of 110-240Vac allows for use in both commercial, industrial and construction site lighting. Additionally, by using our optional coastal marine upgrade version, users are able to install the Onyx in coastal marine areas.
Commercial applications
For external use on: Warehouses, factories, sports facilities, retail outlets, car-parks, construction sites, footpaths, parks, loading bays. Not suitable for swimming pool areas or for use as a low bay or high bay - please contact us for information on our products which are suitable.

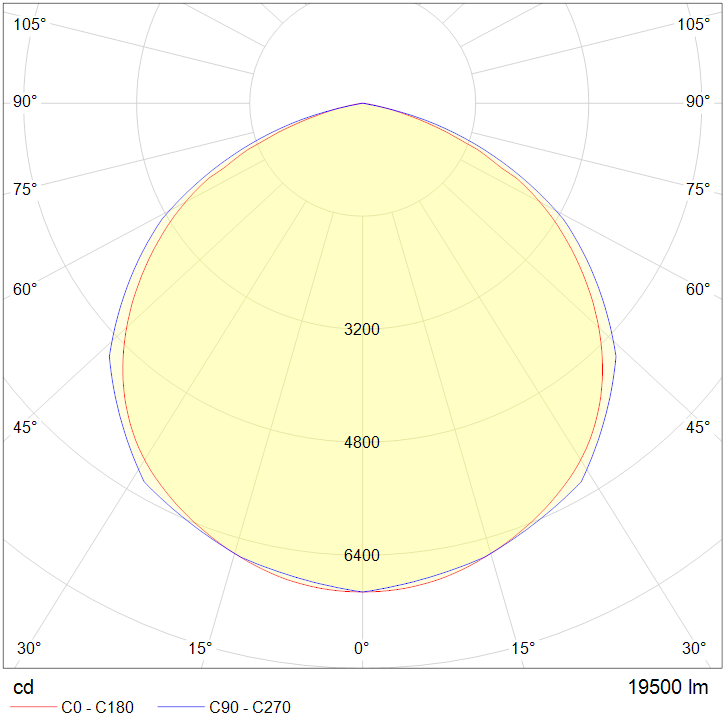

POLAR CURVE DIAGRAM

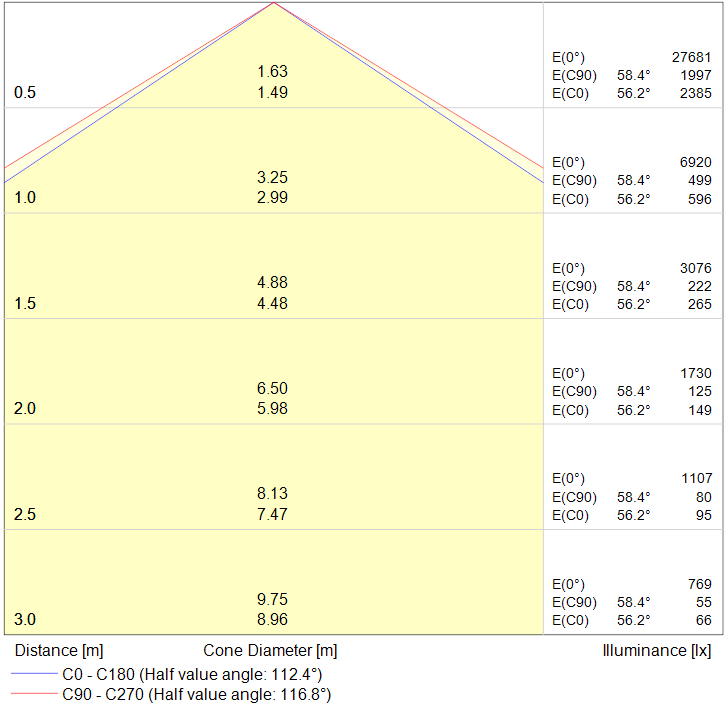

CONE DIAGRAM

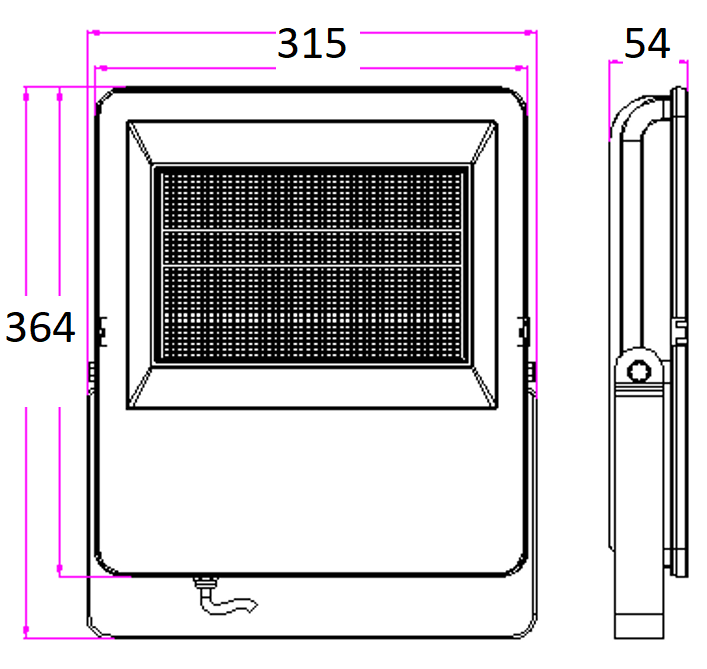

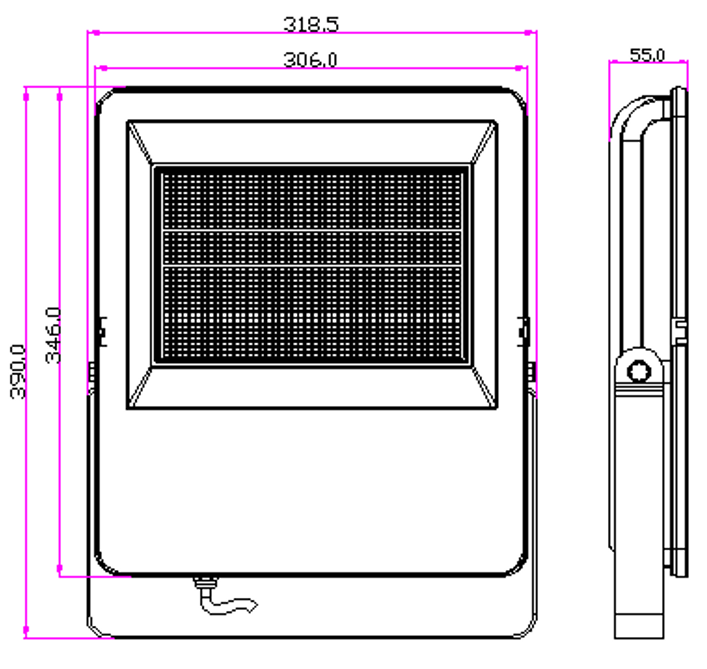

DIMENSIONS
