Horizon Tp(a) DALI Panel 40W 4000K
ELHSPNAD
PRODUCT DATA
LUMENS (lm)
4400
lm
DIMMABLE
DALI
WATTAGE (W)
40W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
1.7kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>80
REPLACEMENT FOR
Cat2 3 x 18W Fluorescent Tubes or Cat2 4 x 18W Fluorescent Tubes
DIMENSIONS (mm)
595 x 595 x 30mm
PRODUCT TYPE
Panels
EFFICIENCY (lm/w)
110lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
20
IK
HOUSING COLOUR
WORKING ENVIRONMENT
-10°C to 40°C
WARRANTY
5
L70 RATING (hrs)
>80000
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES
The Horizon DALI Panel is a high output, long-life, flicker-free, Tp(a) panel and is designed for projects where the highest quality is required to meet with a demanding technical specification. With four selectable lumen outputs this panel is a versatile solution to any job. There is a range of mounting and installation options. When fitted with the ELKEL3K emergency module the lumen output when the fitting is in emergency mode is 300lm
Commercial applications
Offices, restaurants, service zones, medical centres, corridors, communal areas, public transport buildings, schools and universities, government facilities

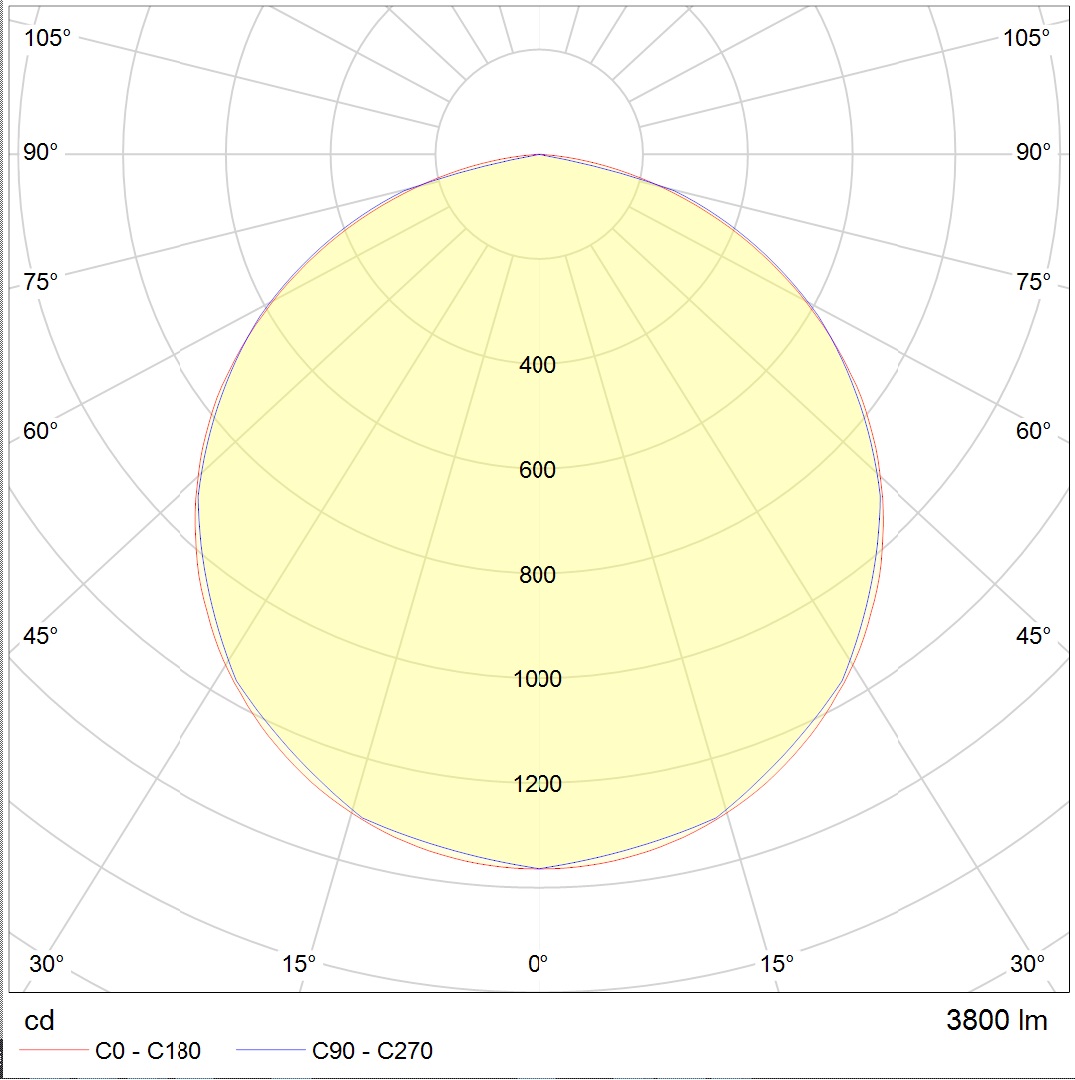

POLAR CURVE DIAGRAM
CONE DIAGRAM
DIMENSIONS
