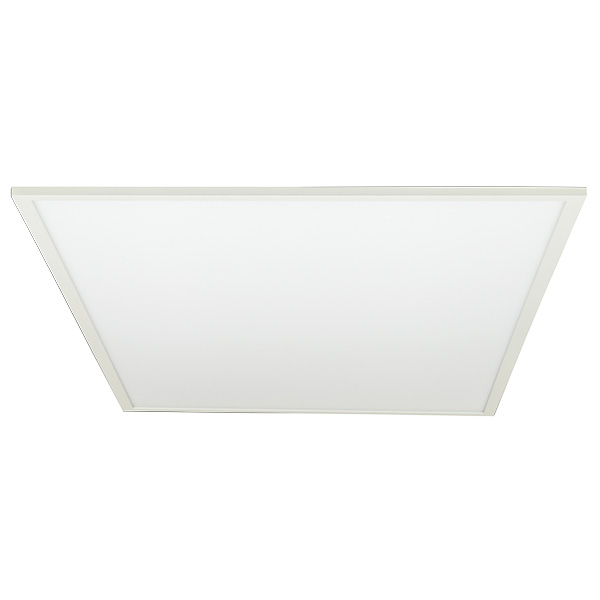

Horizon Select Panel 30-36W 5000K DALI-Dimmable

ELHSPCD
PRODUCT DATA
LUMENS (lm)
3800
lm
DIMMABLE
WATTAGE (W)
30-36W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
1.7kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>80
REPLACEMENT FOR
Cat2 3 x 18W Fluorescent Tubes or Cat2 4 x 18W Fluorescent Tubes
DIMENSIONS (mm)
595 x 595 x 30mm
PRODUCT TYPE
Panels
EFFICIENCY (lm/w)
106lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
20
WORKING ENVIRONMENT
-20°C to 40°C
L70 RATING (hrs)
>80000
DAYLIGHT HARVESTING
ON/OFF SENSOR
KEY FEATURES

The Horizon Premium Panel is a high output, long-life, flicker-free panel and is designed for projects where the highest quality is required to meet with a demanding technical specification. There is a range of mounting and installation options.

Commercial applications

Offices, restaurants, service zones, medical centres, corridors, communal areas, public transport buildings, schools and universities, government facilities

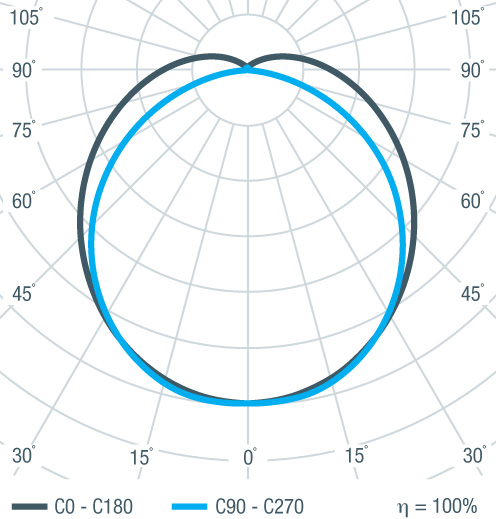

POLAR CURVE DIAGRAM
Polar Curve Image

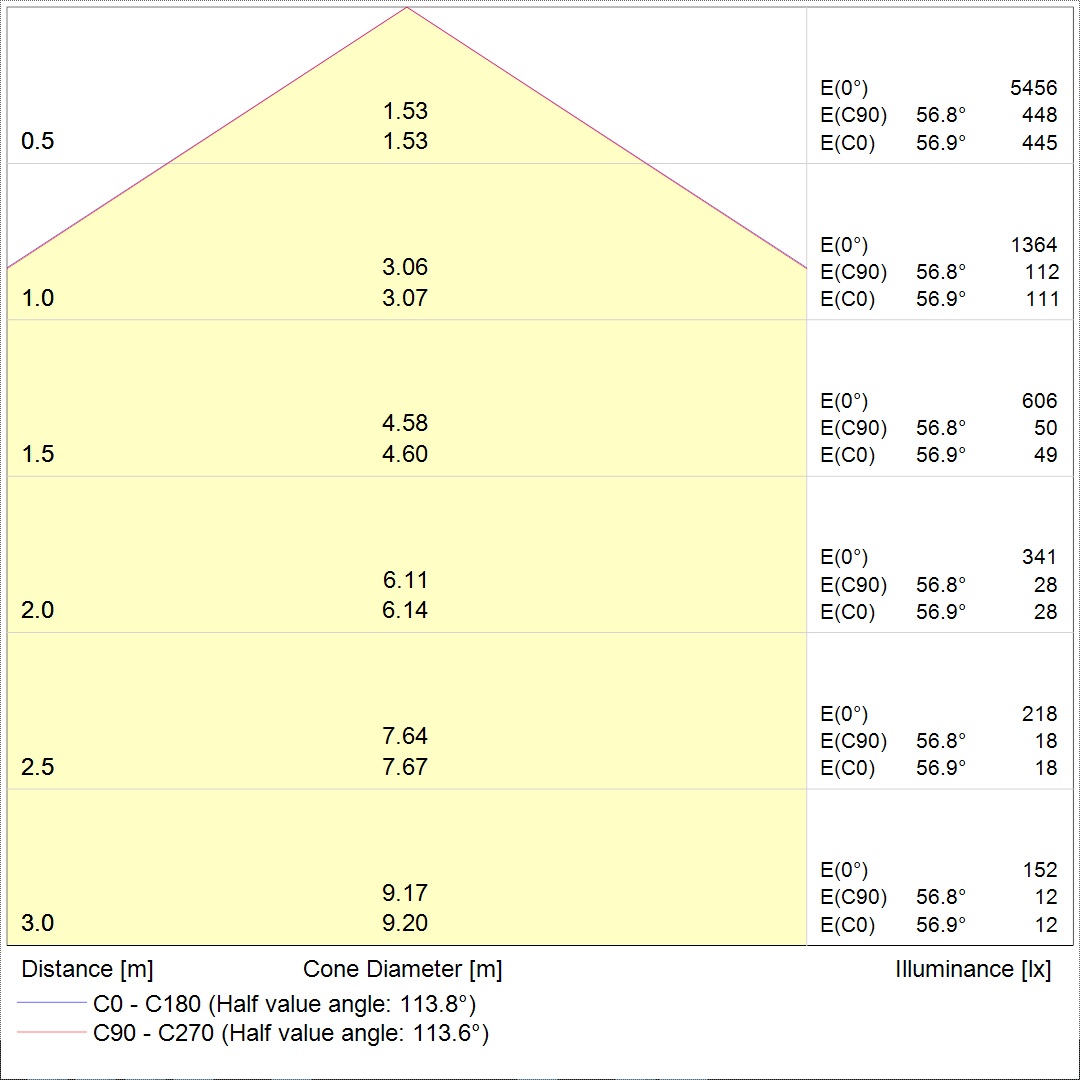

CONE DIAGRAM
Cone Diagram
DIMENSIONS

Horizon Select Panel 30-36W 5000K DALI-Dimmable

Lumen Range
Lumen Range
Colour Temperature
Colour Temperature
Warranty
Warranty
Dimmable
Dimmable
Flicker free
Flicker free
KEy Features

The Horizon Premium Panel is a high output, long-life, flicker-free panel and is designed for projects where the highest quality is required to meet with a demanding technical specification. There is a range of mounting and installation options.

Commercial applications

Offices, restaurants, service zones, medical centres, corridors, communal areas, public transport buildings, schools and universities, government facilities

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
3800
LUMEN OUTPUT RANGE (lm)
3200-3800lm
DIMMABLE
WATTAGE (W)
30-36W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
1.7kg
MICROWAVE
BEAM ANGLE
120°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
595 x 595 x 30mm
PRODUCT TYPE
Panels
EFFICIENCY (lm/w)
106lm/W
RATED LIFETIME (hrs)
50,000hrs
IP-RATING
20
WORKING ENVIRONMENT
-20°C to 40°C
L70 RATING (hrs)
>80000
DAYLIGHT HARVESTING
WARRANTY
5
ON/OFF SENSOR

Also available in this range
