Horizon Premium UGR<19 36W 4000k panel DALI-dimmable

EL36HPCUGRD
PRODUCT DATA
LUMENS (lm)
3400
DIMMABLE
Dimmable-DALI
WATTAGE (W)
36W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
No
WEIGHT (kg)
2.5kg
MICROWAVE
No
BEAM ANGLE
120°
WINDAGE
CRI
>80
REPLACEMENT FOR
4x 18W Fluorescent tubes
DIMENSIONS (mm)
595x595x11mm
PRODUCT TYPE
Panels
EFFICIENCY (lm/w)
100
RATED LIFETIME (hrs)
50000
IP
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
KEY FEATURES

The Horizon Premium Panel is robust and efficient and provides an excellent quality of light for a wide range of applications. The UGR diffuser creates a low glare environment which is comfortable for those working with screens. The unit is DALI-dimmable which makes it compatible with smart systems to allow for exactly the right level of light.

Commercial applications

Offices, restaurants, service zones, medical centres, corridors, communal areas, public transport buildings, schools and universities, government facilities

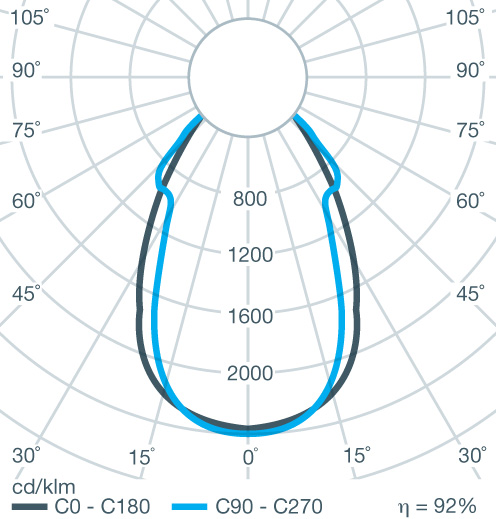

POLAR CURVE DIAGRAM
Polar Curve Image

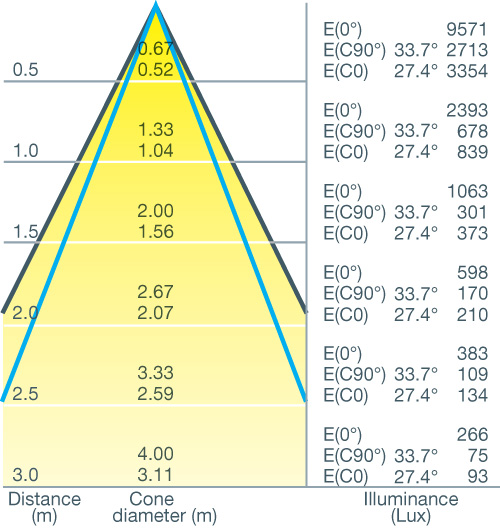

CONE DIAGRAM
Cone Diagram
DIMENSIONS

Horizon Premium UGR<19 36W 4000k panel DALI-dimmable

low glare
low glare
lumen output
lumen output
3400
wattage
wattage
36W
colour temperature
colour temperature
4000K
flicker-free
flicker-free
KEy Features

The Horizon Premium Panel is robust and efficient and provides an excellent quality of light for a wide range of applications. The UGR diffuser creates a low glare environment which is comfortable for those working with screens. The unit is DALI-dimmable which makes it compatible with smart systems to allow for exactly the right level of light.

Commercial applications

Offices, restaurants, service zones, medical centres, corridors, communal areas, public transport buildings, schools and universities, government facilities

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
INSTALLATION instructions
LUMENS (lm)
3400
DIMMABLE
Dimmable-DALI
WATTAGE (W)
36W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
No
WEIGHT (kg)
2.5kg
MICROWAVE
No
BEAM ANGLE
120°
WINDAGE
CRI
>80
REPLACEMENT FOR
4x 18W Fluorescent tubes
DIMENSIONS (mm)
595x595x11mm
PRODUCT TYPE
Panels
EFFICIENCY (lm/w)
100
RATED LIFETIME (hrs)
50000
IP
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
