Horizon Premium 36W 4000k panel 1-10Vdc dimmable
EL36HPPNA
PRODUCT DATA
LUMENS (lm)
3600
lm
DIMMABLE
1-10
WATTAGE (W)
36W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
No
WEIGHT (kg)
2.5kg
MICROWAVE
No
BEAM ANGLE
120°
WINDAGE
CRI
>80
REPLACEMENT FOR
4x 18W Fluorescent tubes
DIMENSIONS (mm)
595x595x11mm
PRODUCT TYPE
Panels
EFFICIENCY (lm/w)
100l/W
RATED LIFETIME (hrs)
50000
IP
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
ON/OFF SENSOR
KEY FEATURES
The Horizon Premium Panel is robust and efficient and provides an excellent quality of light for a wide range of applications. This unit is dimmable with 1-10Vdc to ensure that light levels are exactly to requirements.
Commercial applications
Offices, restaurants, service zones, medical centres, corridors, communal areas, public transport buildings, schools and universities, government facilities

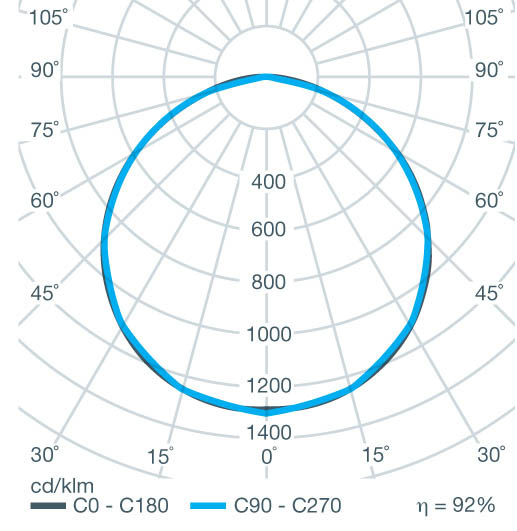

POLAR CURVE DIAGRAM

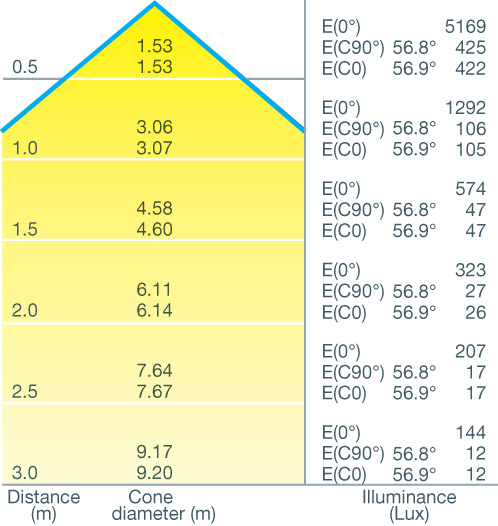

CONE DIAGRAM
DIMENSIONS
