Horizon Premium 28W 4000K panel 1-10Vdc dimmable

EL28HPPNA
PRODUCT DATA
LUMENS (lm)
2800
lm
DIMMABLE
1-10
WATTAGE (W)
28W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
No
WEIGHT (kg)
2.5kg
MICROWAVE
No
BEAM ANGLE
120°
WINDAGE
CRI
>80
REPLACEMENT FOR
3x 18W Fluorescent tubes
DIMENSIONS (mm)
595x595x11mm
PRODUCT TYPE
Panels
EFFICIENCY (lm/w)
100l/W
RATED LIFETIME (hrs)
50000
IP
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
ON/OFF SENSOR
KEY FEATURES

The Horizon Premium Panel is robust and efficient and provides an excellent quality of light for a wide range of applications. This unit is dimmable with 1-10Vdc to ensure that light levels are exactly to requirements.

Commercial applications

Offices, restaurants, service zones, medical centres, corridors, communal areas, public transport buildings, schools and universities, government facilities

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

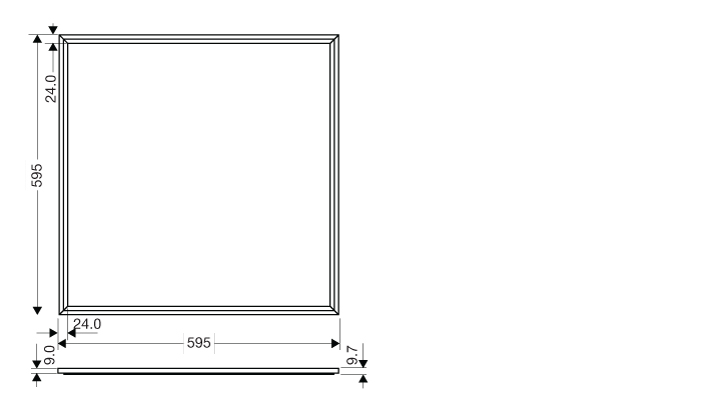

DIMENSIONS

Horizon Premium 28W 4000K panel 1-10Vdc dimmable

Lumen output
Lumen output
Colour Temperature
Colour Temperature
Wattage
Wattage
Dimmable
Dimmable
Flicker free
Flicker free
KEy Features

The Horizon Premium Panel is robust and efficient and provides an excellent quality of light for a wide range of applications. This unit is dimmable with 1-10Vdc to ensure that light levels are exactly to requirements.

Commercial applications

Offices, restaurants, service zones, medical centres, corridors, communal areas, public transport buildings, schools and universities, government facilities

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
2800
LUMEN OUTPUT RANGE (lm)
DIMMABLE
1-10
WATTAGE (W)
28W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
No
WEIGHT (kg)
2.5kg
MICROWAVE
No
BEAM ANGLE
120°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
595x595x11mm
PRODUCT TYPE
Panels
EFFICIENCY (lm/w)
100l/W
RATED LIFETIME (hrs)
50000
IP-RATING
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
WARRANTY
5
ON/OFF SENSOR
