Horizon Everyday 28W 5000K panel

EL28HEPC
PRODUCT DATA
LUMENS (lm)
2800
lm
DIMMABLE
No
WATTAGE (W)
28W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
No
WEIGHT (kg)
2.5kg
MICROWAVE
No
BEAM ANGLE
120°
WINDAGE
CRI
>80
REPLACEMENT FOR
3x 18W Fluorescent tubes
DIMENSIONS (mm)
595x595x11mm
PRODUCT TYPE
Panels
EFFICIENCY (lm/w)
100l/W
RATED LIFETIME (hrs)
30000
IP
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
ON/OFF SENSOR
KEY FEATURES

The Horizon Everyday 28W panel is ideal for offices and produces a sharp, even quality of light which creates a pleasant working environment without shadows.

Commercial applications

offices, restaurants, service zones, medical centres, corridors, communal areas

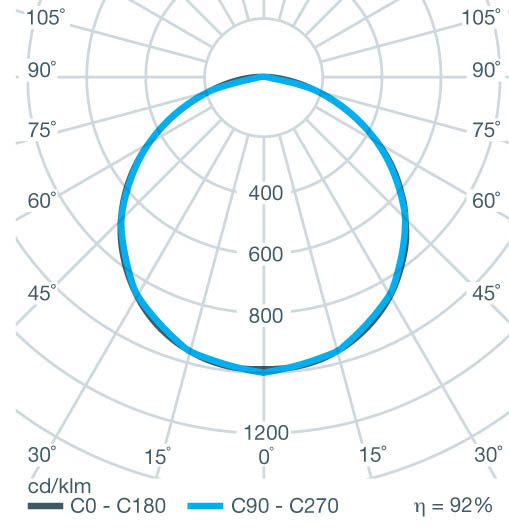

POLAR CURVE DIAGRAM
Polar Curve Image

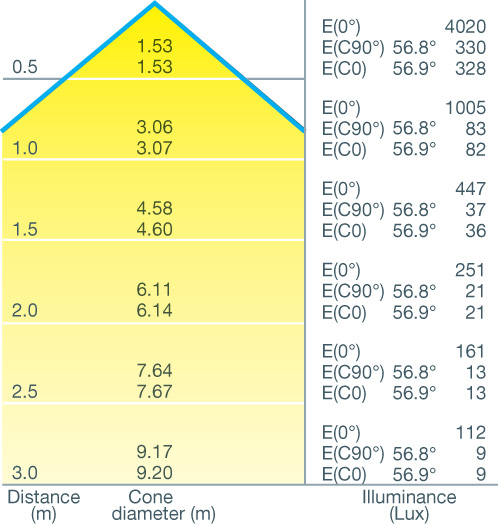

CONE DIAGRAM
Cone Diagram

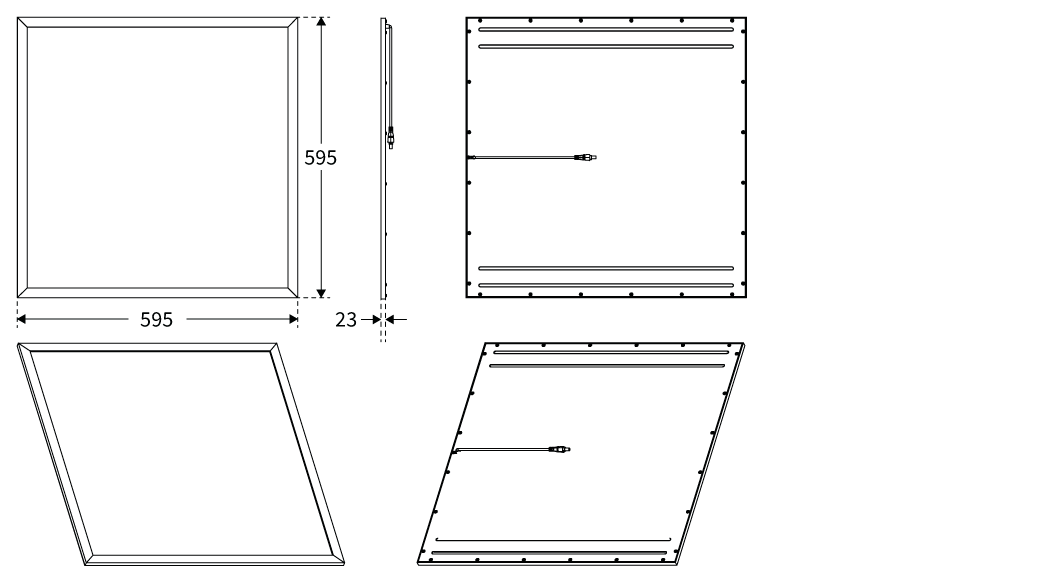

DIMENSIONS

Horizon Everyday 28W 5000K panel

Lumen output
Lumen output
Colour Temperature
Colour Temperature
Wattage
Wattage
Warranty
Warranty
KEy Features

The Horizon Everyday 28W panel is ideal for offices and produces a sharp, even quality of light which creates a pleasant working environment without shadows.

Commercial applications

offices, restaurants, service zones, medical centres, corridors, communal areas

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
2800
LUMEN OUTPUT RANGE (lm)
DIMMABLE
No
WATTAGE (W)
28W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
No
WEIGHT (kg)
2.5kg
MICROWAVE
No
BEAM ANGLE
120°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
595x595x11mm
PRODUCT TYPE
Panels
EFFICIENCY (lm/w)
100l/W
RATED LIFETIME (hrs)
30000
IP-RATING
20
WORKING ENVIRONMENT
-20°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
No
WARRANTY
3
ON/OFF SENSOR
