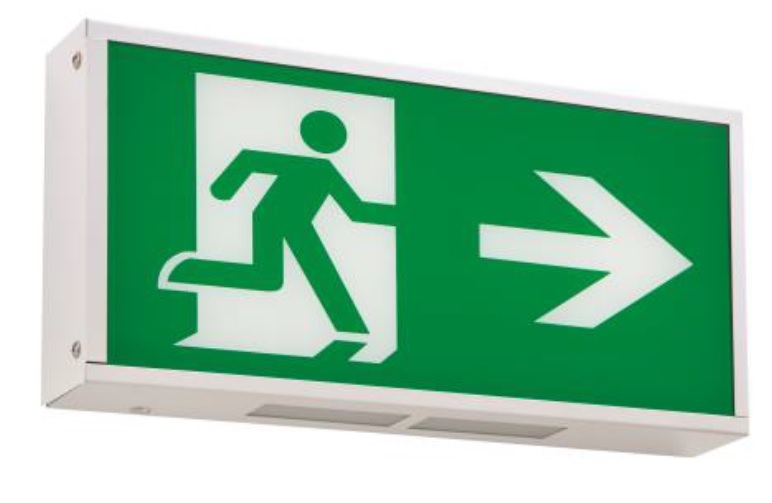

Hera Running Man Emergency Exit Back Box

EL3RMBBUE
PRODUCT DATA
LUMENS (lm)
140
lm
DIMMABLE
WATTAGE (W)
3W
COLOUR TEMPERATURE (K)
6000K
EMERGENCY
Emergency
WEIGHT (kg)
1.65kg
MICROWAVE
BEAM ANGLE
120º
WINDAGE
CRI
>80
REPLACEMENT FOR
CFL
DIMENSIONS (mm)
190x390x60mm
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
47lm/W
RATED LIFETIME (hrs)
IP
IP20
WORKING ENVIRONMENT
5-35ºC
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The 3W non maintained emergency back box is compliant with EN 60598-2-22 and has a 3hr duration. The fitting comes with an UP ARROW LEGEND as standard, a DOWN, LEFT or RIGHT ARROW LEGEND is available upon request

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram
DIMENSIONS

Hera Running Man Emergency Exit Back Box

Hera Emergency
Emergency
Emergency
Lumen output
Lumen output
Wattage
Wattage
KEy Features

The 3W non maintained emergency back box is compliant with EN 60598-2-22 and has a 3hr duration. The fitting comes with an UP ARROW LEGEND as standard, a DOWN, LEFT or RIGHT ARROW LEGEND is available upon request

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
140
LUMEN OUTPUT RANGE (lm)
140lm
DIMMABLE
WATTAGE (W)
3W
COLOUR TEMPERATURE (K)
6000K
EMERGENCY
Emergency
WEIGHT (kg)
1.65kg
MICROWAVE
BEAM ANGLE
120º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
190x390x60mm
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
47lm/W
RATED LIFETIME (hrs)
IP-RATING
IP20
WORKING ENVIRONMENT
5-35ºC
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
1yr
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
