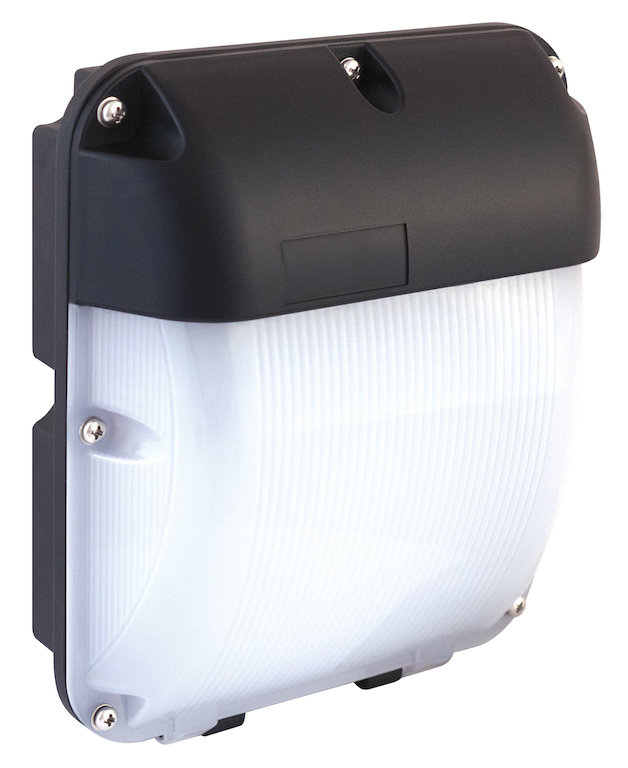

Hera IP65 Wallpack Utility Light

EL10WP
PRODUCT DATA
LUMENS (lm)
1500
lm
DIMMABLE
WATTAGE (W)
22W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
0.75kg
MICROWAVE
BEAM ANGLE
110º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
221x207x82mm
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
68lm/W
RATED LIFETIME (hrs)
50000hrs
IP
IP65
IK
HOUSING COLOUR
WORKING ENVIRONMENT
-40-60ºC
WARRANTY
2yr
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The Hera 22W Wallpack utility light is ideal for outdoor use because of its IP65 rating and it's anti-glare diffuser. The rear cooling fins prevent overheating and the push connectors make wiring very easy.

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities, wet rooms

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram
DIMENSIONS
Hera Utility
IP Rating
IP Rating
Lumen output
Lumen output
Colour Temperature
Colour Temperature
Low glare
Low glare
KEy Features

The Hera 22W Wallpack utility light is ideal for outdoor use because of its IP65 rating and it's anti-glare diffuser. The rear cooling fins prevent overheating and the push connectors make wiring very easy.

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities, wet rooms

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
1500
LUMEN OUTPUT RANGE (lm)
1500lm
DIMMABLE
WATTAGE (W)
22W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
0.75kg
MICROWAVE
BEAM ANGLE
110º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
221x207x82mm
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
68lm/W
RATED LIFETIME (hrs)
50000hrs
IP-RATING
IP65
IK-RATING
WORKING ENVIRONMENT
-40-60ºC
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
2yr
HOUSING COLOUR
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm

Also available in this range
