Hera Emergency Spot Downlight Black Housing

EL1HDLBE
PRODUCT DATA
LUMENS (lm)
120
lm
DIMMABLE
WATTAGE (W)
1W
COLOUR TEMPERATURE (K)
6500K
EMERGENCY
Emergency
WEIGHT (kg)
0.31kg
MICROWAVE
BEAM ANGLE
120º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
Lamp head φ50×21mm Converter 250x36x27mm
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
120lm/W
RATED LIFETIME (hrs)
IP
IP20
IK
HOUSING COLOUR
WORKING ENVIRONMENT
5-35ºC
WARRANTY
2yr
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The 1W emergency spot downlight is a non-maintained fitting, and is compliant with EN 60598-1 &EN 60598-2. The bezel diameter is 50mm with 43-44mm diameter cutout.

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities

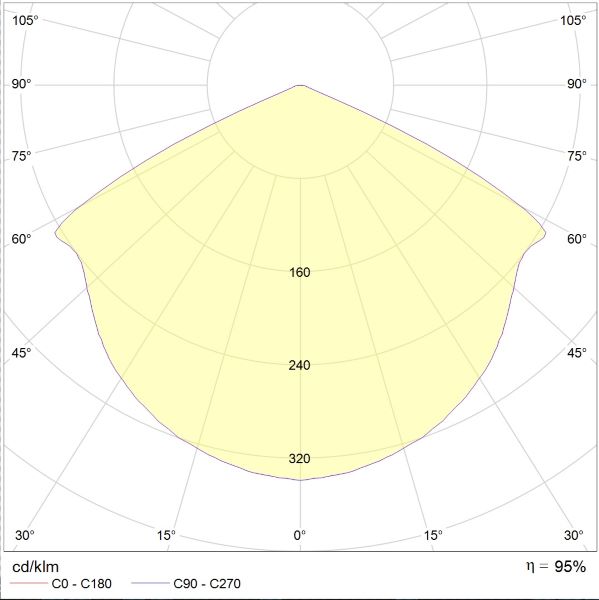

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

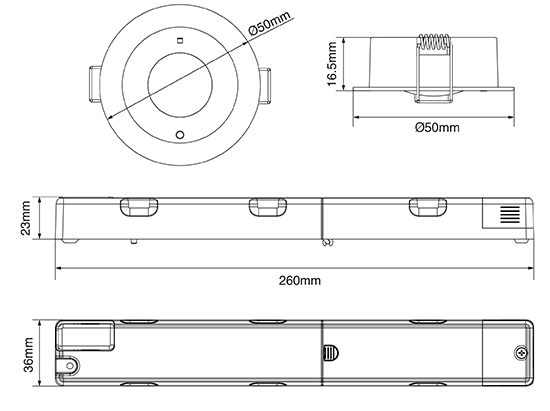

DIMENSIONS

Hera Emergency Spot Downlight Black Housing

Hera Emergency
Emergency
Emergency
IP Rating
IP Rating
Lumen output
Lumen output
KEy Features

The 1W emergency spot downlight is a non-maintained fitting, and is compliant with EN 60598-1 &EN 60598-2. The bezel diameter is 50mm with 43-44mm diameter cutout.

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
120
LUMEN OUTPUT RANGE (lm)
120lm
DIMMABLE
WATTAGE (W)
1W
COLOUR TEMPERATURE (K)
6500K
EMERGENCY
Emergency
WEIGHT (kg)
0.31kg
MICROWAVE
BEAM ANGLE
120º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
Lamp head φ50×21mm Converter 250x36x27mm
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
120lm/W
RATED LIFETIME (hrs)
IP-RATING
IP20
IK-RATING
WORKING ENVIRONMENT
5-35ºC
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
2yr
HOUSING COLOUR
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
