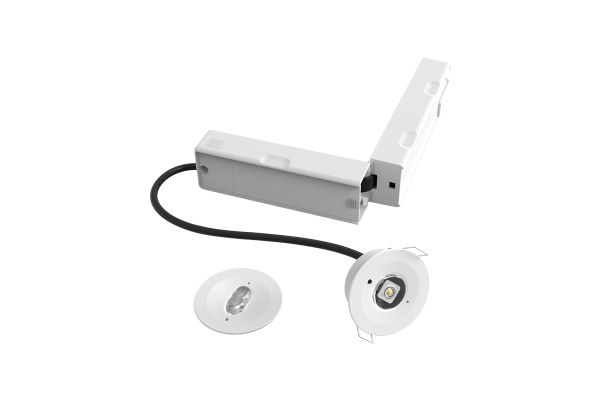

Hera Emergency Spot Downlight

EL3HDLE
PRODUCT DATA
LUMENS (lm)
120
lm
DIMMABLE
WATTAGE (W)
3W
COLOUR TEMPERATURE (K)
6000K
EMERGENCY
Emergency
WEIGHT (kg)
0.31kg
MICROWAVE
BEAM ANGLE
120º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
190x60x30mm for battery and module, 40mm dia for fitting
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
40lm/W
RATED LIFETIME (hrs)
IP
IP20
IK
HOUSING COLOUR
WORKING ENVIRONMENT
0-50ºC
WARRANTY
1yr
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The 3W emergency spot downlight is a non-maintained fitting, and is compliant with EN 60598-1 &EN 60598-2. The bezel diameter is 42mm with 35mm diameter cutout.

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram
DIMENSIONS

Hera Emergency Spot Downlight

Hera Emergency
Emergency
Emergency
IP Rating
IP Rating
Lumen output
Lumen output
KEy Features

The 3W emergency spot downlight is a non-maintained fitting, and is compliant with EN 60598-1 &EN 60598-2. The bezel diameter is 42mm with 35mm diameter cutout.

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
120
LUMEN OUTPUT RANGE (lm)
130lm
DIMMABLE
WATTAGE (W)
3W
COLOUR TEMPERATURE (K)
6000K
EMERGENCY
Emergency
WEIGHT (kg)
0.31kg
MICROWAVE
BEAM ANGLE
120º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
190x60x30mm for battery and module, 40mm dia for fitting
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
40lm/W
RATED LIFETIME (hrs)
IP-RATING
IP20
IK-RATING
WORKING ENVIRONMENT
0-50ºC
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
1yr
HOUSING COLOUR
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
