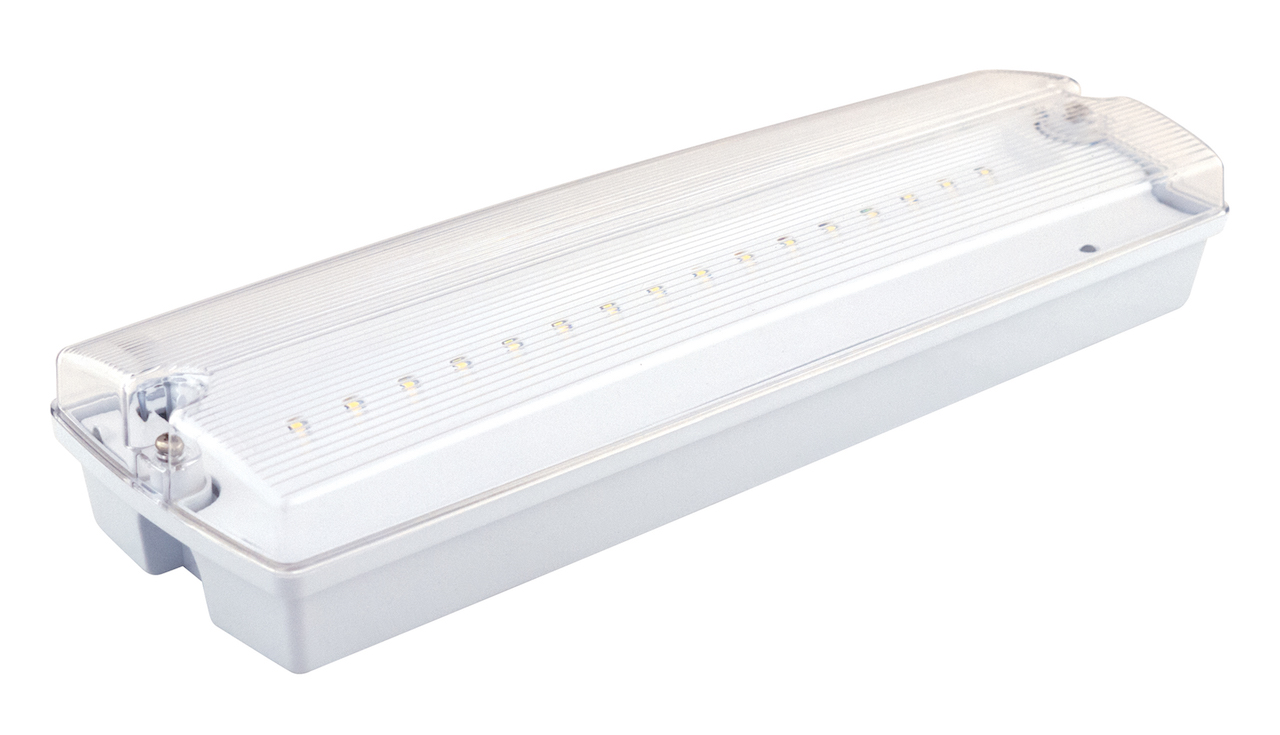

Hera Emergency Bulkhead 5W

EL5HBHE
PRODUCT DATA
LUMENS (lm)
220
lm
DIMMABLE
WATTAGE (W)
5W
COLOUR TEMPERATURE (K)
6000K
EMERGENCY
Emergency
WEIGHT (kg)
0.58kg
MICROWAVE
BEAM ANGLE
120º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
110x352x55mm
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
44lm/W
RATED LIFETIME (hrs)
IP
IP65
IK
HOUSING COLOUR
WORKING ENVIRONMENT
0-50ºC
WARRANTY
1yr
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The 5W emergency bulkhead can be maintained (3 hour) or non-maintained, by adjusting the wiring set-up (details available within the supplied instructions) and is compliant with EN 60598-1 &EN 60598-2. There are 20mm knockouts for easy cable management and a hinged gear tray for easy access

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities

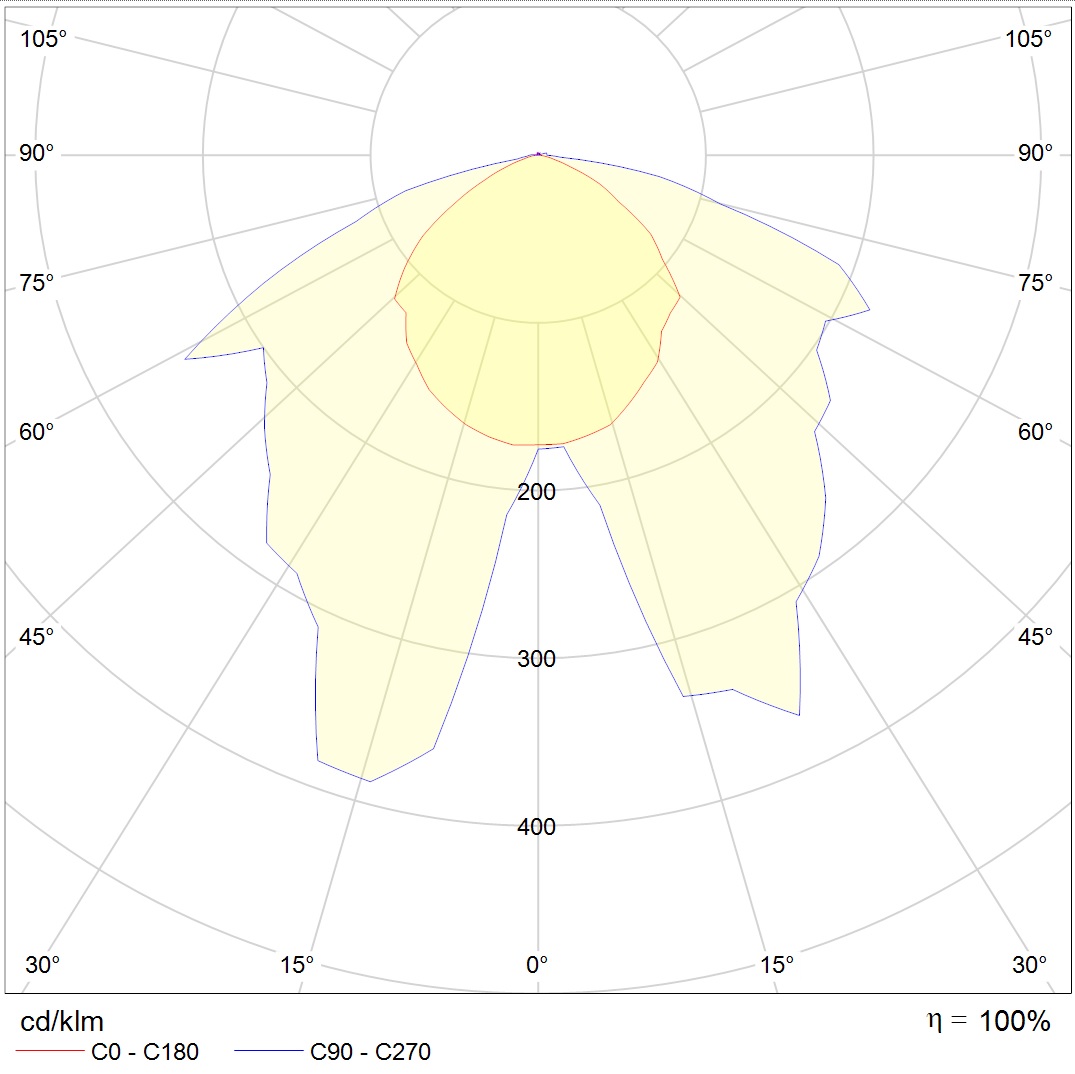

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram
DIMENSIONS

Hera Emergency Bulkhead 5W

Hera Emergency
Emergency
Emergency
IP Rating
IP Rating
Lumen output
Lumen output
KEy Features

The 5W emergency bulkhead can be maintained (3 hour) or non-maintained, by adjusting the wiring set-up (details available within the supplied instructions) and is compliant with EN 60598-1 &EN 60598-2. There are 20mm knockouts for easy cable management and a hinged gear tray for easy access

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
220
LUMEN OUTPUT RANGE (lm)
220lm
DIMMABLE
WATTAGE (W)
5W
COLOUR TEMPERATURE (K)
6000K
EMERGENCY
Emergency
WEIGHT (kg)
0.58kg
MICROWAVE
BEAM ANGLE
120º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
110x352x55mm
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
44lm/W
RATED LIFETIME (hrs)
IP-RATING
IP65
IK-RATING
WORKING ENVIRONMENT
0-50ºC
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
1yr
HOUSING COLOUR
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm

Also available in this range
