Novah Ltd | Specialists in LED Lighting | Hellion High Bay 200W 28000 lumens with daylight harvesting

EL200HFBH

PRODUCT DATA

LUMENS (lm)

28000

lm

DIMMABLE

WATTAGE (W)

200W

COLOUR TEMPERATURE (K)

5000K

EMERGENCY

WEIGHT (kg)

7kg

MICROWAVE

BEAM ANGLE

110x120°

WINDAGE

CRI

>80

REPLACEMENT FOR

4x80W T5 High output

DIMENSIONS (mm)

1090x322x60mm

PRODUCT TYPE

High bays

EFFICIENCY (lm/w)

140lm/W

RATED LIFETIME (hrs)

50,000hrs

IP

20

IK

HOUSING COLOUR

WORKING ENVIRONMENT

-35°C to 35°C

WARRANTY

5

L70 RATING (hrs)

DAYLIGHT HARVESTING

Daylight harvesting

ON/OFF SENSOR

SELECTABLE SETTINGS

WATTAGE

LUMENS

W

lm

W

lm

W

lm

W

lm

WATTAGE

LUMENS

W

lm

W

lm

W

lm

W

lm

KEY FEATURES

An ideal replacement for MH or fluorescent Low Bays, the Hellion 28000 lumens with daylight harvesting is low glare with clear or frosted polycarbonate lenses, in-built emergency options housed in a lightweight and slimline, white, aluminium casing. It works in conjunction with natural light to ensure an even light distribution which is comfortable to work in and energy efficient.

Commercial applications

Warehouse racking, manufacturing production, depots, airports, retails outlets, exhibition centres.

POLAR CURVE DIAGRAM

Polar Curve Image

CONE DIAGRAM

Cone Diagram

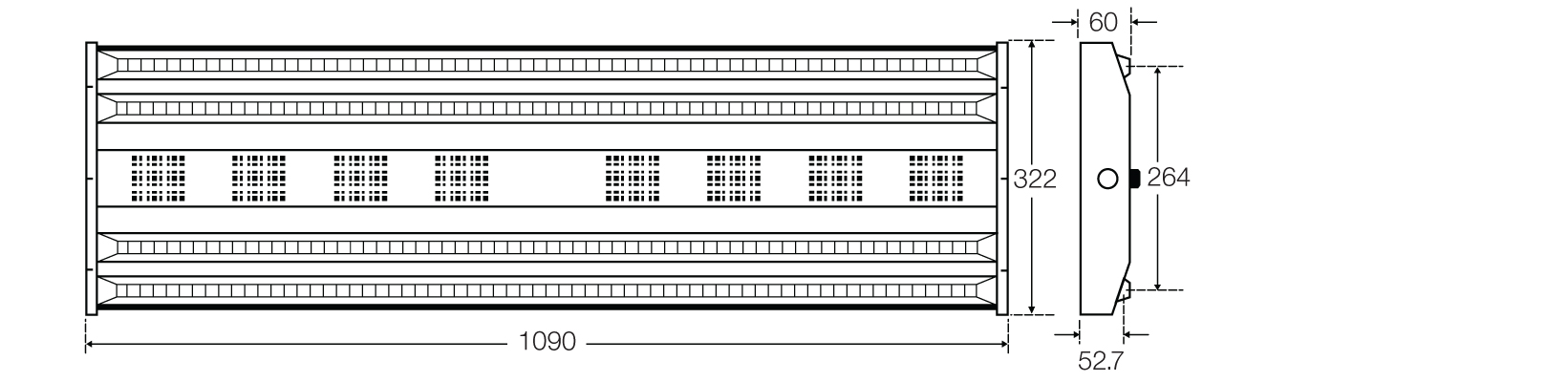

DIMENSIONS

Back to overview

Hellion High Bay

Lumen output

Colour Temperature

Colour Temperature

Warranty

Daylight Harvesting

Daylight Harvesting

KEy Features

An ideal replacement for MH or fluorescent Low Bays, the Hellion 28000 lumens with daylight harvesting is low glare with clear or frosted polycarbonate lenses, in-built emergency options housed in a lightweight and slimline, white, aluminium casing. It works in conjunction with natural light to ensure an even light distribution which is comfortable to work in and energy efficient.

Commercial applications

Warehouse racking, manufacturing production, depots, airports, retails outlets, exhibition centres.

PHOTOMETRIC (LDT) FILES

PRODUCT DATA SHEET PDF

Notice for Microsoft Edge users

INSTALLATION instructions

LUMEN OUTPUT (lm)

28000

LUMEN OUTPUT RANGE (lm)

DIMMABLE

WATTAGE (W)

200W

COLOUR TEMPERATURE (K)

5000K

EMERGENCY

WEIGHT (kg)

7kg

MICROWAVE

BEAM ANGLE

110x120°

WINDAGE

CRI

>80

REPLACEMENT FOR

4x80W T5 High output

DIMENSIONS (mm)

1090x322x60mm

PRODUCT TYPE

High bays

EFFICIENCY (lm/w)

140lm/W

RATED LIFETIME (hrs)

50,000hrs

IP-RATING

20

IK-RATING

WORKING ENVIRONMENT

-35°C to 35°C

L70 RATING (hrs)

DAYLIGHT HARVESTING

Daylight harvesting

WARRANTY

5

HOUSING COLOUR

ON/OFF SENSOR

WATTAGE

LUMENS

W

lm

W

lm

W

lm

W

lm

W

lm

W

lm

W

lm

W

lm

Also available in this range

Product code

Product name

Wattage

Lumens

Colour temp.

Replacement for

Hellion High Bay 150W 21000 lumens

4x54W T5 high output

Hellion High Bay 150W 21000 lumens with emergency function

4x54W T5 high output

Hellion High Bay 150W 21000 lumens with emergency self test function

4x54W T5 high output

Hellion High Bay 150W 21000 lumens with microwave Sensor

4x54W T5 high output

Hellion High Bay 150W 21000 lumens with emergency function and microwave Sensor

4x54W T5 high output

Hellion High Bay 150W 21000 lumens with emergency self test function and microwave Sensor

4x54W T5 high output

Hellion High Bay 150W 21000 lumens with daylight harvesting

4x54W T5 high output

Hellion High Bay 150W 21000 lumens with emergency function and daylight harvesting

4x54W T5 high output

Hellion High Bay 150W 21000 lumens with Microwave Dimmable + Daylight Harvesting

4x54W T5 high output

Hellion High Bay 150W 21000 lumens with emergency self test function and daylight harvesting

4x54W T5 high output

Hellion High Bay 200W 28000 lumens

4x80W T5 High output

Hellion High Bay 200W 28000 lumens with emergency function

4x80W T5 High output

Hellion High Bay 200W 28000 lumens with emergency self test function

4x80W T5 High output

Hellion High Bay 200W 28000 lumens with microwave Sensor

4x80W T5 High output

Hellion High Bay 200W 28000 lumens with emergency function and microwave Sensor

4x80W T5 High output

Hellion High Bay 200W 28000 lumens with emergency self test function and microwave Sensor

4x80W T5 High output

Hellion High Bay 200W 28000 lumens with daylight harvesting

4x80W T5 High output

Hellion High Bay 200W 28000 lumens with Microwave Dimmable + Daylight Harvesting

4x80W T5 High output

Hellion High Bay 200W 28000 lumens with emergency function and daylight harvesting

4x80W T5 High output

Hellion High Bay 200W 28000 lumens with emergency self test function and daylight harvesting

4x80W T5 High output
