Hera Emergency Bulkhead 3W

EL3HBHE
PRODUCT DATA
LUMENS (lm)
130
lm
DIMMABLE
WATTAGE (W)
3W
COLOUR TEMPERATURE (K)
6000K
EMERGENCY
Emergency
WEIGHT (kg)
0.58kg
MICROWAVE
BEAM ANGLE
120º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
110x352x61mm
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
43lm/W
RATED LIFETIME (hrs)
IP
IP65
WORKING ENVIRONMENT
0-50ºC
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The 3W emergency bulkhead can be maintained (3 hour) or non-maintained, by adjusting the wiring set-up (details available within the supplied instructions) and is compliant with EN 60598-1 &EN 60598-2. There are 20mm knockouts for easy cable management and a hinged gear tray for easy access

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities

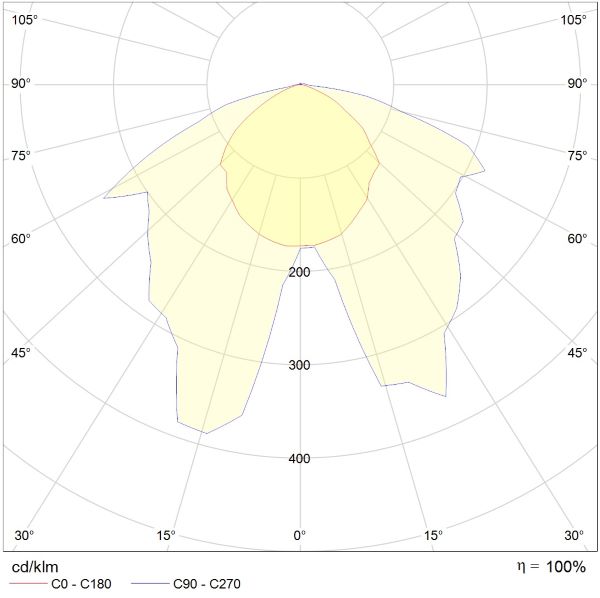

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram
DIMENSIONS

Hera Emergency Bulkhead 3W

Hera Emergency
Emergency
Emergency
IP Rating
IP Rating
Lumen output
Lumen output
KEy Features

The 3W emergency bulkhead can be maintained (3 hour) or non-maintained, by adjusting the wiring set-up (details available within the supplied instructions) and is compliant with EN 60598-1 &EN 60598-2. There are 20mm knockouts for easy cable management and a hinged gear tray for easy access

Commercial applications

Public areas, workshops, warehouses, offices, carparks, service zones, corridors, schools, universities

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
130
LUMEN OUTPUT RANGE (lm)
130lm
DIMMABLE
WATTAGE (W)
3W
COLOUR TEMPERATURE (K)
6000K
EMERGENCY
Emergency
WEIGHT (kg)
0.58kg
MICROWAVE
BEAM ANGLE
120º
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
110x352x61mm
PRODUCT TYPE
Accessories
EFFICIENCY (lm/w)
43lm/W
RATED LIFETIME (hrs)
IP-RATING
IP65
WORKING ENVIRONMENT
0-50ºC
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
1yr
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
