Ellipse 8" 18W Downlight Natural

EL818ED2N
KEY FEATURES

The Ellipse range of downlights are slimline, efficient and very simple to install - simply wire directly into the mains and clip into place. This versatile offering looks very attractive with a matt white bezel and an even diffused light. The Ellipse range can be used as the main source of light in a wide range of applications and will also perfectly compliment feature lighting and chandeliers without causing glare.

Commercial applications

Suitable locations include hotels, offices, bars, shops, restaurants hospitals and medical centres.

PRODUCT DATA
Lumens (lm)
1400
Daylight HArvesting
No
Colour Temperature (K)
4000K
Dimmable
Dimmable-DALI
WATTAGE (W)
18W
Emergency
Emergency
WEIGHT (KG)
.40kg
Microwave
No
Beam Angle
110°
On-Off Sensor
No
CRI
>80
Input Voltage
Dimensions (m
225Ø x 32mm (cut out 205mm Ø)
Windage
Efficiency (LM/W)
REPLACEMENT FOR
2 x 26W PL
IP
IP20
Product Type
Downlights
Working Environment
-20°C → 40°C
Rated Lifetime (Hours)
25000
L70 Rating
OTHER

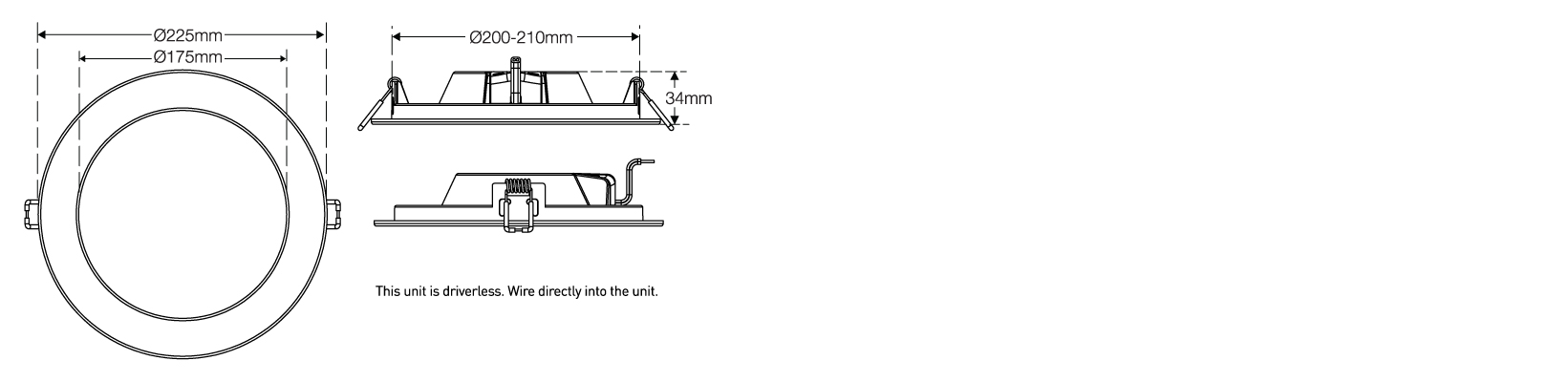

DIMENSIONS
POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

Ellipse 8" 18W Downlight Natural

Wattage
18
Lumen
1400
Emergency
Beam Angle
110º
Colour Temperature
4000K
KEy Features

The Ellipse range of downlights are slimline, efficient and very simple to install - simply wire directly into the mains and clip into place. This versatile offering looks very attractive with a matt white bezel and an even diffused light. The Ellipse range can be used as the main source of light in a wide range of applications and will also perfectly compliment feature lighting and chandeliers without causing glare.

Commercial applications

Suitable locations include hotels, offices, bars, shops, restaurants hospitals and medical centres.

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET
INSTALLATION instructions
Lumens (lm)
1400
Daylight HArvesting
No
Colour Temperature (K)
4000K
Dimmable
Dimmable-DALI
WATTAGE (W)
18W
Emergency
Emergency
WEIGHT (KG)
.40kg
Microwave
No
Beam Angle
110°
On-Off Sensor
No
CRI
>80
Input Voltage
Dimensions (m
225Ø x 32mm (cut out 205mm Ø)
Windage
Efficiency (LM/W)
REPLACEMENT FOR
2 x 26W PL
IP
IP20
Product Type
Downlights
Working Environment
-20°C → 40°C
Rated Lifetime (Hours)
25000
L70 Rating
OTHER
