Ellipse 12" 24W Downlight Natural (cut out 275-285mm Ø)

EL1224ED2N
PRODUCT DATA
LUMENS (lm)
1800
lm
DIMMABLE
WATTAGE (W)
24W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
Emergency
WEIGHT (kg)
.80kg
MICROWAVE
BEAM ANGLE
110°
WINDAGE
CRI
>80
REPLACEMENT FOR
2 x 26W Plor 28W 2D CFL
DIMENSIONS (mm)
295Ø x 32mm (cut out 280mm Ø)
PRODUCT TYPE
Downlights
EFFICIENCY (lm/w)
RATED LIFETIME (hrs)
25000
IP
IP20
WORKING ENVIRONMENT
-20°C → 25°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
KEY FEATURES
  • ‍Sparkling light quality
  • 110° beam angle
  • 12W, 18W or 24W options
  • Driverless wire directly into the unit
  • Low profile design
  • 3000K and 4000K colour temperature available
  • 2 Year Warranty*
Commercial applications

Suitable locations include hotels, offices, bars, shops, restaurants hospitals and medical centres.

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

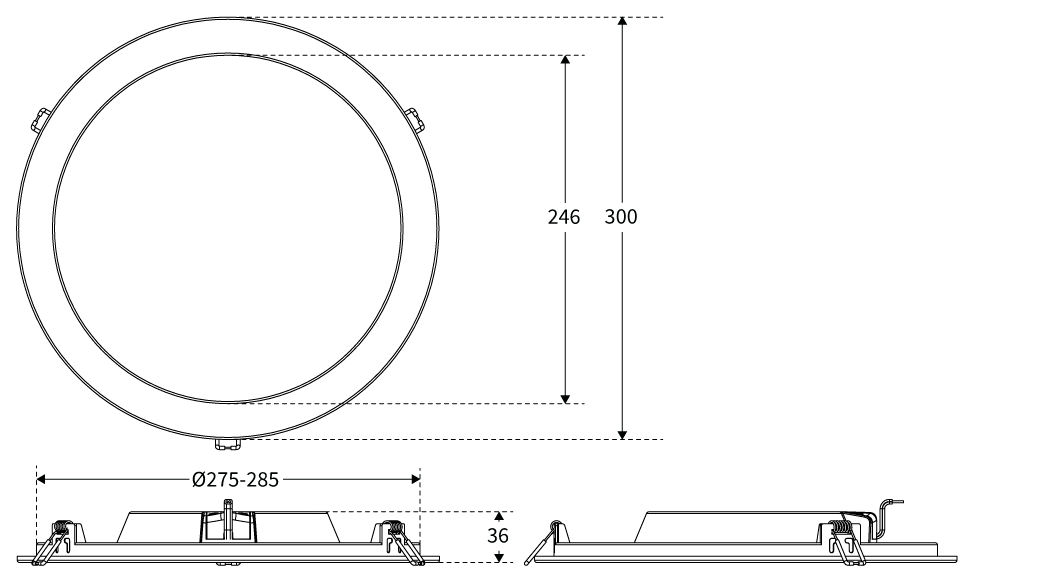

DIMENSIONS

Ellipse 12" 24W Downlight Natural (cut out 275-285mm Ø)

Ellipse Downlight
Lumen output
Lumen output
Beam Angle
Beam Angle
Colour Temperature
Colour Temperature
KEy Features
  • ‍Sparkling light quality
  • 110° beam angle
  • 12W, 18W or 24W options
  • Driverless wire directly into the unit
  • Low profile design
  • 3000K and 4000K colour temperature available
  • 2 Year Warranty*
Commercial applications

Suitable locations include hotels, offices, bars, shops, restaurants hospitals and medical centres.

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
1800
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
24W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
Emergency
WEIGHT (kg)
.80kg
MICROWAVE
BEAM ANGLE
110°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
295Ø x 32mm (cut out 280mm Ø)
PRODUCT TYPE
Downlights
EFFICIENCY (lm/w)
RATED LIFETIME (hrs)
25000
IP-RATING
IP20
WORKING ENVIRONMENT
-20°C → 25°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
2
ON/OFF SENSOR

Also available in this range
