Barracuda 2ft 18W 3CCT

EL2BNC3
PRODUCT DATA
LUMENS (lm)
2400
lm
DIMMABLE
WATTAGE (W)
18W
COLOUR TEMPERATURE (K)
4000/5000/6500K
EMERGENCY
WEIGHT (kg)
1kg
MICROWAVE
BEAM ANGLE
100° x 120°
WINDAGE
CRI
>80
REPLACEMENT FOR
Twin 2ft T5/T8 2x18W Tube
DIMENSIONS (mm)
650x85x80mm
PRODUCT TYPE
Non-corrosives
EFFICIENCY (lm/w)
133lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
66
IK
08
HOUSING COLOUR
Grey
WORKING ENVIRONMENT
-20°C to 40°C
WARRANTY
5
L70 RATING (hrs)
>80,000hrs
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The 2ft Barracuda features three selectable option outputs at the point of installation via a switch on the driver. The product is lightweight and incredibly robust with stainless steel clips supplied. This product can be fitted in a wide range of industrial and commercial applications and it’s IP66 and IK08 ratings will ensure that it works in extreme environments.

Commercial applications

Public areas, workshops, warehouses, carparks and food preparation areas

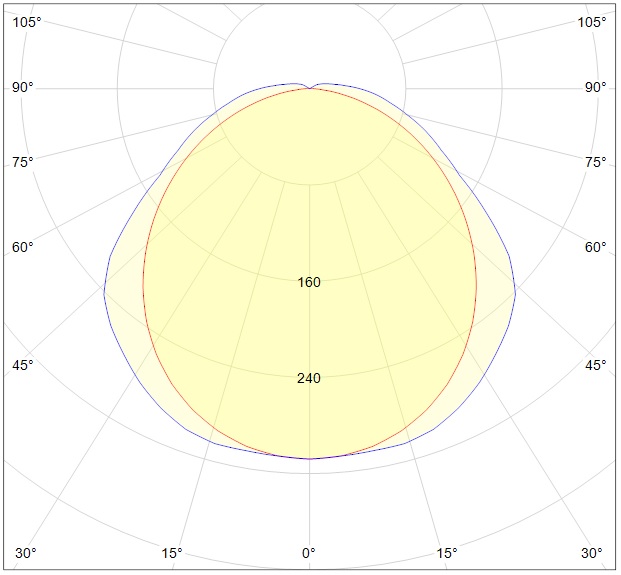

POLAR CURVE DIAGRAM
Polar Curve Image

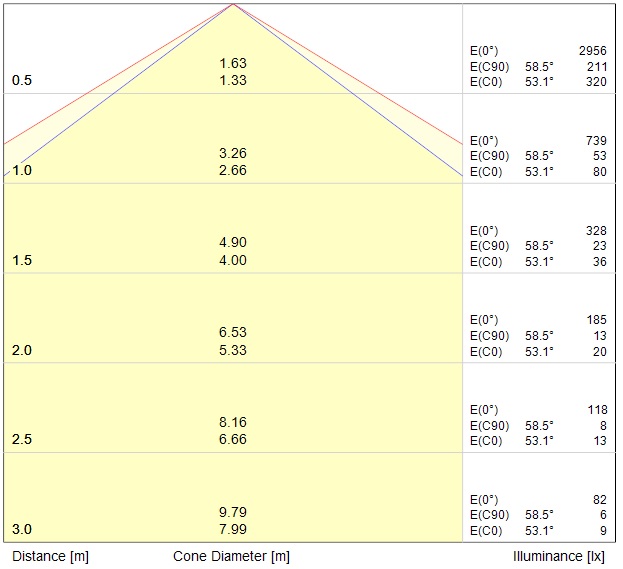

CONE DIAGRAM
Cone Diagram

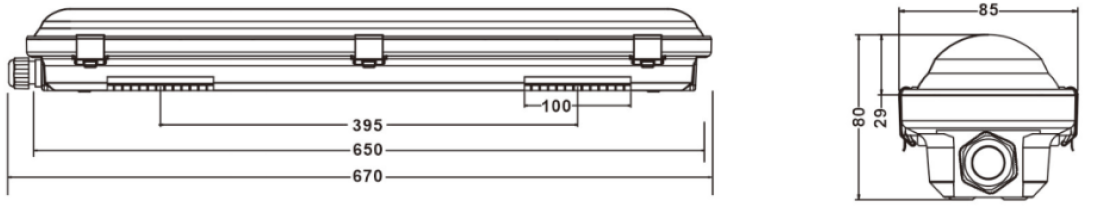

DIMENSIONS
Barracuda Power and Colour Select Non-Corrosive Linear Fitting
Lumen output
Lumen output
Colour Temperature
Colour Temperature
IP Rating
IP Rating
KEy Features

The 2ft Barracuda features three selectable option outputs at the point of installation via a switch on the driver. The product is lightweight and incredibly robust with stainless steel clips supplied. This product can be fitted in a wide range of industrial and commercial applications and it’s IP66 and IK08 ratings will ensure that it works in extreme environments.

Commercial applications

Public areas, workshops, warehouses, carparks and food preparation areas

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
2400
LUMEN OUTPUT RANGE (lm)
2400LM
DIMMABLE
WATTAGE (W)
18W
COLOUR TEMPERATURE (K)
4000/5000/6500K
EMERGENCY
WEIGHT (kg)
1kg
MICROWAVE
BEAM ANGLE
100° x 120°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
650x85x80mm
PRODUCT TYPE
Non-corrosives
EFFICIENCY (lm/w)
133lm/W
RATED LIFETIME (hrs)
50,000hrs
IP-RATING
66
IK-RATING
08
WORKING ENVIRONMENT
-20°C to 40°C
L70 RATING (hrs)
>80,000hrs
DAYLIGHT HARVESTING
WARRANTY
5
HOUSING COLOUR
Grey
ON/OFF SENSOR
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
W
lm
