Barracuda Select 4ft 20-35W with Microwave ON/OFF sensor

EL4BNCM
PRODUCT DATA
LUMENS (lm)
4550
lm
DIMMABLE
WATTAGE (W)
20W-35W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
1.8kg
MICROWAVE
Microwave
BEAM ANGLE
160°
WINDAGE
CRI
>80
REPLACEMENT FOR
Single/Twin 4ft T8 Tube
DIMENSIONS (mm)
1220x100x82mm
PRODUCT TYPE
Non-corrosives
EFFICIENCY (lm/w)
up to 145lm/W
RATED LIFETIME (hrs)
50,000hrs
IP
66
IK
HOUSING COLOUR
WORKING ENVIRONMENT
-30°C to 40°C
WARRANTY
5
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
On-off sensor
SELECTABLE SETTINGS
WATTAGE
LUMENS
20
W
2900
lm
25
W
3500
lm
30
W
4050
lm
35
W
4550
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES

The 4ft Barracuda Select with Microwave ON/OFF sensor is lightweight and strong with anti-tamper, stainless steel clips and screws supplied. This product can be fitted in a wide range of industrial and commercial applications as its IP66 and IK08 ratings will ensure that it works in extreme environments.

Commercial applications

Public areas, workshops, warehouses, carparks and food preparation areas

POLAR CURVE DIAGRAM
Polar Curve Image

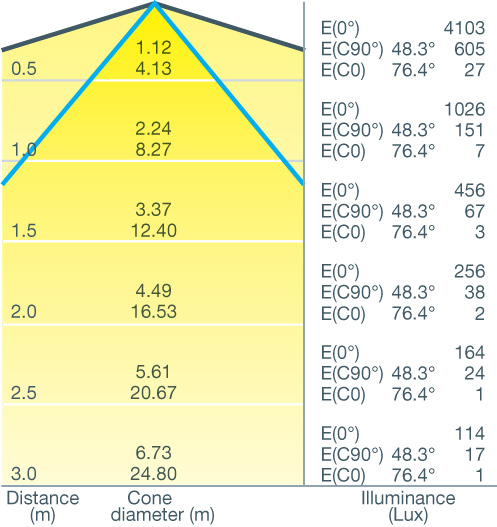

CONE DIAGRAM
Cone Diagram

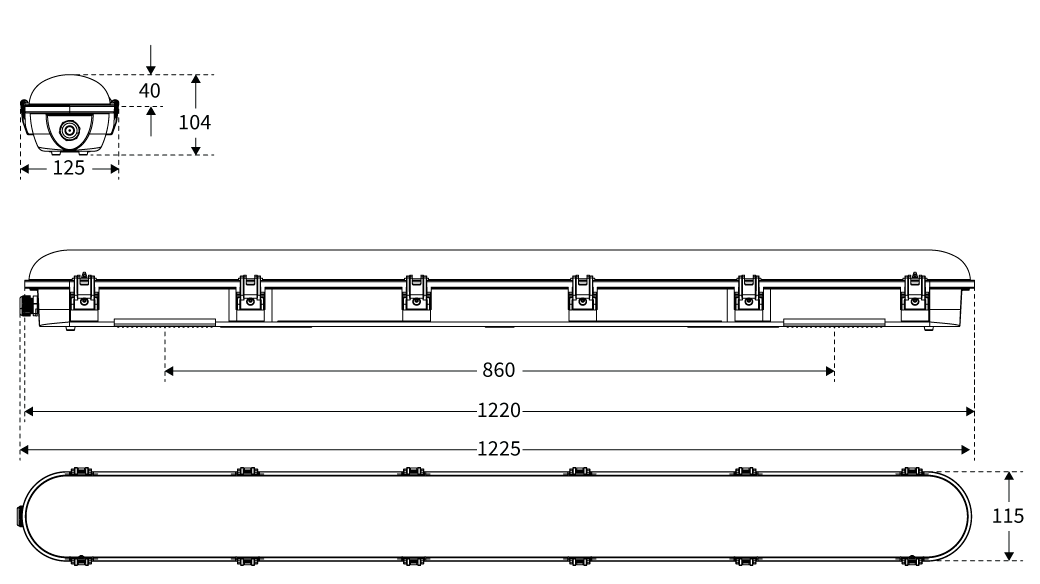

DIMENSIONS

Barracuda Select 4ft 20-35W with Microwave ON/OFF sensor

Barracuda Select Non-Corrosive Linear Fitting
Lumen Range
Lumen Range
Colour Temperature
Colour Temperature
IP Rating
IP Rating
Microwave
Microwave
KEy Features

The 4ft Barracuda Select with Microwave ON/OFF sensor is lightweight and strong with anti-tamper, stainless steel clips and screws supplied. This product can be fitted in a wide range of industrial and commercial applications as its IP66 and IK08 ratings will ensure that it works in extreme environments.

Commercial applications

Public areas, workshops, warehouses, carparks and food preparation areas

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
info alert icon
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
4550
LUMEN OUTPUT RANGE (lm)
2900-4550LM
DIMMABLE
WATTAGE (W)
20W-35W
COLOUR TEMPERATURE (K)
4000K
EMERGENCY
WEIGHT (kg)
1.8kg
MICROWAVE
Microwave
BEAM ANGLE
160°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
1220x100x82mm
PRODUCT TYPE
Non-corrosives
EFFICIENCY (lm/w)
up to 145lm/W
RATED LIFETIME (hrs)
50,000hrs
IP-RATING
66
IK-RATING
WORKING ENVIRONMENT
-30°C to 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
5
HOUSING COLOUR
ON/OFF SENSOR
On-off sensor
WATTAGE
LUMENS
20
W
2900
lm
25
W
3500
lm
30
W
4050
lm
35
W
4550
lm
W
lm
W
lm
W
lm
W
lm
