Barracuda 5ft 65W 8450 lumens

EL1565BNC
PRODUCT DATA
LUMENS (lm)
8450
lm
DIMMABLE
WATTAGE (W)
65W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
2.1kg
MICROWAVE
BEAM ANGLE
160°
WINDAGE
CRI
>80
REPLACEMENT FOR
Twin T5/T8 2x70W 6ft
DIMENSIONS (mm)
1560x100x82mm
PRODUCT TYPE
Non-corrosives
EFFICIENCY (lm/w)
130
RATED LIFETIME (hrs)
50,000hrs
IP
66
WORKING ENVIRONMENT
-40°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
ON/OFF SENSOR
KEY FEATURES

The 5ft high output Barracuda is lightweight and strong with anti-tamper, stainless steel clips and screws supplied. This product can be fitted in a wide range of industrial and commercial applications including over 6m heights as its IP66 and IK08 ratings will ensure that it works in extreme environments.

Commercial applications

Public areas, workshops, warehouses, carparks and food preperation areas

POLAR CURVE DIAGRAM
Polar Curve Image

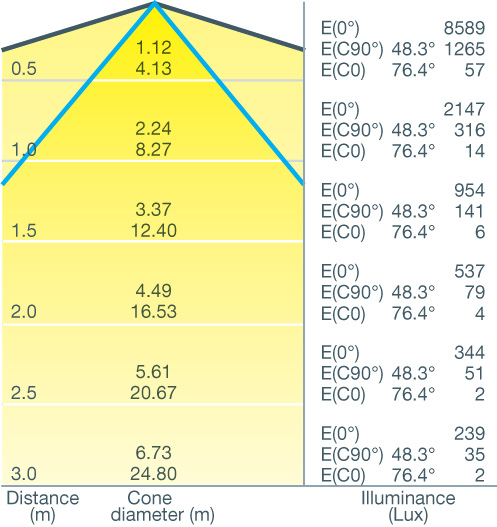

CONE DIAGRAM
Cone Diagram
DIMENSIONS

Barracuda 5ft 65W 8450 lumens

KEy Features

The 5ft high output Barracuda is lightweight and strong with anti-tamper, stainless steel clips and screws supplied. This product can be fitted in a wide range of industrial and commercial applications including over 6m heights as its IP66 and IK08 ratings will ensure that it works in extreme environments.

Commercial applications

Public areas, workshops, warehouses, carparks and food preperation areas

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
Notice for Microsoft Edge users
INSTALLATION instructions
LUMEN OUTPUT (lm)
8450
LUMEN OUTPUT RANGE (lm)
DIMMABLE
WATTAGE (W)
65W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
2.1kg
MICROWAVE
BEAM ANGLE
160°
WINDAGE
CRI
>80
REPLACEMENT FOR
DIMENSIONS (mm)
1560x100x82mm
PRODUCT TYPE
Non-corrosives
EFFICIENCY (lm/w)
130
RATED LIFETIME (hrs)
50,000hrs
IP-RATING
66
WORKING ENVIRONMENT
-40°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
WARRANTY
5
ON/OFF SENSOR
