Barracuda 5ft 25W 3250 lumens with emergency function and microwave ON/OFF sensor

EL1525BNCEM
PRODUCT DATA
LUMENS (lm)
3250
DIMMABLE
WATTAGE (W)
25W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
Emergency
WEIGHT (kg)
2.7kg
MICROWAVE
Microwave
BEAM ANGLE
160°
WINDAGE
CRI
>80
REPLACEMENT FOR
Single T5/T8 1x54W 5ft
DIMENSIONS (mm)
1560x100x82mm
PRODUCT TYPE
Non-corrosives
EFFICIENCY (lm/w)
130
RATED LIFETIME (hrs)
50,000hrs
IP
66
WORKING ENVIRONMENT
-5°C - 30°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
KEY FEATURES

The 5ft 25W Barracuda with emergency function and microwave ON/OFF sensor is lightweight and strong with anti-tamper, stainless steel clips and screws supplied. This product can be fitted in a wide range of industrial and commercial applications as its IP66 and IK08 ratings will ensure that it works in extreme environments. The microwave ON/OFF sensor allow the luminaire to be switched off when it is not needed saving energy, money and the life of the unit. It is fully compliant with emergency lighting regulation ensuring that when there is a power outage, it gives sufficient light for 3 hours from a battery unit.

Commercial applications

Public areas, workshops, warehouses, carparks and food preperation areas

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

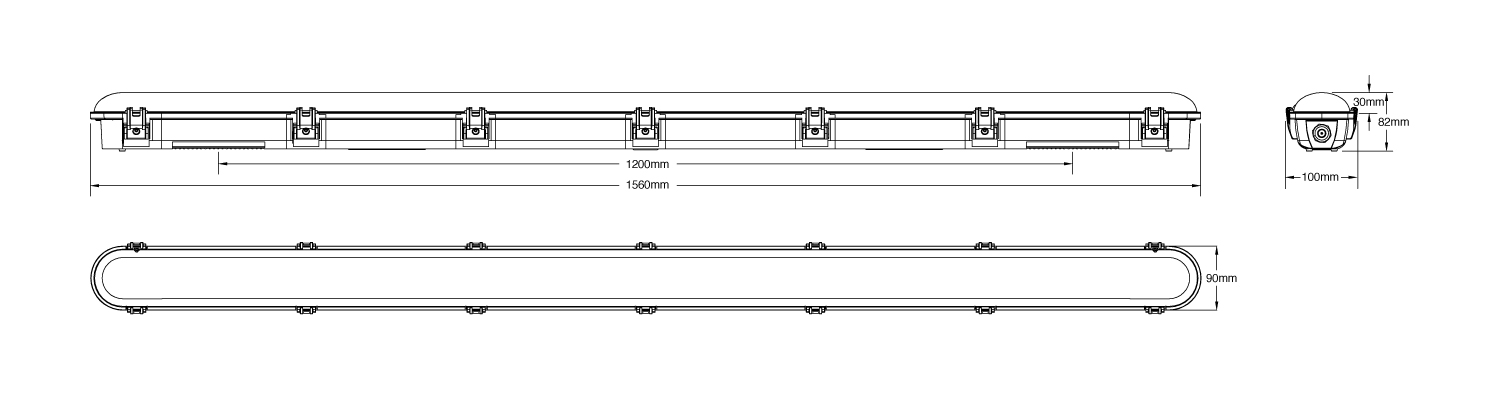

DIMENSIONS

Barracuda 5ft 25W 3250 lumens with emergency function and microwave ON/OFF sensor

lumen
lumen
3250
colour temp
colour temp
5000K
IP rating
IP rating
66
microwave
microwave
emergency
emergency
KEy Features

The 5ft 25W Barracuda with emergency function and microwave ON/OFF sensor is lightweight and strong with anti-tamper, stainless steel clips and screws supplied. This product can be fitted in a wide range of industrial and commercial applications as its IP66 and IK08 ratings will ensure that it works in extreme environments. The microwave ON/OFF sensor allow the luminaire to be switched off when it is not needed saving energy, money and the life of the unit. It is fully compliant with emergency lighting regulation ensuring that when there is a power outage, it gives sufficient light for 3 hours from a battery unit.

Commercial applications

Public areas, workshops, warehouses, carparks and food preperation areas

PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
INSTALLATION instructions
LUMENS (lm)
3250
DIMMABLE
WATTAGE (W)
25W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
Emergency
WEIGHT (kg)
2.7kg
MICROWAVE
Microwave
BEAM ANGLE
160°
WINDAGE
CRI
>80
REPLACEMENT FOR
Single T5/T8 1x54W 5ft
DIMENSIONS (mm)
1560x100x82mm
PRODUCT TYPE
Non-corrosives
EFFICIENCY (lm/w)
130
RATED LIFETIME (hrs)
50,000hrs
IP
66
WORKING ENVIRONMENT
-5°C - 30°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
