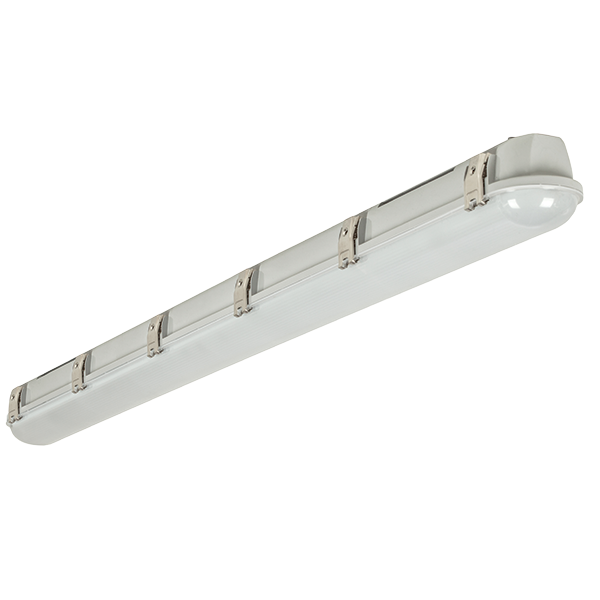

Barracuda 4ft 36W 4680 lumens

EL1236BNC
PRODUCT DATA
LUMENS (lm)
4680
DIMMABLE
WATTAGE (W)
36W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
1.9kg
MICROWAVE
BEAM ANGLE
160°
WINDAGE
CRI
>80
REPLACEMENT FOR
Twin T5/T8 2x28W 4ft
DIMENSIONS (mm)
1220x100x82mm
PRODUCT TYPE
Non-corrosives
EFFICIENCY (lm/w)
130
RATED LIFETIME (hrs)
50,000hrs
IP
66
WORKING ENVIRONMENT
-40°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING
KEY FEATURES

The 4ft Barracuda is lightweight and strong with anti-tamper, stainless steel clips and screws supplied. This product can be fitted in a wide range of industrial and commercial applications as its IP66 and IK08 ratings will ensure that it works in extreme environments.

Commercial applications

Public areas, workshops, warehouses, carparks and food preperation areas

POLAR CURVE DIAGRAM
Polar Curve Image
CONE DIAGRAM
Cone Diagram

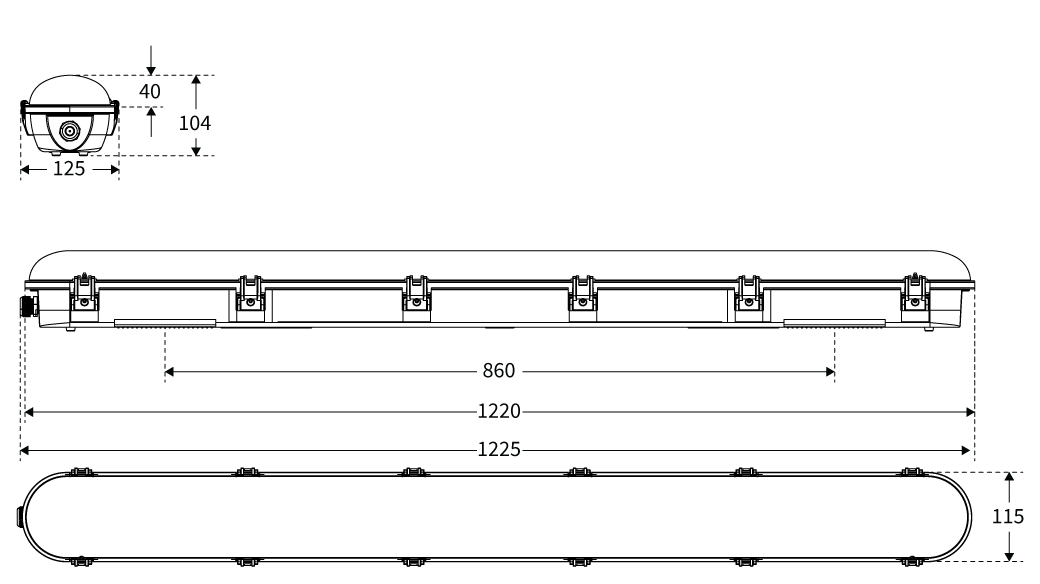

DIMENSIONS
Home > All Products > Barracuda Non-Corossive Linear Fitting

Barracuda 4ft 36W 4680 lumens

Lumen
Lumen
4680
Colour Temp
Colour Temp
5000K
IP rating
IP rating
66
IP rating
IP rating
66
KEy Features

The 4ft Barracuda is lightweight and strong with anti-tamper, stainless steel clips and screws supplied. This product can be fitted in a wide range of industrial and commercial applications as its IP66 and IK08 ratings will ensure that it works in extreme environments.

Commercial applications

Public areas, workshops, warehouses, carparks and food preperation areas

DOWNLOADS
DIMENSIONS
DATA
PHOTOMETRIC (LDT) FILES
PRODUCT DATA SHEET PDF
INSTALLATION instructions
LUMENS (lm)
4680
DIMMABLE
WATTAGE (W)
36W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
WEIGHT (kg)
1.9kg
MICROWAVE
BEAM ANGLE
160°
WINDAGE
CRI
>80
REPLACEMENT FOR
Twin T5/T8 2x28W 4ft
DIMENSIONS (mm)
1220x100x82mm
PRODUCT TYPE
Non-corrosives
EFFICIENCY (lm/w)
130
RATED LIFETIME (hrs)
50,000hrs
IP
66
WORKING ENVIRONMENT
-40°C - 40°C
L70 RATING (hrs)
DAYLIGHT HARVESTING

Also available in this range

Product code
Product name
Wattage
Lumens
Colour temp.
Replacement for
EL1525BNC
Barracuda 5ft 25W 3250 lumens
25W
3250
5000K
Single T5/T8 1x54W 5ft
EL1525BNCD
Barracuda 5ft 25W 3250 lumens dali-dimmable
25W
3250
5000K
Single T5/T8 1x54W 5ft
EL1525BNCDE
Barracuda 5ft 25W 3250 lumens dali-dimmable with emergency function
25W
3250
5000K
Single T5/T8 1x54W 5ft
EL1525BNCE
Barracuda 5ft 25W 3250 lumens with emergency function
25W
3250
5000K
Single T5/T8 1x54W 5ft
EL1525BNCEM
Barracuda 5ft 25W 3250 lumens with emergency function and microwave ON/OFF sensor
25W
3250
5000K
Single T5/T8 1x54W 5ft
EL1525BNCM
Barracuda 5ft 25W 3250 lumens with microwave ON/OFF sensor
25W
3250
5000K
Single T5/T8 1x54W 5ft
EL1236BNC
Barracuda 4ft 36W 4680 lumens
36W
4680
5000K
Twin T5/T8 2x28W 4ft
EL1236BNCD
Barracuda 4ft 36W 4680 lumens dali-dimmable
36W
4680
5000K
Twin T5/T8 2x28W 4ft
EL1236BNCDE
Barracuda 4ft 36W 4680 lumens dali-dimmable with emergency function
36W
4680
5000K
Twin T5/T8 2x28W 4ft
EL1236BNCE
Barracuda 4ft 36W 4680 lumens with emergency function
36W
4680
5000K
Twin T5/T8 2x28W 4ft
EL1236BNCEM
Barracuda 4ft 36W 4680 lumens with emergency function and microwave ON/OFF sensor
36W
4680
5000K
Twin T5/T8 2x28W 4ft
EL1236BNCM
Barracuda 4ft 36W 4680 lumens with microwave ON/OFF sensor
36W
4680
5000K
Twin T5/T8 2x28W 4ft
EL1554BNC
Barracuda 5ft 54W 7020 lumens
54W
7020
5000K
Twin T5/T8 2x54W 5ft
EL1554BNCD
Barracuda 5ft 54W 7020 lumens dali-dimmable
54W
7020
5000K
Twin T5/T8 2x54W 5ft
EL1554BNCDE
Barracuda 5ft 54W 7020 lumens dali-dimmable and emergency function
54W
7020
5000K
Twin T5/T8 2x54W 5ft
EL1554BNCE
Barracuda 5ft 54W 7020 lumens with emergency function
54W
7020
5000K
Twin T5/T8 2x54W 5ft
EL1554BNCEM
Barracuda 5ft 54W 7020 lumens with emergency function and microwave ON/OFF sensor
54W
7020
5000K
Twin T5/T8 2x54W 5ft
EL1554BNCM
Barracuda 5ft 54W 7020 lumens with microwave ON/OFF sensor
54W
7020
5000K
Twin T5/T8 2x54W 5ft
EL1565BNC
Barracuda 5ft 65W 8450 lumens
65W
8450
5000K
Twin T5/T8 2x70W 6ft
EL1565BNCD
Barracuda 5ft 65W 8450 lumens dali-dimmable
65W
8450
5000K
Twin T5/T8 2x70W 6ft
EL1565BNCDE
Barracuda 5ft 65W 8450 lumens dali-dimmable with emergency function
65W
8450
5000K
Twin T5/T8 2x70W 6ft
EL1565BNCE
Barracuda 5ft 65W 8450 lumens with emergency function
65W
8450
5000K
Twin T5/T8 2x70W 6ft
EL1565BNCEM
Barracuda 5ft 65W 8450 lumens with emergency function and microwave ON/OFF sensor
65W
8450
5000K
Twin T5/T8 2x70W 6ft
EL1565BNCM
Barracuda 5ft 65W 8450 lumens with microwave ON/OFF sensor
65W
8450
5000K
Twin T5/T8 2x70W 6ft
