Atlas Low/High Bay 150W Emergency 22500 lumens
EL150ALBE
PRODUCT DATA
LUMENS (lm)
22500
lm
DIMMABLE
WATTAGE (W)
150W
COLOUR TEMPERATURE (K)
5000K
EMERGENCY
Emergency
WEIGHT (kg)
3.33kg
MICROWAVE
BEAM ANGLE
110°x120°
WINDAGE
CRI
>80
REPLACEMENT FOR
>400W MH/SON
DIMENSIONS (mm)
309 x 453 x 67mm
PRODUCT TYPE
Low bays
EFFICIENCY (lm/w)
150lm/W
RATED LIFETIME (hrs)
35,000hrs
IP
54
IK
10
HOUSING COLOUR
WORKING ENVIRONMENT
5°C - 35°C
WARRANTY
5
L70 RATING (hrs)
>80000
DAYLIGHT HARVESTING
ON/OFF SENSOR
SELECTABLE SETTINGS
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
WATTAGE
LUMENS
W
lm
W
lm
W
lm
W
lm
KEY FEATURES
Robust technology and incredible efficiency combine together in the Atlas Low/High Bay. Easy to install with a lightweight, low-profile, anti-glare design, the Atlas Low/High Bay is ideal for a wide range of industrial applications.
Commercial applications
Warehouses, factories, sports arenas, sports halls, retail outlets.

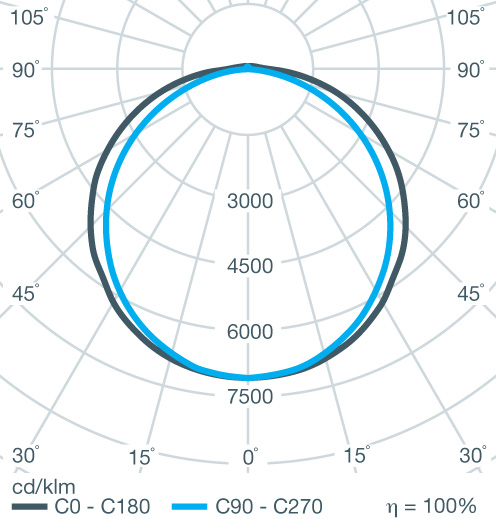

POLAR CURVE DIAGRAM
CONE DIAGRAM

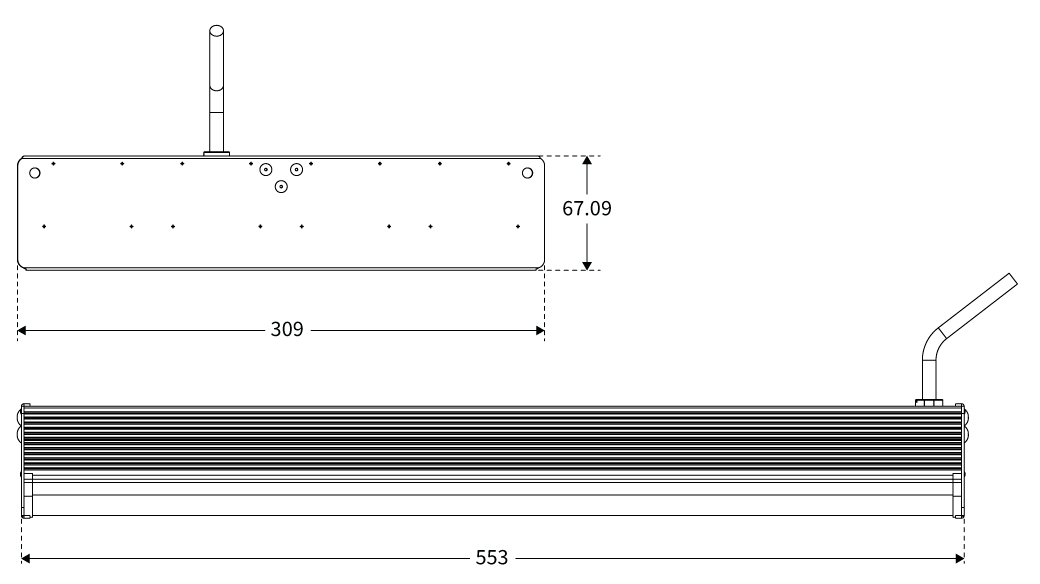

DIMENSIONS
